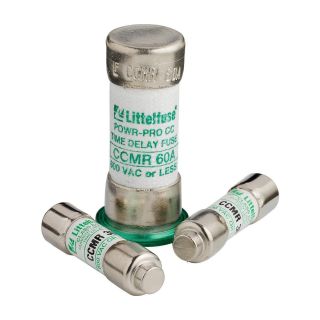

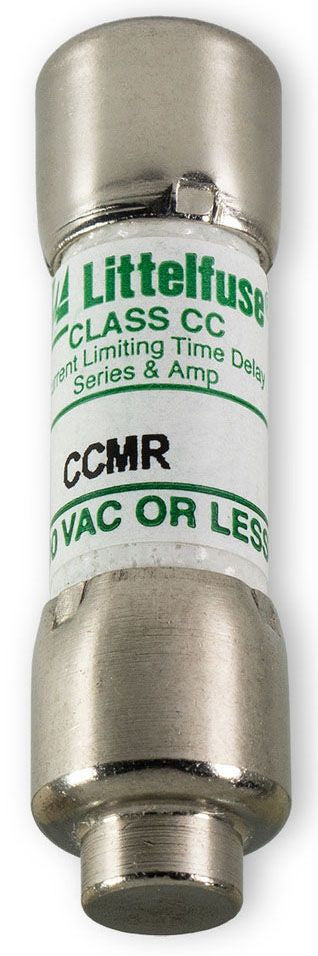

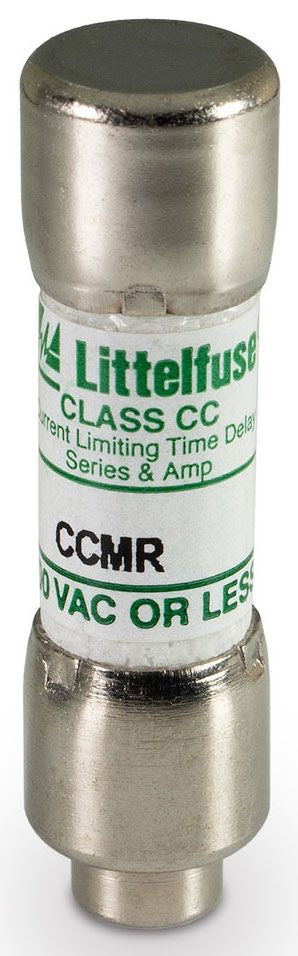

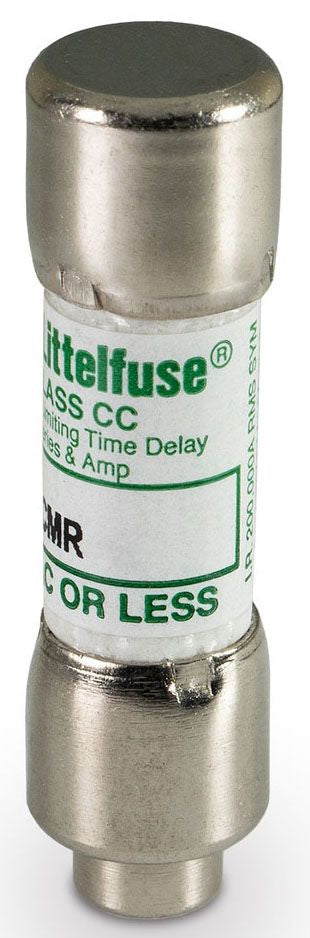

Littelfuse CCMR001.TXP Time Delay Fuse 1 A 600 VAC/250 VDC 20/200 kA Interrupt Class CC

Product Description

The Littelfuse CCMR001.TXP is a time delay fuse designed for reliable protection in electrical systems. This fuse can handle up to one ampere of current and operates at 600 volts alternating current or 250 volts direct current. With a dual-element design, it is tailored for space-saving protection of motor circuits up to forty horsepower.

• Time delay feature allows for handling inrush currents.
• Rated for a high interrupting capacity of 20/200 kA.
• Compact cartridge body for easy installation in electrical panels.

Product Highlights

The Littelfuse CCMR001.TXP provides current limiting capabilities that help protect sensitive electrical components. It is ideal for applications requiring reliable overcurrent protection.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: CCMR001.TXP

Technical Specifications

• Voltage Rating: 600 VAC / 250 VDC
• Amperage Rating: 1 A
• Interrupting Rating: 20/200 kA
• Body Size: 0.41 inches Diameter x 1.5 inches Length
• Terminal Type: Ferrule
• Frequency Rating: 50/60 Hz
• Class: CC
• Country of Origin: Mexico
