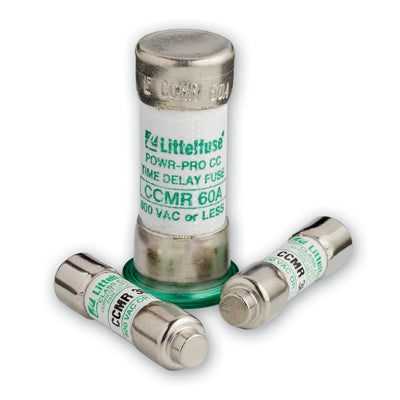

Littelfuse CCMR.600TXP Slo-Blo Time Delay Fuse 600V 0.6 Amp Class CC Dual Element

Product Description

The Littelfuse CCMR.600TXP fuse is designed for motor branch circuit protection, specifically engineered to handle applications up to 40 HP with a dual-element, time-delay feature. This fuse is optimized for space-saving and offers superior protection with its current limiting characteristics.

• Specifically designed for motor circuit up to 40 HP
• Time-delay feature for gradual circuit interruption
• Compact, space-saving design ideal for panel mounting

Product Highlights

This Littelfuse CCMR series fuse offers enhanced safety and reliability in protecting electro-mechanical apparatus from overcurrents. It ensures a reliable disconnection up to 200,000 amperes interrupt capacity at 600VAC.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: CCMR.600TXP

Technical Specifications

• Amperage Rating: 0.6 A
• Voltage Rating: 600 VAC/250 VDC
• Interrupt Capacity: 200 kA at 600 VAC
• Body Size: 0.41 inches Diameter x 1.5 inches Length
• Mounting Type: Holder
• Terminal Type: Ferrule
• Frequency Rating: 50/60 Hz
• Standards/Approvals: UL 248-4, CSA LR29862, CE Certified
