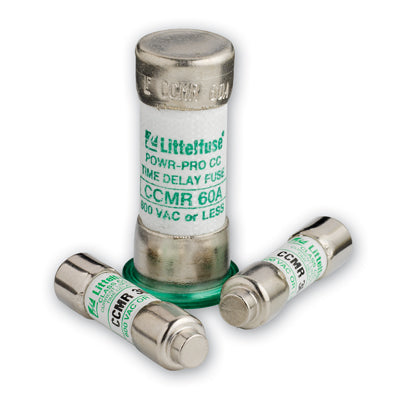

Littelfuse CCMR.500TXP Time Delay Fuse 600V Class CC

Product Description

Littelfuse CCMR.500TXP represents a robust solution for motor and circuit protection, incorporating a time-delay feature to accommodate momentary current spikes without opening. This fuse is designed to safeguard motors up to 40 horsepower, providing reliable operation and protection.

• Space-efficient design suitable for compact setups.
• Exceptional current-limiting capacity for enhanced safety.
• Dual-element construction offers dependable protection.

Product Highlights

Rated for both 600V AC and 250V DC, this fuse covers a broad range of applications, ensuring compatibility across various electrical setups. The product measures 0.41 inches in diameter by 1.5 inches in length, making it the most compact 60A Class CC fuse available in the market.

Product Information

Standard Information

• Brand: Littelfuse
• Series: POWR-GARD CCMR

Technical Specifications

• Amperage: 0.5 Amp
• Voltage Rating: 600 VAC / 250 VDC
• Interrupt Rating: 20/200 kA
• Frequency: 50/60 Hz
• Terminal Type: Ferrule
• Mounting Type: Holder Mount
• Body Type: Cartridge
• Element: Dual
• Dimensions: 0.41 in Dia x 1.5 in L
• Standards/Approvals: UL 248-4, CSA LR29862, CE Certified
