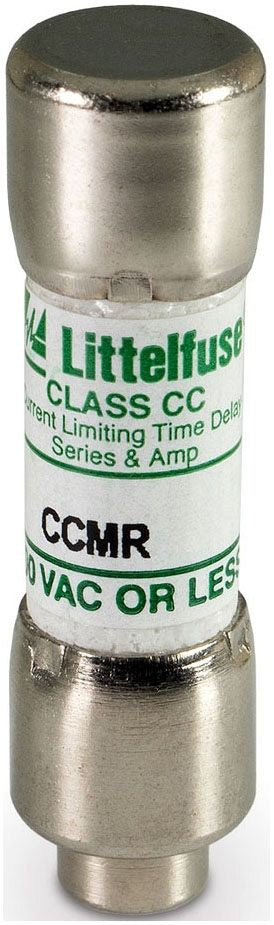

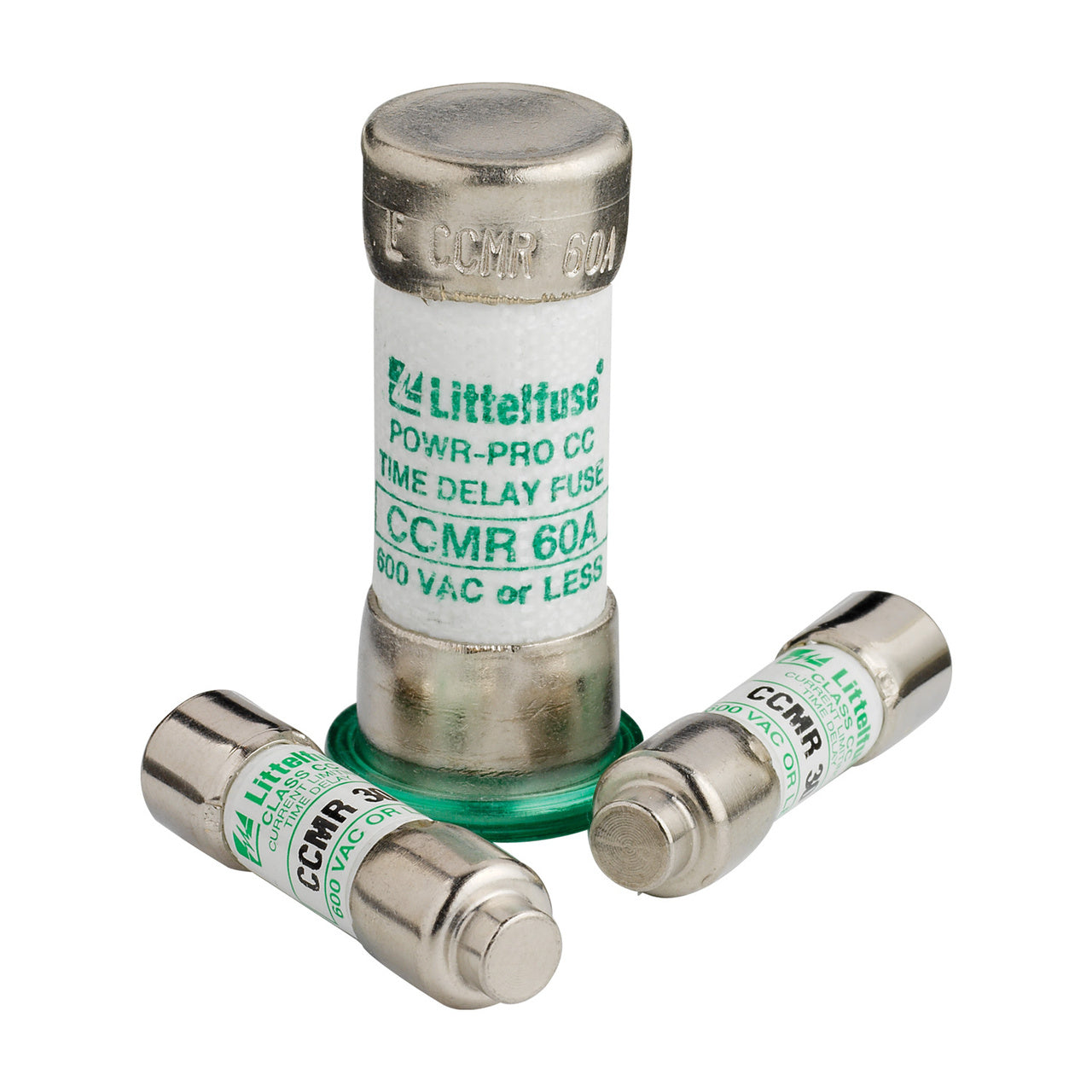

Littelfuse CCMR.500TXP LFSE CCMR.500TXP FUSE 600V T/D CLAS

Product Description

The Littelfuse CCMR.500TXP is a time-delay fuse designed for use in motor protection applications. This fuse is rated at 600 volts and can handle an amperage of 0.5 amps. Ideal for space-saving needs, the CCMR series provides optimal protection for motors up to forty horsepower. This fuse is designed to withstand the sustained starting currents typical of small motors, making it effective in branch circuits and high-demand scenarios.

• Ideal for motors up to 40 hp.
• Rated for 600V with a current rating of 0.5A.
• Class CC fuses are the most current-limiting for enhanced protection.

Product Highlights

Engineered for safety and efficiency, this fuse helps minimize damage due to short circuits, providing faster interruptions than traditional protective devices.

Product Information

Standard Information

• Brand: Littelfuse
• Manufacturer Part Number: CCMR.500TXP

Technical Specifications

• Type: Class CC
• Amperage: 0.5 Amp
• Voltage Rating: 600 VAC/250 VDC
• Interrupting Rating: 20/200 kA
• Body Diameter: 0.41 inches
• Body Length: 1.5 inches
• Terminal Type: Ferrule
• Approval Standards: UL 248-4, CSA, CE
