Product Description

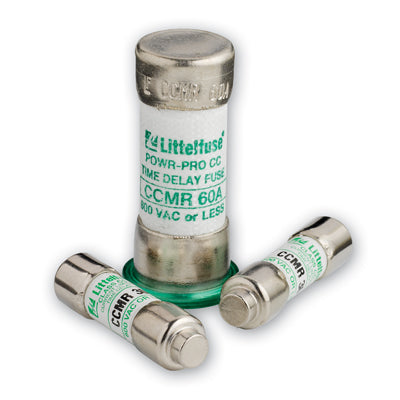

The Littelfuse CCMR.300TXP is a 0.3 amp, 600VAC/500VDC, slo-blow fuse. It provides reliable protection for motor circuits up to 40 HP. The CCMR series is designed to handle sustained starting currents of small motors.
- Mounting: Cartridge
- Amps: 0.300
- Volts AC: 600
Product Highlights
This fuse is ideal for space-saving protection of motor circuits. It offers Type II protection withstanding high interrupting ratings and provides superior current limiting capabilities.
Product Information
Standard Information
-
Brand: Littelfuse
-
Model: CCMR.300TXP
Technical Specifications
-
Amperage Rating: 0.3 A
-
Voltage Rating: 600 VAC/250 VDC
-
Interrupting Rating AC: 200000 A
-
Interrupting Rating DC: 20000 A
-
Mounting Type: Holder
-
Element: Dual
-
Body Size: 0.41 inches Dia x 1.5 inches L
-
Application: Motor and Motor Branch Circuit Protection Applications
-
Standards/Approvals: UL 248-4, E81895, CSA LR29862, CE Certified, PROP65
