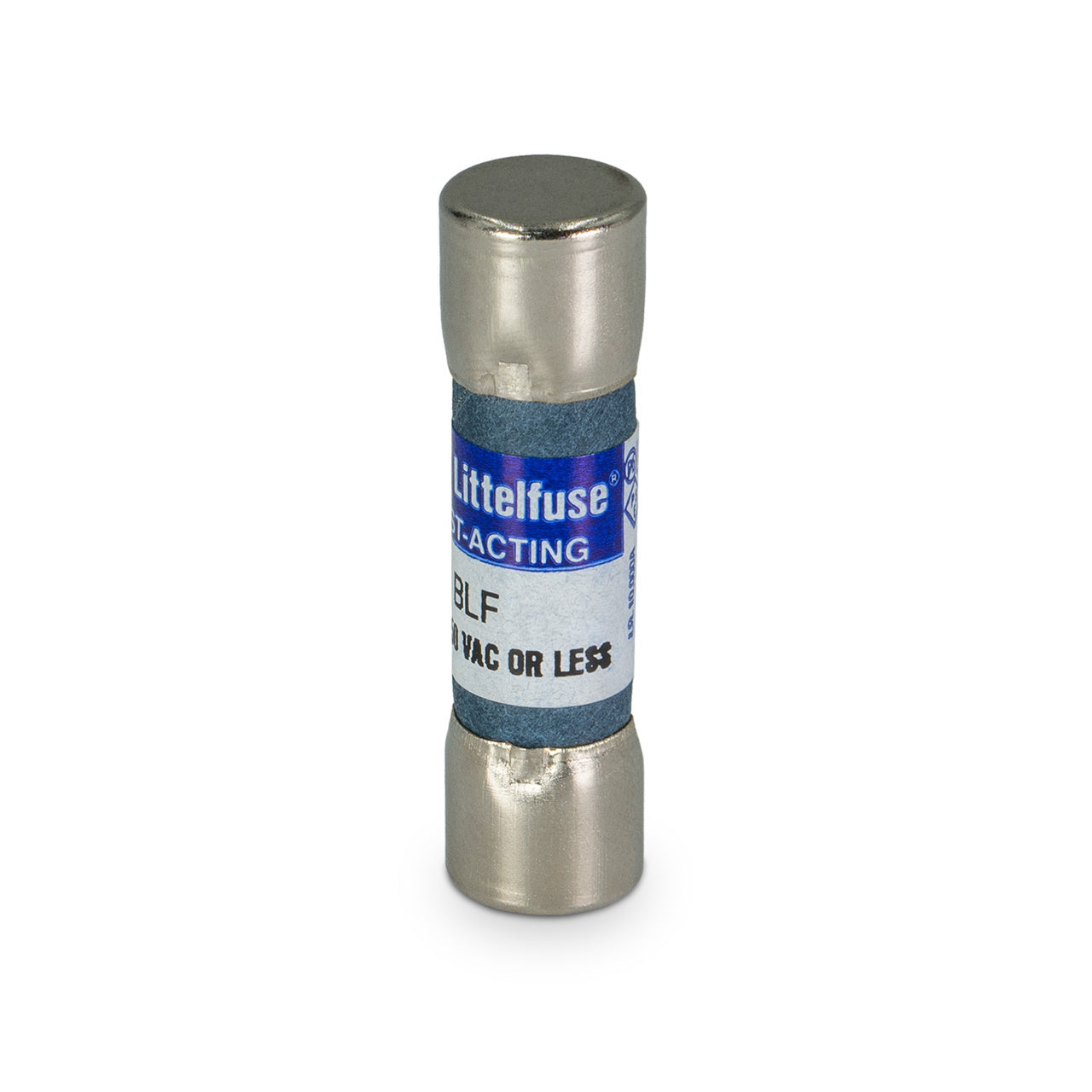

Littelfuse BLF009 FUS 250V F/A Midget 9A

Product Description

The Littelfuse BLF009 is a Midget fuse with an ampere rating of 9 and 250 V AC. It provides fast-acting protection in a compact Midget/5AG size. This fuse is suitable for use with fuse blocks, clips, or holders, specifically the LPSM Series PG Holder.

• Ampere rating of 9A
• Maximum AC voltage of 250V
• Fast-Acting (F) opening characteristic

Product Highlights

The Littelfuse BLF009 is a 250V, 9A midget fuse with a fast-acting opening, ideal for various circuit protection applications.

Product Information

Standard Information

• Brand: Littelfuse
• Manufacturer Part Number: BLF009

Technical Specifications

• Current Rating (Continuous) in Amps: 9
• Interrupting Rating: 10 kA @ 250 Vac
• Opening: Fast-Acting (F)
• Maximum AC Voltage (V): 250
• Size: Midget/5AG
• Family style: Midget Fuse
• Fuse Class: Midget/Class CC
• Indicating: No
• Interrupt Amperage: 10000
• Interrupt Voltage Type ACDC - 1: AC
• Interrupt Voltage: 250
• Mounting Method: Fuse Block / Clip / Holder
