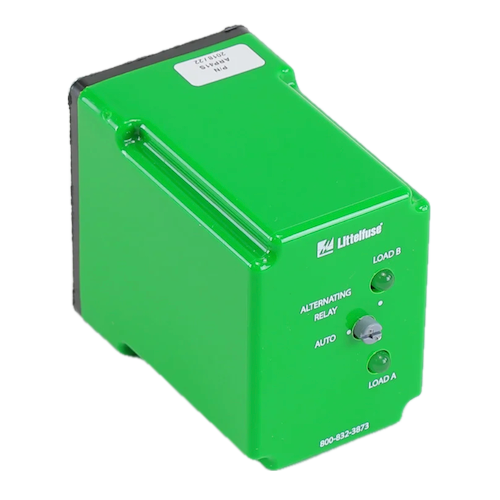

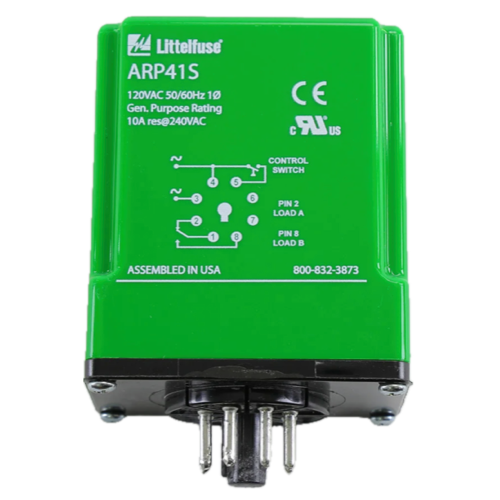

Littelfuse ARP41S Alternating Relay 120V SPDT

Product Description

The Littelfuse ARP41S is a high-performance alternating relay designed to ensure equal runtime for two motors in industrial settings. It operates with a 120VAC input and features an SPDT contact form. This relay is suitable for various applications where reliability and performance are critical.

• SPDT contact configuration allows control over two circuits with one input.
• Robust design with a durable housing ensures longevity under tough conditions.
• Visual indicator LEDs for real-time status updates.

Product Highlights

This alternating relay is engineered to work efficiently in systems requiring sequential motor operation. The device offers the flexibility of alternating operation or locking to one specific load. Equipped with a low-profile selector switch to prevent accidental adjustments and an industry-standard base for broad application compatibility.

Product Information

Standard Information

• Frequency: 50/60 Hz
• Temperature Range: -20 to 60 degrees Celsius

Technical Specifications

• Coil Voltage: 120 VAC
• Contact Rating: 10 A at 120/240 VAC, 28 VDC

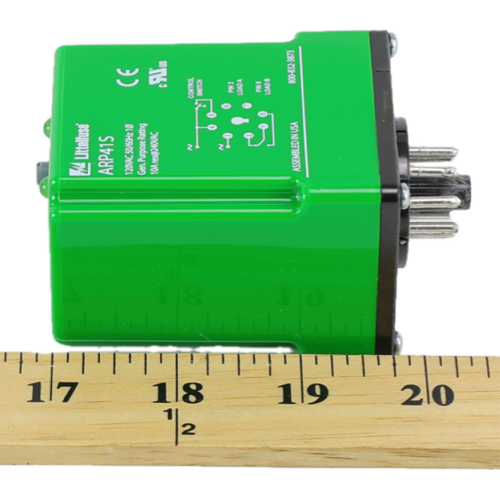

• Dimensions: 1.78 in W x 3.2 in D x 2.39 in H
• Mounting Type: Plug-In/Socket

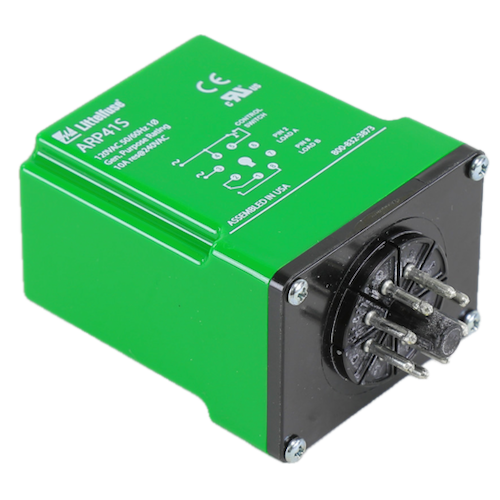

• Number of Pins: 8
• Approvals: CE Certified, UL Recognized
• Potential Health Risks: Contains nickel, known in State of California to cause cancer
