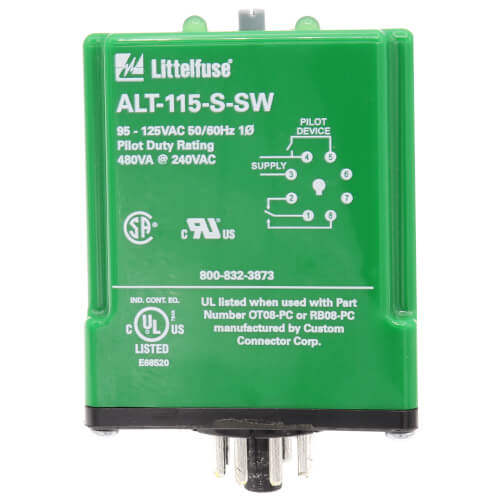

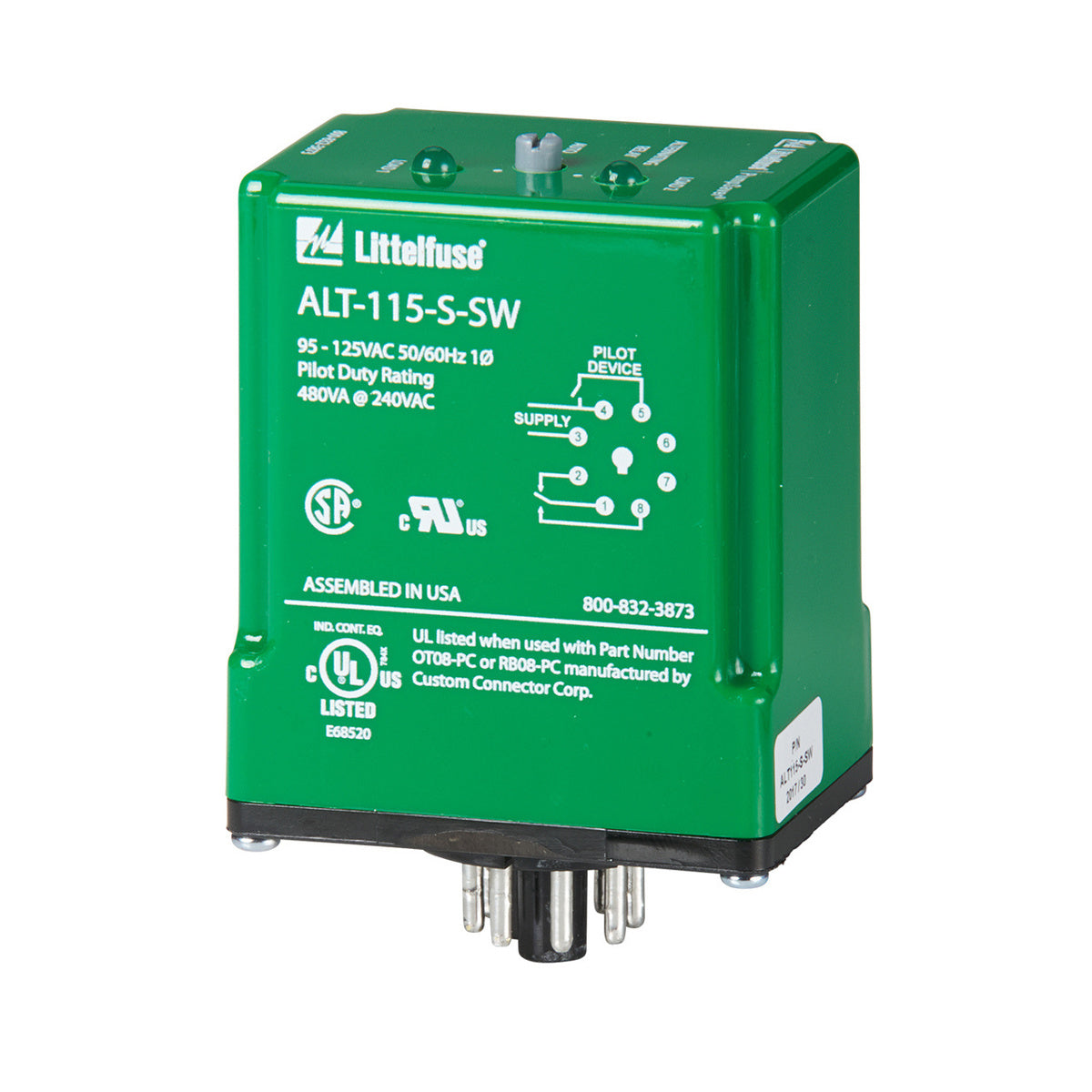

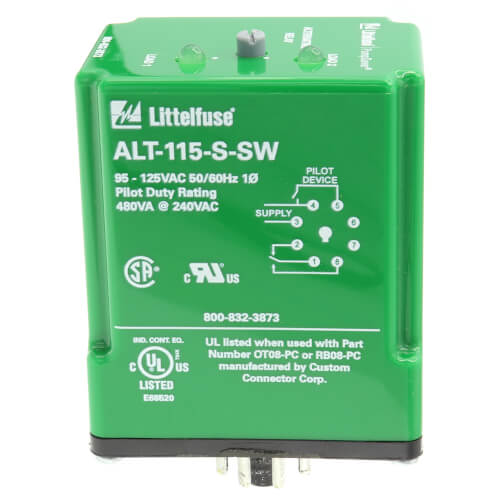

Littelfuse ALT115-S-SW Alternating Relay 95-125V 8-Pin

Product Description

The Littelfuse ALT115-S-SW alternating relay is designed for electrical applications needing precise control. Offering reliable performance, it alternates between two loads, making it useful in duplex pumping applications. The built-in switch allows for manual operation of a pump when needed, providing flexibility in maintenance and testing.

• Voltage range: 95-125V
• 8-pin configuration
• Durable construct

Product Highlights

This alternating relay is ideal for balancing the runtime of both pumps in duplex systems. It features a built-in debounce to prevent state changes due to momentary switch bounces. Suitable for industrial automation and power distribution, it ensures continuous operation with space-saving design.

Product Information

Standard Information

• Brand: Littelfuse
• Manufacturer: Littelfuse
• Country of Origin: Mexico
• Made in USA: No
• Mounting: Din Rail
• Special Features: 5YR WARR
• Standard: UL/CSA
• UPC: 079458991314
• GTIN: 00079458991314

Technical Specifications

• Catalog Number: ALT-115-S-SW
• Voltage Range: 95-125V
• Maximum Input Power: 5W
• Input Current Range: 40mA
• Input Impedance: 56k
• Output Form: SPDT
• Output Load Rating: 480VA at 240VAC
• Debounce Time Delay: 0.5s
• Mounting Method: DIN rail or surface mount
• Operating Temperature: -40 to 158 degrees Fahrenheit
• Dimensions: 1.75 inches H x 2.38 inches W x 4.13 inches D
