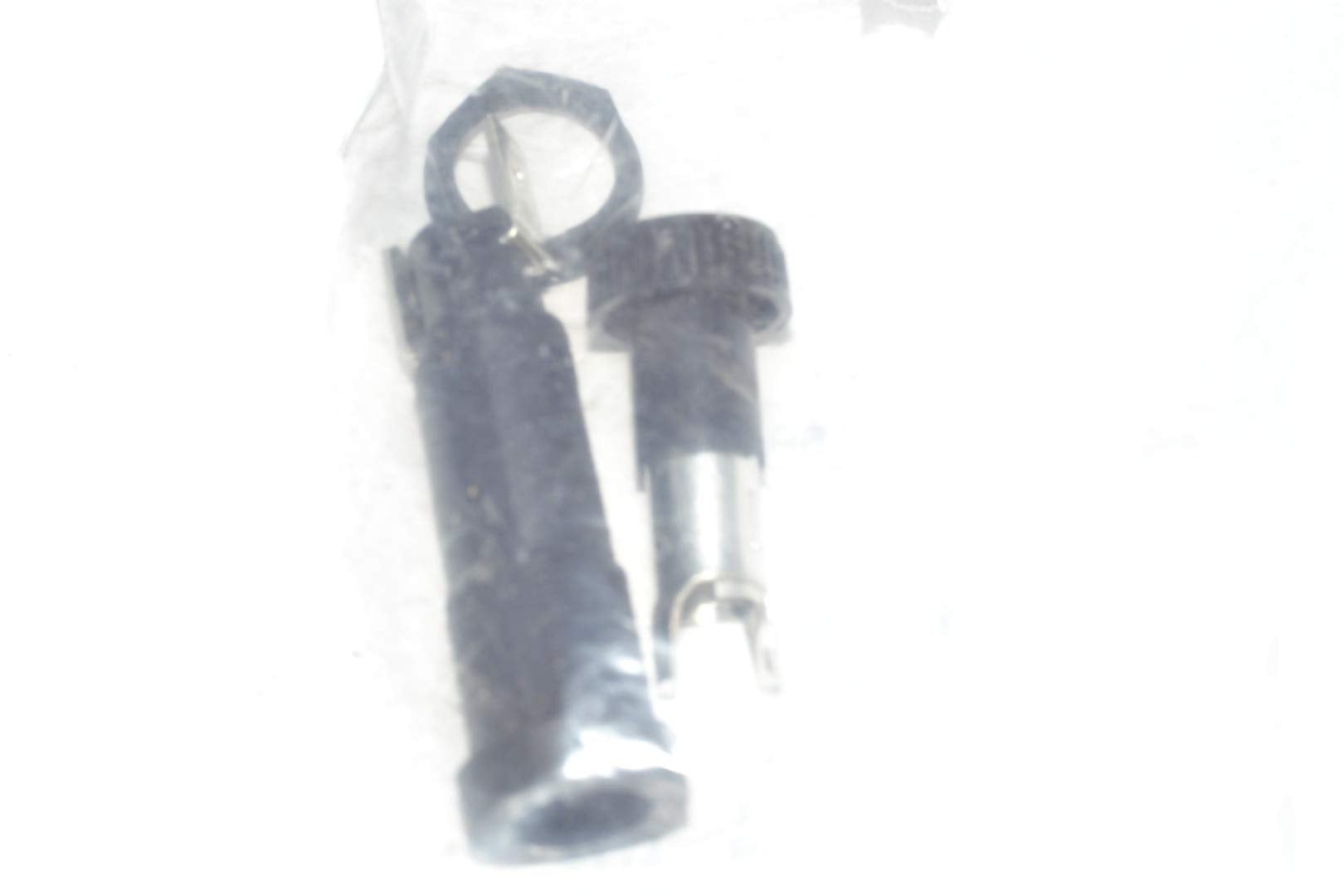

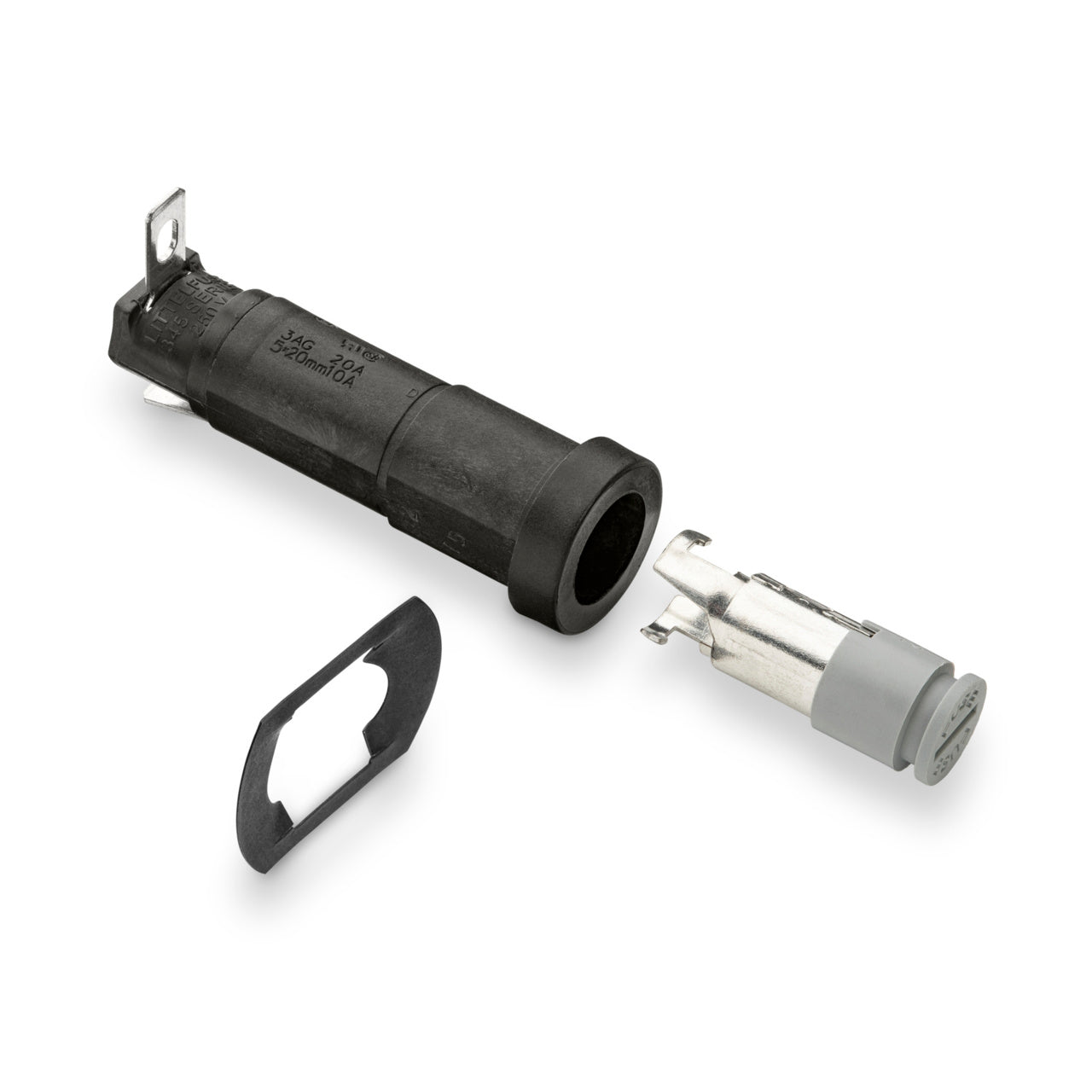

Littelfuse 3453LF8A panel mount shock-safe fuse holder 20 A 250 V (3AG 32 mm)

Product Description

The Littelfuse 3453LF8A is a panel-mount shock-safe fuse holder for 3AG (6.3 x 32 mm) cylindrical fuses. It is rated 20 A continuous at 250 VAC and uses a 1/4 in quick connect straight terminal. The thermoplastic body and copper/copper-alloy tin-plated terminals provide electrical connection while the shock-safe design, low-profile fingergrip knob and anti-tease feature reduce risk of accidental contact and circuit interruption.

• Rated 20 A continuous current and 250 VAC; accepts 3AG/3AB and 2AG (6.3 x 32 mm, 32 mm length) fuses
• Shock-safe design per IEC with low-profile fingergrip knob and anti-tease feature; thermoplastic body
• Panel-mount with 1/4 in quick connect straight terminals (copper/copper-alloy, tin-plated)

Product Highlights

Panel-mount shock-safe 3AG fuse holder; 20 A, 250 VAC; 1/4 in quick connect terminals; -40 to 85 deg C operating range

Product Information

Standard Information

• Brand: LITTELFUSE
• Manufacturer Part Number: 3453LF8A
• Country of Origin: CA

Technical Specifications

• Brand: Littelfuse
• Manufacturer Part Number: 3453LF8A
• Series: 345
• Type: International Shock Safe fuse holder
• Family: Fuseholder
• Current Rating: 20 A
• Voltage Rating: 250 VAC
• Number of Poles: 1
• Fuse Compatibility: 3AG/3AB and 2AG (6.3 x 32 mm, 32 mm length)
• Connection Type: 1/4 in quick connect (straight)
• Terminal Material: Copper/copper-alloy, tin-plated
• Mounting Type: Panel
• Material: Thermoplastic
• Dimensions: 0.6 in diameter
• Operating Temperature: -40 to 85 deg C
• Standards/Certifications: Shock-safe per IEC; UL File No. E14721; CSA; RoHS compliant
• Other Features: Low-profile fingergrip knob; anti-tease feature; drip-proof option available on screwdriver slot knob style
