LITTELFUSE 3453LF2A PANEL MOUNT SHOCK-SAFE FUSEHOLDER FOR 3AG FUSES

Product Description

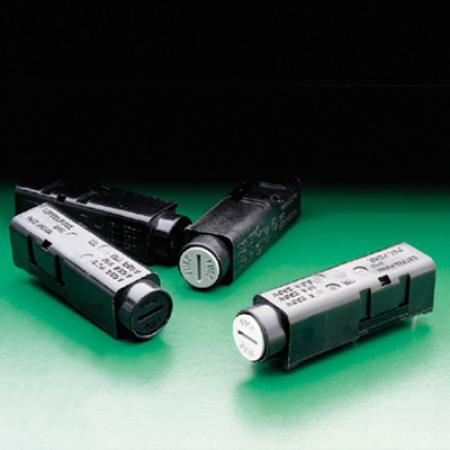

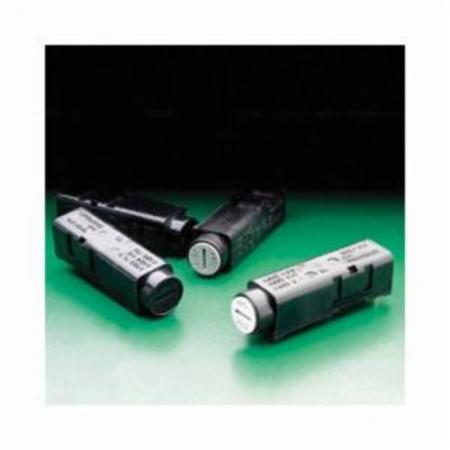

Littelfuse 3453LF2A is a panel mount shock-safe fuseholder designed for 3AG fuses. It operates at a voltage rating of 250 VAC and an amperage rating of 20 A. This fuseholder includes a dual-purpose solder/quick-connect feature for easy installation. The product meets international safety standards to help prevent electrical shocks.

• Designed for circuit board protection
• Low profile body with fingergrip knob
• Compatible with 3AG/3AB and 2AG series fuses

Product Highlights

This fuseholder is made from thermoplastic material and has a temperature rating of -40 to 85 degrees Celsius. It is built to withstand a mounting torque of 15 lb.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Type: International Shock Safe

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 250 VAC
• Fuse Length: 32 mm
• Fuse Diameter: 6.3 mm
• Number of Poles: 1
• Material: Thermoplastic
• Connection Type: 3/16 in Straight Dual Purpose Solder/Quick-Connect
• Dimensions: 0.6 in Dia
• Suitable For Use With: 3AG/3AB and 2AG Series Fuse
• Temperature Rating: -40 to 85 degrees Celsius
• Series: 345
