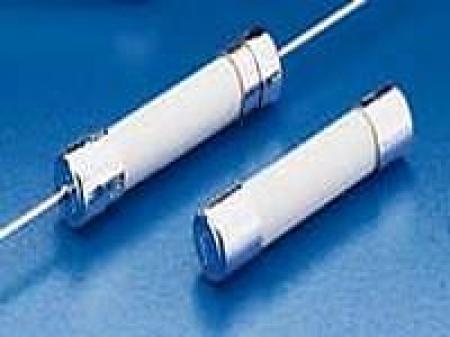

Littelfuse 326020P SLO-BLO 3AB Type Ceramic Fuse 20 Amp 250 VAC 125 VDC

Product Description

The Littelfuse 326020P is a SLO-BLO ceramic fuse rated at twenty amps. It is designed for use in circuits where higher current loads are normal. The ceramic body construction ensures better performance under high interrupt ratings and voltage ratings. This fast-acting fuse is suitable for various applications, making it ideal for circuit protection in electrical equipment.

• Rated for 20 amps with a voltage of 250 VAC and 125 VDC.
• Fast-acting response with a maximum interrupt rating of 500 amps.
• Compliant with UL Standard 248-14 and RoHS standards.

Product Highlights

This fuse is made of high-quality materials for reliable performance and features a ceramic body that supports its strong interrupting capabilities. It allows for supplementary protection in electrical circuits, especially in appliances and equipment where current surges may occur.

Product Information

Standard Information

• Brand: Littelfuse
• Type: Fast Acting

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 250 VAC
• Interrupt Rating: 500 A
• Body Size: 1/4 inches Diameter x 1-1/4 inches Length
• Body Type: Cartridge
• Material: Ceramic
• Mounting Type: Holder
• Response Time: 4 hr, 1 hr, 5 to 30 sec
• Indicating: Non-Indicating
• Standards/Approvals: UL File No. E10480, CSA 29862, CE Certified
