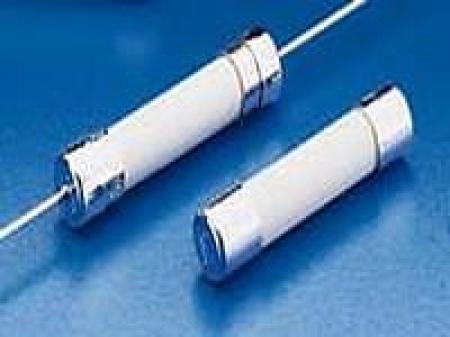

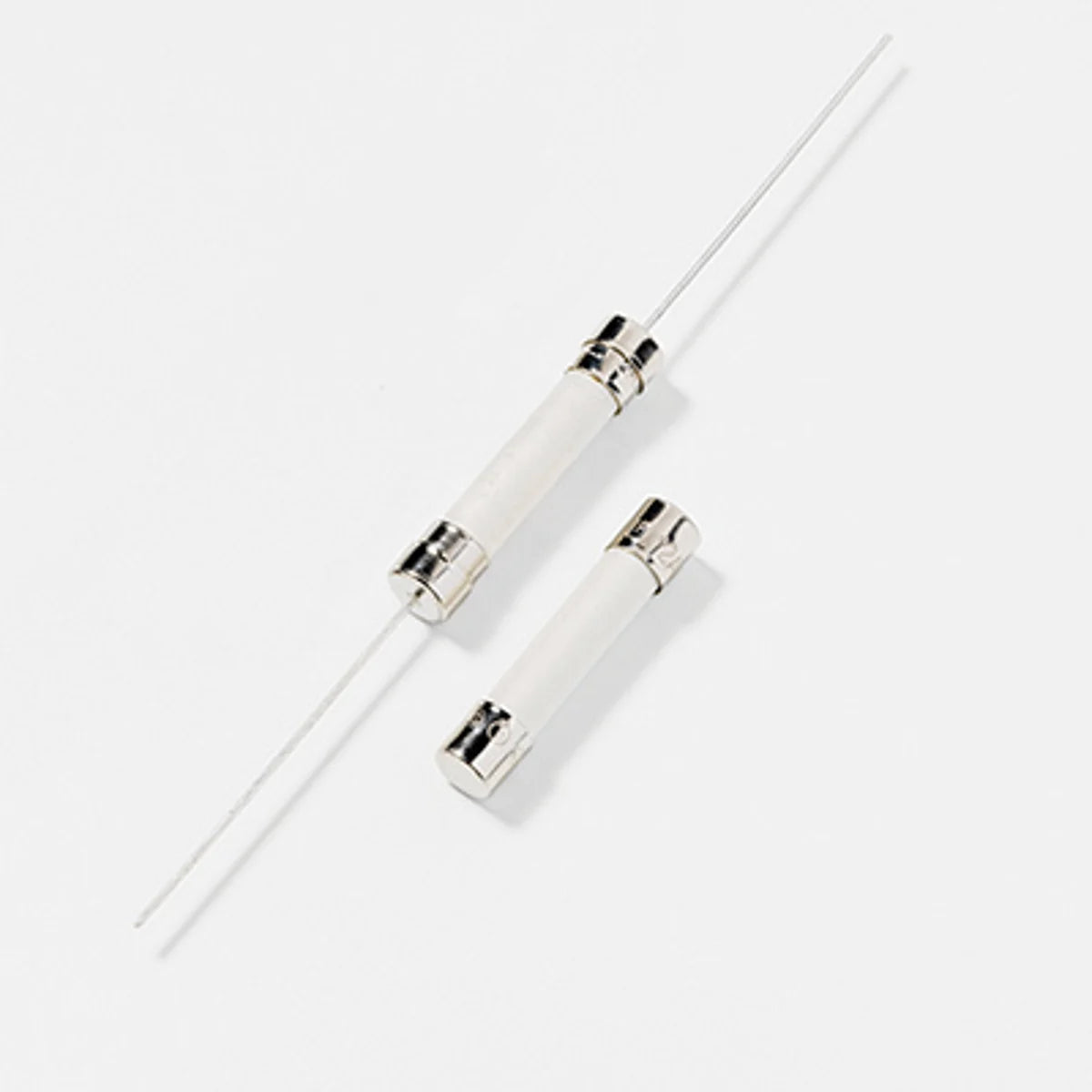

Littelfuse 326005P SLO-BLO 3AB TYPE CERAMIC FUSE 5A 250VAC

Product Description

The Littelfuse 326005P is a SLO-BLO ceramic fuse designed for applications that require reliable circuit protection. This fuse operates at five amperes and is rated for up to two hundred fifty volts AC. It features a time-delay mechanism, making it suitable for high inrush applications without blowing immediately. The ceramic body construction allows for higher interrupting and voltage ratings, making it ideal for heavy-duty use.

• 5A time-delay fuse for reliable protection
• 250VAC voltage rating
• Meets UL Standard 248-14

Product Highlights

This fuse is designed for general purpose applications and is RoHS compliant, ensuring it meets environmental standards.

Product Information

Standard Information

• Catalog Number: 326005P
• Manufacturer: Littelfuse

Technical Specifications

• Body Size: 1/4 in Diameter x 1-1/4 in Length
• Class: RK1
• Interrupt Rating: 10 kA
• Response Time: 4 hr, 1 hr, 5 to 30 s
• Terminal Type: Ferrule
• Material: Ceramic
• Standard Approvals: UL File No. E10480, CSA 29862, CE Certified
