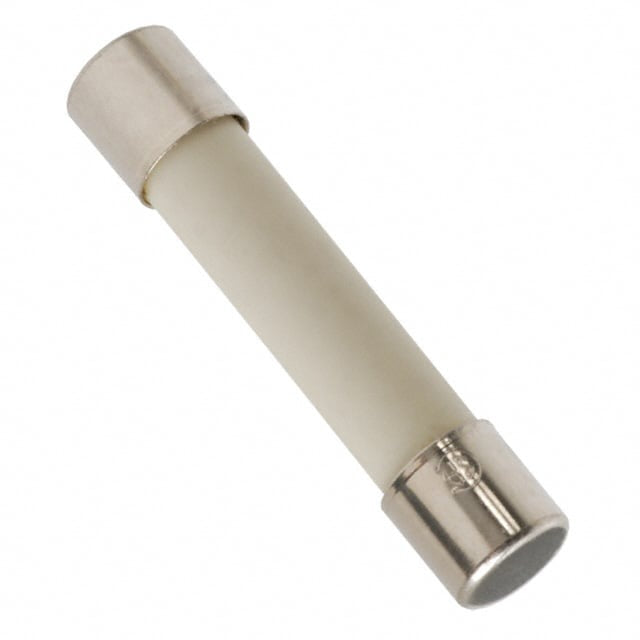

Littelfuse 326004 Cartridge Fuse 4A 250V (5 Pack) 0326004.VXP

Product Description

Littelfuse 326004 is a time-delay (Slo-Blo) cartridge fuse rated 4 A at 250 V AC, supplied as a pack of 5. The fuse is part of the 326 series and fits 3AB/3AG (1/4" x 1-1/4") holders; it is ceramic-bodied for circuit protection and tolerates short inrush currents while interrupting prolonged overloads. Specifications include a 400 A breaking capacity, ferrule connections, and a wide operating temperature range.

• Time-delay (Slo-Blo) cartridge fuse, Series 326, class 3AB/3AG
• Rated 4 A at 250 V AC with 400 A interrupting rating (additional 10 kA @ 125 VAC reported)
• Size 0.250 in x 1.250 in (1/4" x 1-1/4"), requires 3AB/3AG holder; ceramic construction with ferrule connection

Product Highlights

4 A, 250 V time-delay ceramic cartridge fuse (326 series) in a 5-piece pack; 0.25" x 1.25" size, 400 A breaking capacity, fits 3AB/3AG holders.

Product Information

Standard Information

• Brand: LITTELFUSE
• Manufacturer Part Number: 326004
