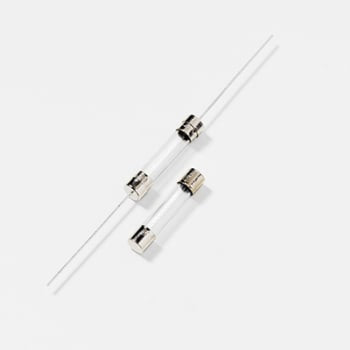

LITTELFUSE 312030P FAST-ACTING 3AG TYPE GLASS FUSE 30A

Product Description

The Littelfuse 312030P is a fast-acting 3AG type glass fuse designed for reliable circuit protection. This cartridge fuse features a thirty amp rating and operates at a voltage of thirty-two volts alternating current. It provides a fast response to prevent damage to electrical components in case of an overload or short circuit. The fuse has a maximum interrupting rating of three hundred amps, ensuring safety in various applications.

• Fast-acting design for quick protection
• Operates within a temperature range of minus fifty-five to one hundred twenty-five degrees Celsius
• UL and CSA approved ensuring compliance with safety standards

Product Highlights

This fuse is suitable for supplementary protection in many electrical applications, providing efficient and secure functionality.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: 312030P

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 32 VAC
• Interrupt Rating: 300 A
• Body Size: 1/4 in Dia x 1-1/4 in L
• Material: Glass
• Type: Fast Acting
• Mounting Type: Holder
• Response Time: 4 hr, 1 hr, 10 s
• Series: 312
• Terminal Type: Ferrule
• Approval Standards: UL 248-14, CSA LR29862
