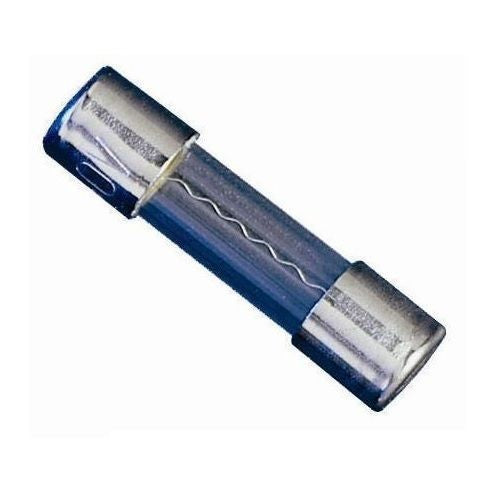

Littelfuse 235003P Powr-Gard Cartridge Fuse 3 A (5 x 20 mm) 235003P

Product Description

Littelfuse 235003P is a Powr-Gard fast-acting cartridge fuse rated 3 A at 250 VAC. It uses a 5 mm x 20 mm glass body with nickel-plated brass end caps and tin-plated copper leads, class RK5, and is intended for supplementary protection in appliance or utilization equipment. The fuse provides a 10 kA interrupting rating at 125 VAC, specified response times (4 hr at 100%, 1 hr at 135%, 5 s at 200%), and operates from -55 to 125 �C.

• Fast-acting cartridge fuse, 3 A rating at 250 VAC, class RK5
• 5 mm x 20 mm glass body with ferrule terminals and holder mounting
• 10 kA interrupting rating at 125 VAC; nominal resistance 0.03465 ohms; I2T 8.395 A2�s

Product Highlights

Fast-acting 3 A, 250 VAC Powr-Gard cartridge fuse (5 x 20 mm) with 10 kA interrupting rating at 125 VAC and -55 to 125 �C operating range.

Product Information

Standard Information

• Brand: LITTELFUSE
• Manufacturer Part Number: 235003P
• Country of Origin: Mexico

Technical Specifications

• Manufacturer: Littelfuse
• Manufacturer Part Number: 235003P
• Series: 235
• Sub-Brand: Powr-Gard
• Type: Fast Acting
• Class: RK5
• Amperage Rating: 3 A
• Voltage Rating: 250 VAC
• Interrupting Rating: 10 kA at 125 VAC; 100 A at 250 VAC
• Body Material: Glass
• Body Size: 5 mm Dia x 20 mm L
• Body Type: Cartridge
• Mounting Type: Holder
• Terminal Type: Ferrule
• End Cap Plating: Nickel-plated brass
• Lead Material/Finish: Tin-plated copper leads
• Resistance (nominal): 0.03465 ohms
• Nominal melting I2T: 8.395 A2�s
• Response Time: 4 hr minimum at 100%; 1 hr maximum at 135%; 5 s at 200% opening time
• Operating Temperature Range: -55 to 125 �C
• Lead Free: Yes
• Standards/Certifications: UL 248-12; UL 198M; CSA Certified; RoHS Compliant; PROP65 (contains nickel)
• Material: Glass body; nickel-plated brass caps; tin-plated copper leads
• Application: Supplementary protection in appliance or utilization equipment
• Country of Origin: Mexico
