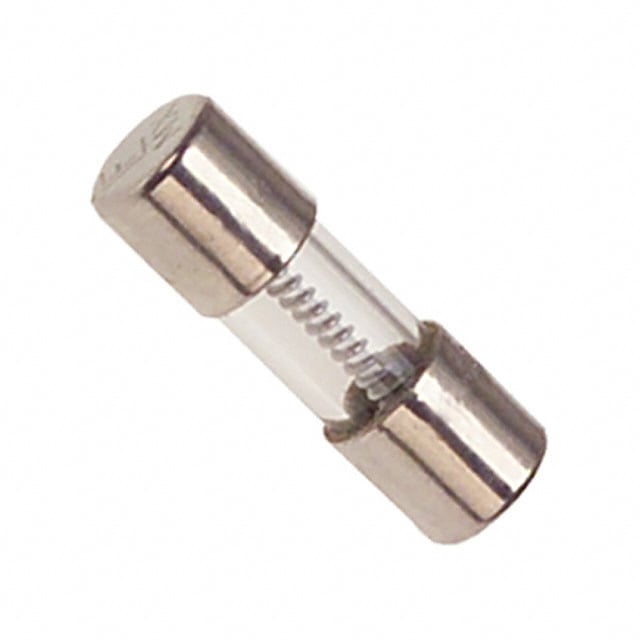

Littelfuse 229.350P POWR-GARD Slo-Blo Time Lag Cartridge Fuse 0.35 A 250 VAC (2AG 5 mm x 15 mm)

Product Description

Littelfuse 229.350P is a POWR-GARD Slo-Blo time-lag cartridge fuse rated 0.35 A at 250 VAC for general-purpose and inductive loads. The 2AG glass cartridge (5 mm x 15 mm) features ferrule terminals, holder mounting and a 10 kA interrupting rating. Time-current performance is 4 hours minimum at 100%, 1 hour maximum at 135% and 3 to 20 seconds at 200%. Operating range is -60 to 125 �C.

• Rated current 0.35 A, voltage 250 VAC, interrupting rating 10 kA
• Time-current characteristics: 4 hr min @100%, 1 hr max @135%, 3�20 s @200% (time-lag/slo-blo)
• Glass cartridge body 5 mm x 15 mm (2AG) with nickel-plated brass end caps, ferrule terminals and holder mounting

Product Highlights

Subminiature 2AG slo-blo fuse for inrush-tolerant protection; indicating glass body; -60 to 125 �C operating range.

Product Information

Standard Information

• Brand: LITTELFUSE
• Manufacturer Part Number: 229.350P
• Country of Origin: Mexico

Technical Specifications

• Manufacturer: Littelfuse
• Manufacturer Part Number: 229.350P
• Current Rating: 0.35 A
• Voltage Rating: 250 VAC
• Interrupting Rating: 10 kA
• Type: Slo-Blo (Time Lag) cartridge fuse
• Series: 229
• Body Dimensions: 5 mm diameter x 15 mm length (2AG)
• Body Material: Glass
• End Cap Material: Nickel plated brass
• Terminal Type: Ferrule
• Mounting Type: Holder
• Time-Current Characteristics: 4 hr minimum at 100%; 1 hr maximum at 135%; 3 to 20 s at 200%
• Operating Temperature: -60 to 125 �C
• Indicating: Tripped fuse indicating (visual via glass)
• Standards/Approvals: UL 248-4; CSA certified; Prop 65 (contains nickel)
• Size: 2AG (subminiature)
