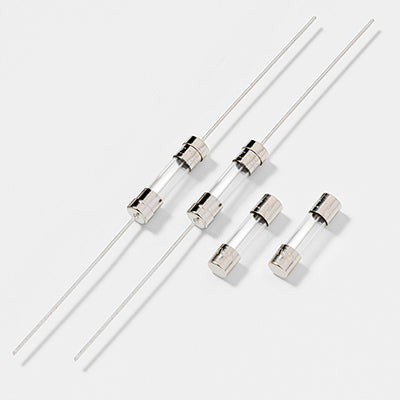

Littelfuse 218010P LFSE 218010P Slo-Blo Glass Body Fuse 10A

Product Description

Littelfuse 218010P is a Slo-Blo glass body fuse designed to meet IEC specifications. This fuse is ideal for general purpose applications requiring reliable circuit protection. It features a time-lag design that allows for temporary overloads without blowing, making it suitable for devices that have high inrush currents. The fuse is RoHS compliant and lead-free, ensuring it meets global environmental standards.

• Designed to international IEC standards.
• Time-lag functionality for overload protection.
• 2 Amp nominal current rating, suitable for various applications.

Product Highlights

This Slo-Blo glass body fuse offers a safe and efficient means of protecting electrical circuits from overloads while maintaining operation during temporary spikes.

Product Information

Standard Information

• Catalog Number: 218010P
• Brand: Littelfuse

Technical Specifications

• Amperage Rating: 2 Amp
• Voltage Rating: 250 VAC
• Interrupt Rating: 100 A
• Body Size: 5 mm Diameter x 20 mm Length
• Material: Glass
• Mounting Type: Holder
• Response Time: 30 min, 2 min, 0.6 to 10 s, 0.15 to 3 s, 0.02 to 0.3 s
• Type: Time Lag
• Series: 218
• Standards/Approvals: IEC 60127-2, CSA Certified, UL 248-12, PROP65 Warning for nickel exposure
