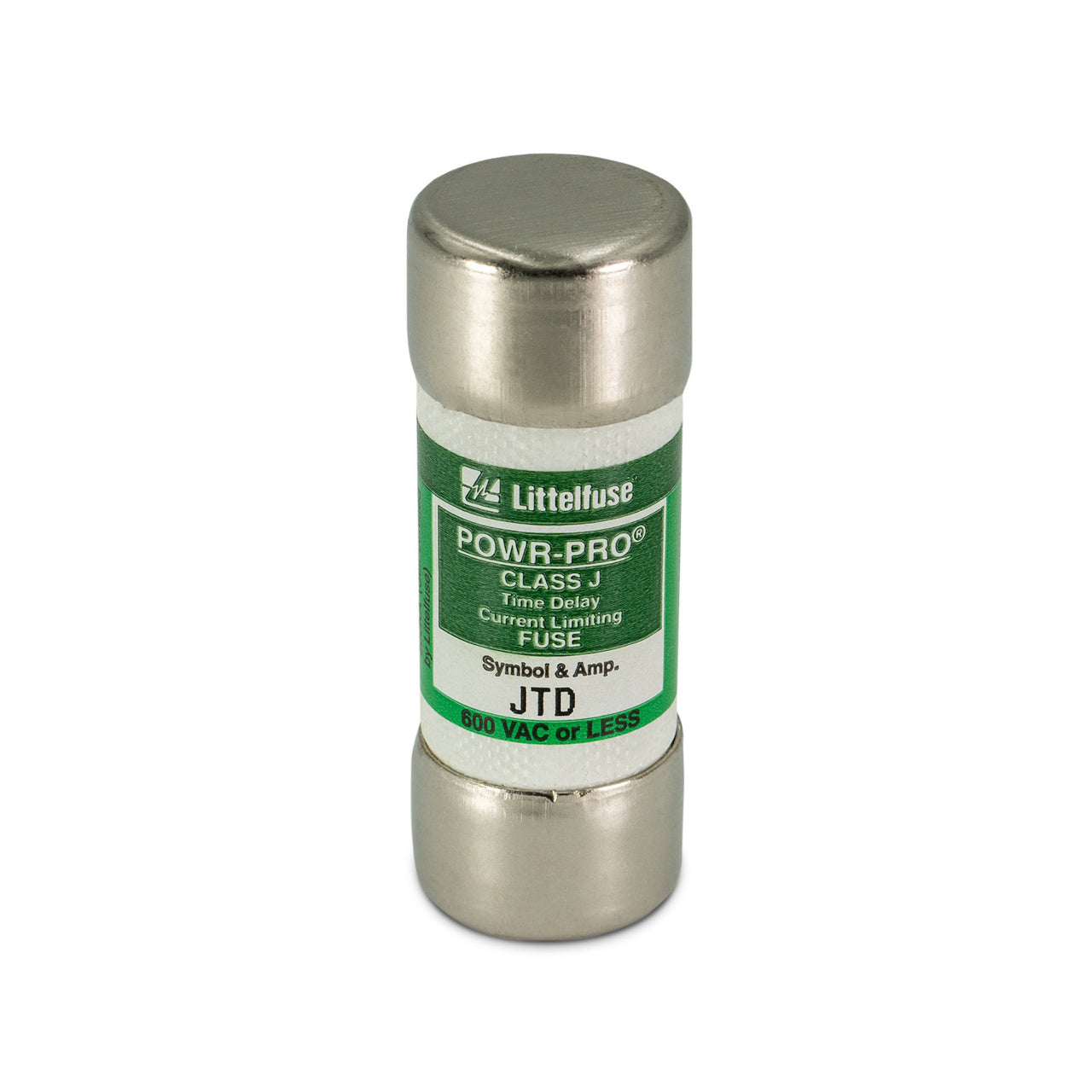

LITTELFUSE 0JTD006.T Fuse 600V T/D Class J 6A

Product Description

The LITTELFUSE 0JTD006.T is a Class J fuse rated at six amperes. It is designed for industrial use with a voltage capacity of six hundred volts AC and three hundred volts DC. This fuse effectively protects circuits from overcurrents and potential short circuits.

• Current Rating: 6A
• Voltage Rating: 600V AC, 300V DC
• Fuse Type: Time-delay, Class J

Product Highlights

The LITTELFUSE 0JTD006.T offers reliable overcurrent and short circuit protection with a time-delay feature suitable for industrial applications.

Product Information

Standard Information

• Manufacturer: LITTELFUSE
• Type of Fuse: Fuse

Technical Specifications

• Current Rating (Continuous): 6A
• Interrupting Rating: 20 kA @ 300 Vdc
• Opening: Slo-Blo/Time Lag (T)/Time Delay
• Maximum AC Voltage: 600V
• Voltage Rating: 300V
• Size: Industrial Cartridge
• Family Style: Powr-Pro Fuse
• Fuse Class: Class J
• Indicating: No
• Interrupt Amperage: 200000
• Mounting Method: Fuse Block / Clip / Holder
• Fuse Characteristics: Time-lag
• Fuse Size: 20.6 x 57.2 mm
• Manufacturer Series: JTD
• Breaking Capacity: 20kA / 300V DC, 200kA / 600V AC
