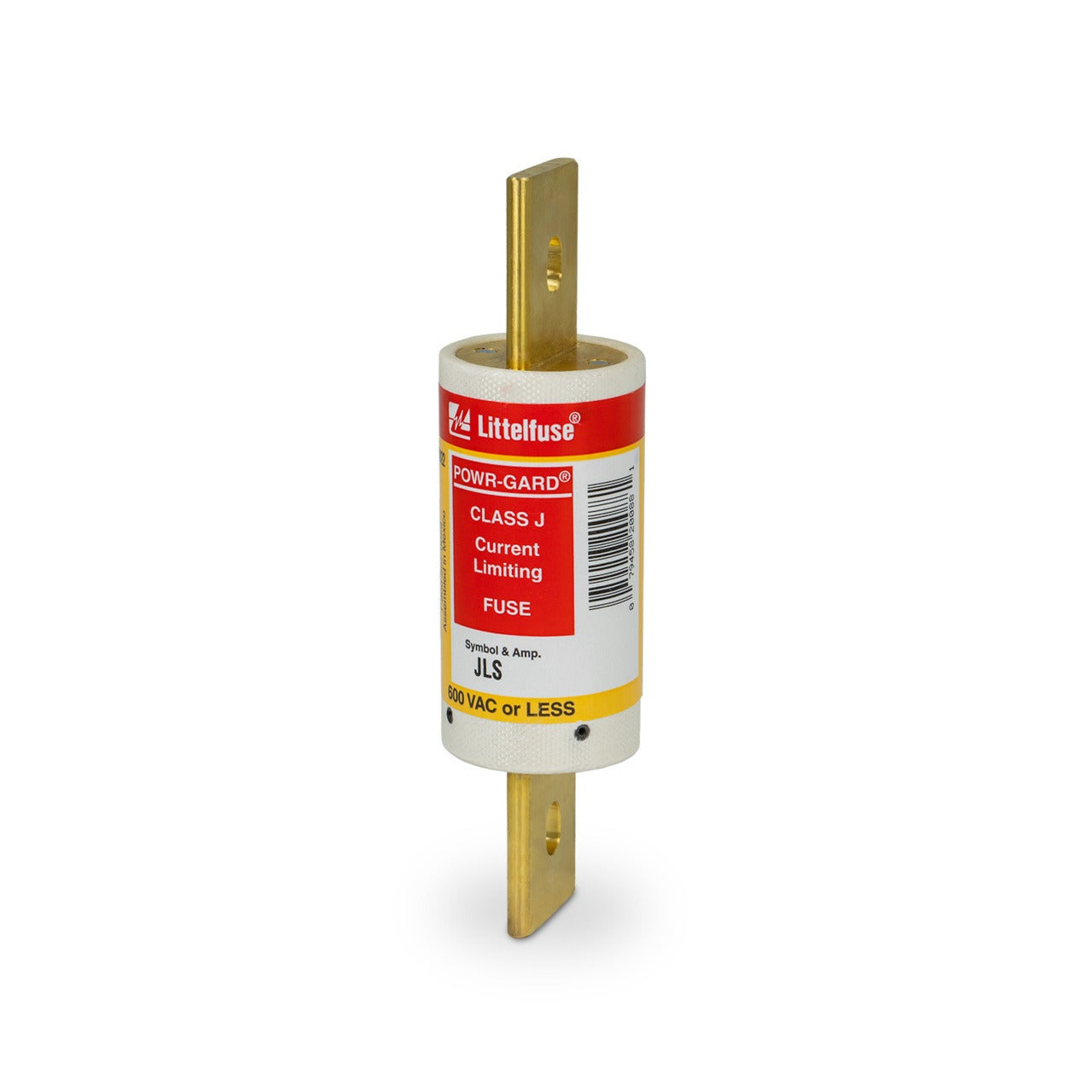

Littelfuse 0JLS175.X JLS175 Fuse 175 A 600 V (Knife-blade)

Product Description

Littelfuse 0JLS175.X is a Class J, fast-acting fuse rated 175 A continuous and 600 V AC, designed as a current-limiting knife-blade cartridge for circuit protection. It provides a 200 kA interrupting rating and single-element melamine body with knife-blade terminal and bolt mounting; typical mounting uses a fuse block or clip (PG Holder LFJ60200 series). Body dimensions are 1-1/2 in diameter by 5-3/4 in length; frequency 50/60 Hz. Suitable for protection of variable speed drives, rectifiers, and other surge-sensitive equipment.

• Class J, current-limiting, fast-acting fuse: 175 A, 600 V AC, 200 kA interrupting rating
• Knife-blade terminal with bolt mounting; mounts in fuse block/clip/holder (PG Holder LFJ60200 series)
• Single-element melamine cartridge; dimensions 1-1/2 in diameter x 5-3/4 in length; 50/60 Hz

Product Highlights

Compact Class J, current-limiting fuse with 200 kA interrupting rating for surge-sensitive equipment

Product Information

Standard Information

• Brand: LITTELFUSE
• Manufacturer Part Number: 0JLS175.X
