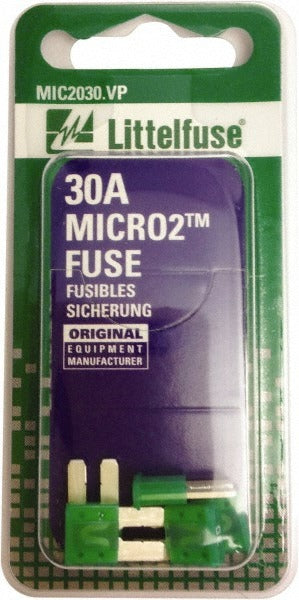

Littelfuse 0327030 30A 32VDC MICRO2 Automotive Blade Fuse

Product Description

The LITTELFUSE 0327030 is a MICRO2 sub-mini blade-style automotive fuse rated at 30 amps and 32 volts DC. It is designed for vehicle circuit protection in low-voltage automotive electrical systems. The fuse body is molded from PA66 housing material with silver-plated zinc alloy terminals, providing reliable conductivity and corrosion resistance. At a resistance of 2.1 milliohms, it delivers consistent overcurrent protection without introducing excessive resistance into the circuit. The green color coding provides fast visual identification during inspection or replacement. This fuse is installed by automotive technicians and fleet maintenance professionals working on fuse panels and circuit protection systems.

The 0327030 is suited for use in passenger vehicles, light trucks, and other mobile equipment requiring sub-mini blade fuse protection. Its compact MICRO2 footprint fits fuse blocks and fuse holders designed for the MICRO2 blade format. Typical applications include body control modules, accessory circuits, and other low-current vehicle circuits where space is limited and a sub-mini form factor is required.

Key Features

• 30 amp rating with 32 VDC maximum voltage for automotive circuit protection
• MICRO2 sub-mini blade style for compact fuse block installations
• PA66 housing with silver-plated zinc alloy terminals for durability and conductivity
• Green color coding for quick amperage identification in the field
• RoHS compliant and meets SAE 2741 and ISO 8820-12:2020 standards
• Low resistance of 2.1 milliohms minimizes voltage drop across the fuse

Compatibility

Designed for use in vehicle circuit protection applications requiring a MICRO2 sub-mini blade-style fuse rated at 30 amps and 32 VDC. Fits fuse holders and fuse blocks accepting the MICRO2 blade format per SAE 2741 and ISO 8820-12:2020 specifications.

Installation Notes

Automotive fuse replacement should be performed by a qualified technician with the vehicle ignition off and the affected circuit de-energized before servicing. Confirm the replacement fuse amperage matches the circuit rating exactly — never substitute a higher-amperage fuse. Use a fuse puller tool to avoid damaging adjacent components in tight fuse blocks. Minimum order quantity for this SKU is 10 units per order.
