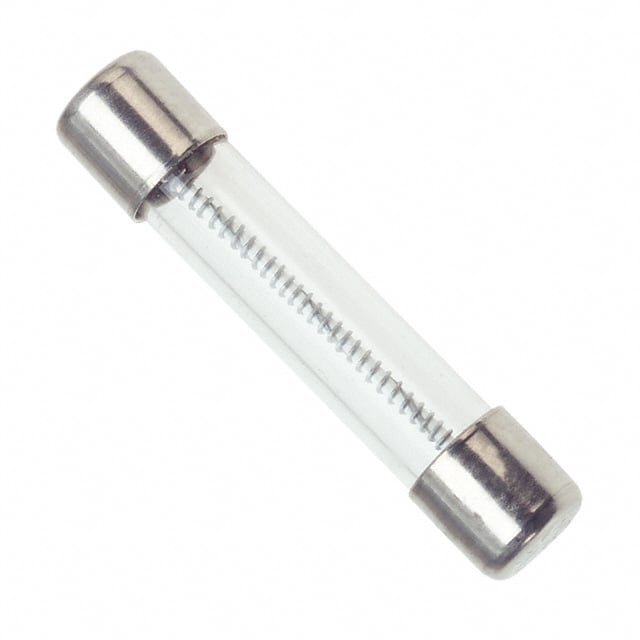

Littelfuse 0313008.VXIDP Slo-Blo 3AG glass fuse 8 A 250 VAC (1 Pack)

Product Description

Littelfuse 0313008.VXIDP is a Slo-Blo (time-delay) 3AG glass fuse with indication, rated 8 A at 250 VAC for overcurrent protection in electronic and electrical equipment. It provides time-delayed protection suitable for inductive loads and includes an indicating element that discolors on opening for visual fault identification. The fuse measures 1/4 in diameter x 1-1/4 in length and is intended for holder mounting.

• Time-delay characteristics: minimum 4 hours at 100%, maximum 1 hour at 135%, and 5 to 30 seconds maximum at 200%
• Indicating type with glass body discoloration on opening for immediate identification
• Rated 8 A, 250 VAC; body 0.250 in x 1.250 in; interrupting rating 10 kA at 125 VAC (200 A at 250 VAC)

Product Highlights

3AG Slo-Blo indicating glass fuse, Series 313, 8 A 250 VAC, holder-mounted, operating temperature _55 to 125 �C

Product Information

Standard Information

• Brand: LITTELFUSE
• Manufacturer Part Number: 0313008.VXIDP

Technical Specifications

• Manufacturer: Littelfuse
• Manufacturer Part Number: 0313008.VXIDP
• Series: 313
• Fuse Type: Slo-Blo (time-delay) 3AG glass cartridge fuse
• Rated Current: 8 A
• Rated Voltage: 250 VAC
• Body Dimensions: 0.250 in dia x 1.250 in L (1/4 in x 1-1/4 in)
• Body Material: Glass
• Indicating Feature: Indicating element discolors glass body on opening
• Interrupting Rating: 10 kA at 125 VAC; 200 A at 250 VAC
• Response Time: Min 4 hours at 100%; max 1 hour at 135%; 5 to 30 seconds max at 200%
• Mounting Type: Holder
• Terminal Type: Ferrule terminals
• Cap Material: Nickel-plated brass caps
• Lead Free: Yes
• Operating Temperature: -55 to 125 �C
• Approvals: UL Listed; CSA Certified; CE Certified
• RoHS Status: RoHS3 compliant
• Application: Supplementary protection in appliance or utilization equipment; protection of individual components or internal circuits
• Packaging Quantity: 1
• UPC: 079458133073
• GTIN / EAN: 0079458133073
• Melting I2t: 445.0
• DC Cold Resistance: 0.0111 Ohms
• Marking Code: VX
