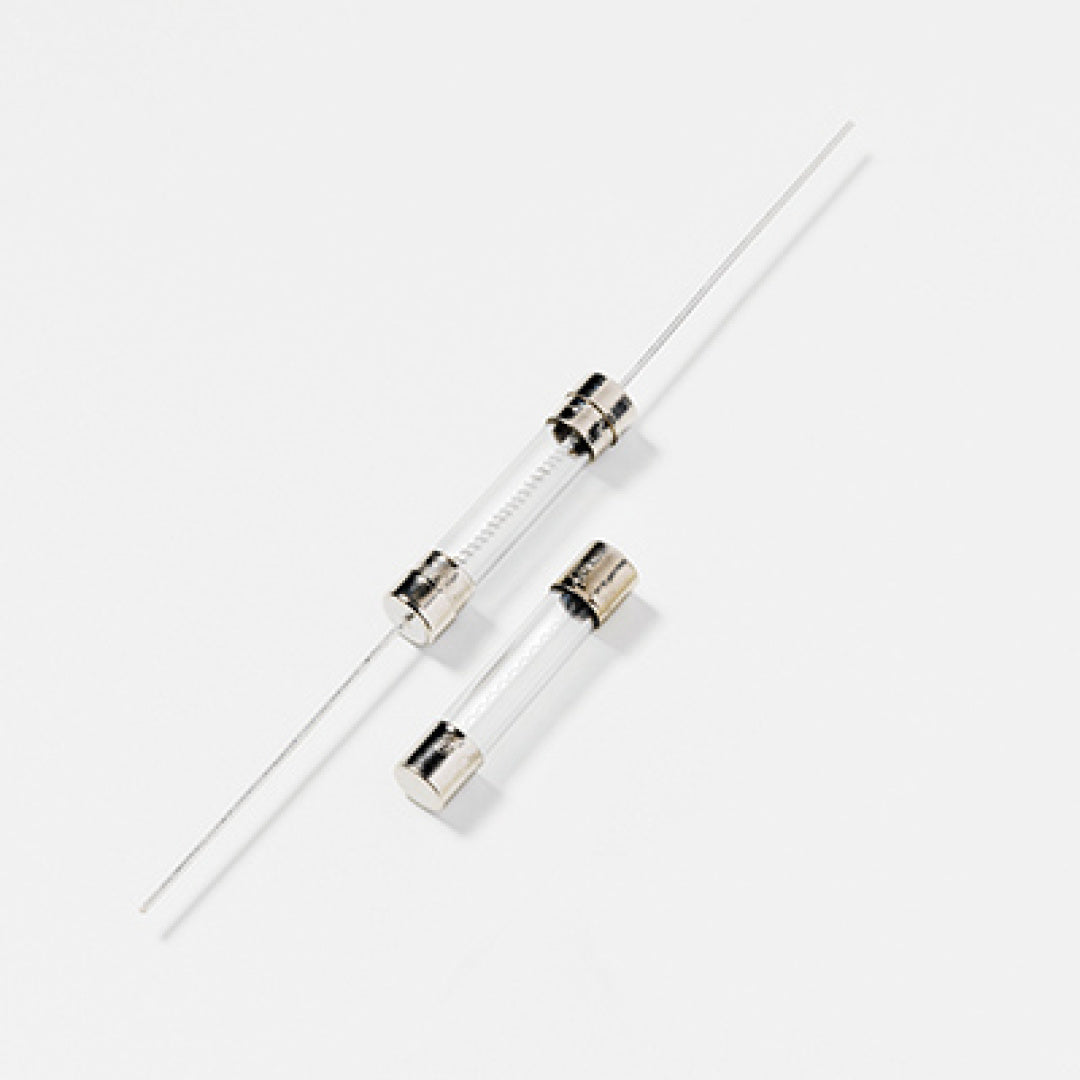

Littelfuse 0313003.VXIDP 313 Slo-Blo 3AG time-delay fuse 3 A (1/4 in x 1-1/4 in)

Product Description

Littelfuse 0313003.VXIDP is a POWR-GARD 313 Slo-Blo indicating time-delay cartridge fuse rated 3 A at 250 VAC. The 3AG glass cartridge (1/4 in diameter x 1-1/4 in length) provides time-delayed protection for inductive loads such as motors, transformers, and solenoids, and visually indicates opening by glass discoloration. It has a 10 kA interrupting rating at 125 VAC, nickel-plated brass caps, is lead-free, and operates from -55 to 125 �C.

• Time-delay (Slo-Blo) characteristic with defined opening times: 4 hr min at 100%, 1 hr max at 135%, 5�30 s max at 200%
• Indicating glass body discolors on opening for visual fault identification; 3AG cartridge size (1/4 in x 1-1/4 in)
• Rated 3 A, 250 VAC with 10 kA interrupting rating at 125 VAC; nickel-plated brass caps; lead-free construction

Product Highlights

3 A 3AG time-delay glass cartridge fuse with visual indicator, 10 kA interrupting rating (125 VAC), nickel-plated brass caps, -55 to 125 �C operating range.

Product Information

Standard Information

• Brand: LITTELFUSE
• Manufacturer Part Number: 0313003.VXIDP
• Country of Origin: Mexico

Technical Specifications

• Brand: Littelfuse
• Manufacturer Part Number: 0313003.VXIDP
• Series: 313
• Type: Time Delay (Slo-Blo)
• Current Rating: 3 A
• Voltage Rating: 250 VAC
• Interrupting Rating: 10 kA at 125 VAC; 100 A at 250 VAC
• Body Type: Cartridge
• Body Material: Glass
• Body Size: 1/4 in Dia x 1-1/4 in L
• Diameter: 0.25 inch
• Length: 1.25 inch
• Mounting Type: Holder
• Terminal Type: Ferrule
• Indicating: Yes (visual indication via glass discoloration)
• Opening Characteristics: 4 hours minimum at 100%; 1 hour maximum at 135%; 5 to 30 seconds maximum at 200%
• Operating Temperature: -55 to 125 �C
• Cap Material: Nickel-plated brass
• Lead Free: Yes
• Certifications: UL, CSA, CE
• Application: Time-delayed protection for inductive loads (motors, transformers, solenoids); supplementary protection in appliances or utilization equipment
• Marking Code: VX
• Packaging Quantity: 5
