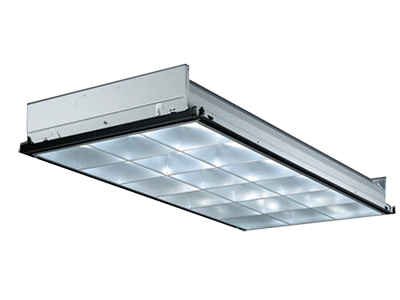

Lithonia Lighting PT3-MV Parabolic Troffer 96 W

Product Description

The Lithonia Lighting PT3-MV is a fluorescent recessed parabolic troffer with multi-volt capability. Designed for use in open areas where optical control is important. It features a NEMA premium, instant start ballast and a 3 x 6 louver configuration. The troffer is UL approved and suitable for indoor use in education, offices, banks, and retail environments.

• Fluorescent Recessed Parabolic Troffer
• Multi-Volt
• Louver Finish: Low Iridescence Anodized Aluminum

Product Highlights

This parabolic troffer provides a durable and easy to install lighting solution for spaces requiring visual comfort and controlled light distribution.

Product Information

Standard Information

• Brand: LITHONIA LIGHTING
• Manufacturer Part Number: PT3-MV
• Country of Origin: MX

Technical Specifications

• Lamp Type: T8
• Number of Lamps: 3
• Lamp/Ballast Voltage: 120 to 277 V at 50/60 Hz
• Lamp Wattage: 32 W
• Lamp Included: No
• Ballast Type: NEMA Premium, Instant Start
• Air Function: Static
• Trim Type: Grid
• Louver Configuration: 3 x 6
• Louver Depth: 2.8125 Inch
• Louver Finish: Low Iridescence Anodized Aluminum
• Length: 48 Inch
• Width: 24 Inch
• Height: 4.5 Inch
• Nominal Length: 4 Ft
• Applications: Education,Offices & Banks,Retail
• Color Rendering Index: 82
• Material: Steel
• Mounting Type: Ceiling
• Style: Traditional
• Type: Troffer
• Environmental Conditions: Indoor
• Finish: Gloss
• Shape: Rectangle
• Fixture Wattage: 96 W
• Housing Material: Steel
• Mounting: Recessed
• Location Rating: Damp Location
• Bulb Base: Fluorescent Pin
• Bulb Shape: T8 Linear
• Bulb Visible: No
• Light Direction: Down Lighting
• Power Source: Hardwired
