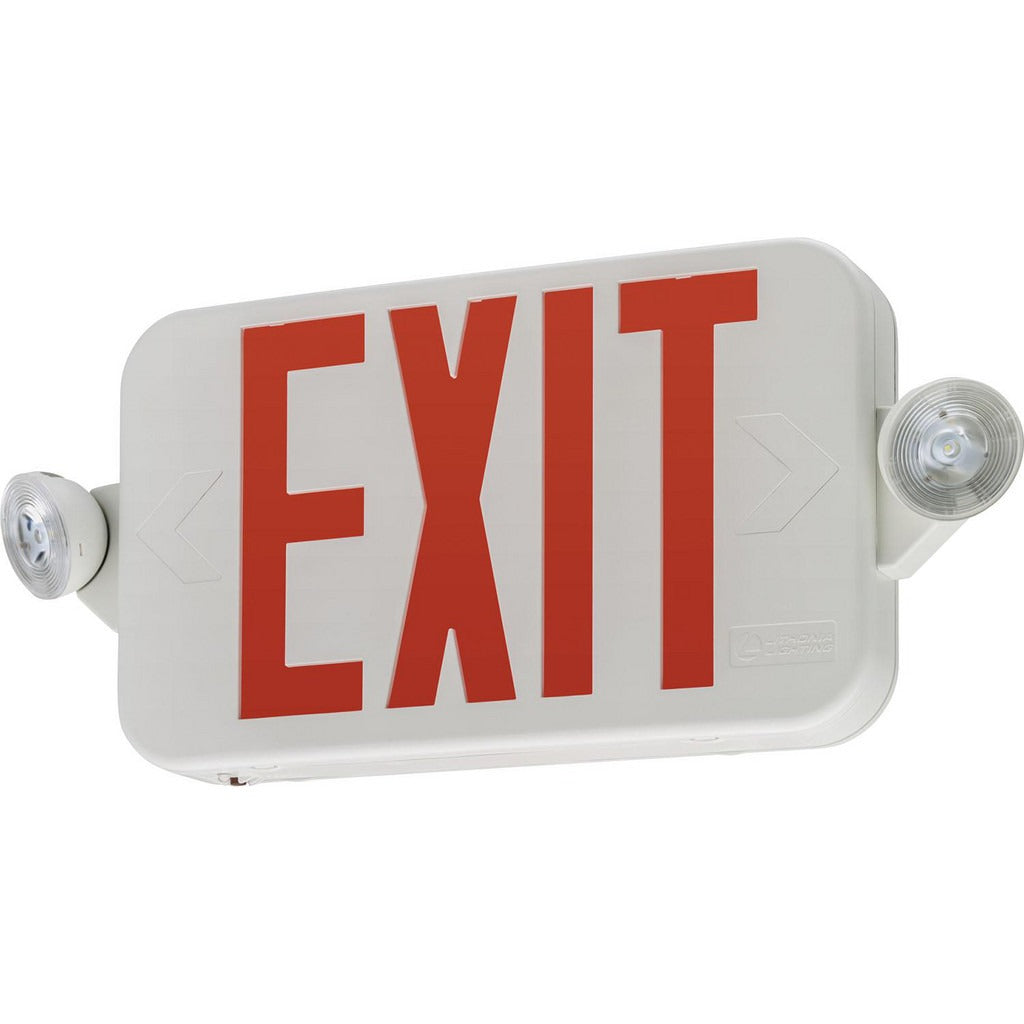

Lithonia Lighting 269XW0 Led Exit Sign Emergency Light

Product Description

The LITHONIA LIGHTING 269XW0 is a single-face LED combination exit sign and emergency light designed for surface wall mount installation in commercial and light industrial buildings. Running at 3.2 watts, the unit provides energy-efficient exit path illumination through an integrated LED lamp. It ships with a nickel cadmium battery for code-required backup operation during power loss. The thermoplastic housing keeps weight down and resists impact. Two emergency light heads are included, making this a true combination unit rather than a sign-only fixture. Licensed electricians and facilities maintenance technicians are the typical installers.

This combination unit is suited for corridors, stairwells, exit vestibules, and other egress paths in commercial, institutional, and light industrial occupancies requiring both illuminated exit signage and emergency lighting at a single mounting point. The 1-face configuration is used where the sign needs to be visible from one direction only, such as a wall-mounted position at the end of a corridor. The unit covers an operating temperature range of 32 degrees F to 122 degrees F, making it appropriate for conditioned interior spaces.

Key Features

• 3.2-watt LED lamp type for low operating cost compared to incandescent exit signs
• 2 emergency light heads integrated into a single unit
• Nickel cadmium battery backup for continued operation during power outages
• Thermoplastic housing for lightweight, impact-resistant construction
• Surface wall mount design for straightforward installation on finished walls
• Meets NFPA 101, NFPA 70-NEC, OSHA, and UL 924 listing requirements

Compatibility

Designed as an OEM-style surface wall mount LED combination exit and emergency light fixture for commercial egress applications requiring UL 924 listed equipment.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NFPA 70 (NEC) and local building codes. Shut off branch circuit power at the panel before wiring the unit. The included backplate, canopy, and wire leads are used for the surface mount connection to the wall junction box. After installation, perform a full battery discharge test per NFPA 101 requirements to verify backup duration before the space is occupied.
