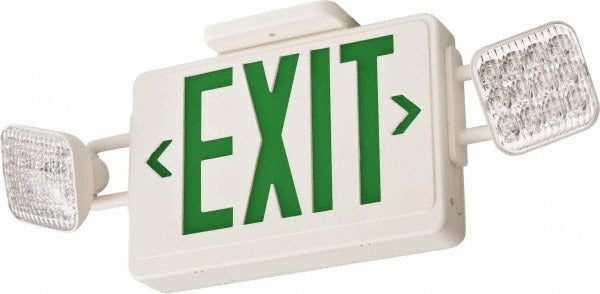

Lithonia Lighting 269XVW Led Exit Sign Emergency Light

Product Description

The LITHONIA LIGHTING 269XVW is a single-face LED combination exit sign and emergency lighting unit designed for surface wall mount installation. The unit draws 3.2 watts from its LED lamp and incorporates two emergency light heads into the same housing, eliminating the need for a separate emergency light fixture. The thermoplastic housing is finished in white and ships with a built-in nickel cadmium battery for backup power during outages. Electrical contractors and facilities maintenance techs install this unit in commercial and light industrial spaces where code requires both exit marking and emergency egress lighting at a single location.

This combination unit is suited for commercial buildings, warehouses, schools, and similar occupancies that must comply with NFPA 101 life safety requirements. The two adjustable emergency heads provide directional lighting coverage along egress paths. The surface mount canopy and included backplate simplify installation on standard wall boxes or directly to wall surfaces. The package includes two stencil faces, backplate, battery, canopy, extra faces, and wire leads, so the installer has everything needed for a complete installation without sourcing additional hardware.

Key Features

• LED lamp at 3.2 watts for low energy draw and long service life
• Two adjustable emergency light heads integrated into a single unit
• Nickel cadmium battery provides backup power during power loss
• Thermoplastic housing rated for operating temperatures from 32 degrees F to 122 degrees F
• Meets NFPA 101, NFPA 70-NEC, OSHA, and UL 924 requirements
• Ships complete with stencil faces, backplate, battery, canopy, extra faces, and wire leads

Compatibility

Designed as an OEM-style surface wall mount LED combination exit and emergency light for commercial and institutional applications requiring compliance with NFPA 101 and UL 924 life safety standards.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NFPA 70-NEC and all applicable local codes. Disconnect and lock out power to the circuit before beginning any wiring work. Follow the manufacturer wiring diagram included with the unit and verify battery charge function after installation. Confirm compliance with NFPA 101 exit sign placement requirements for mounting height and visibility before closing out the installation.
