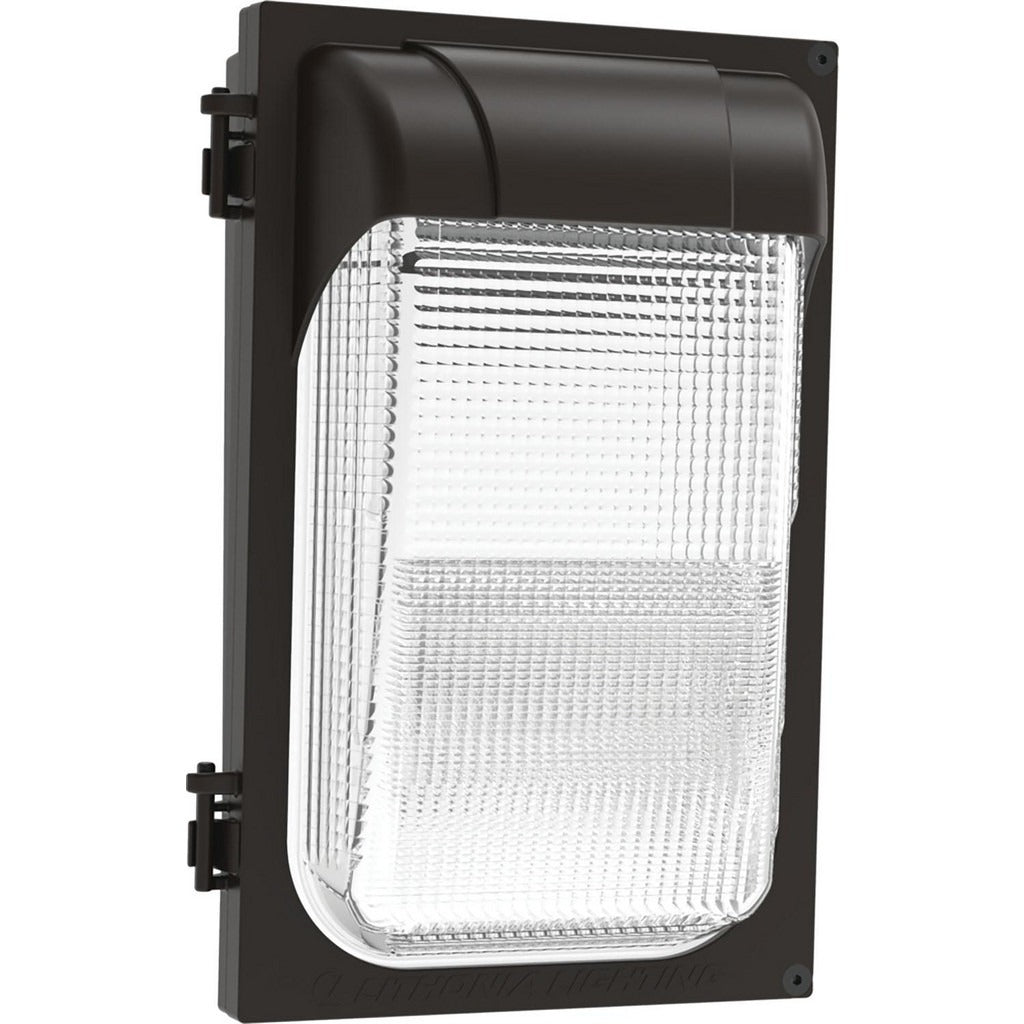

Lithonia Lighting 268TUH Led Wall Pack 18W 2100 Lumens 5000K

Product Description

The LITHONIA LIGHTING 268TUH is an LED wall pack light fixture designed for exterior building illumination in commercial and light industrial applications. Rated at 18 watts and delivering 2,100 lumens at a 5,000K color temperature, it produces a crisp, daylight-range output suitable for parking areas, building perimeters, and entryways. The unit operates across a wide input voltage range of 120 to 277 volts, making it compatible with standard commercial electrical services without the need for additional transformers. The aluminum housing provides structural durability while keeping overall weight at 7.4 pounds. A polycarbonate lens protects the optical assembly against impact and environmental exposure.

This fixture is intended for wall-mount installation on exterior building surfaces in both residential and commercial settings. It is a common choice for retrofitting older metal halide or high-pressure sodium wall packs with a direct LED replacement. Electricians and facilities maintenance personnel install this type of fixture on warehouses, retail buildings, office exteriors, and multifamily residential structures. The 120-277V input range suits most North American electrical distribution configurations, reducing the need for voltage-specific ordering on mixed-service job sites.

Key Features

• 18-watt LED light source delivers 2,100 lumens at 5,000K daylight color temperature
• Wide voltage input range: 120 to 277 volts for compatibility with varied commercial services
• Aluminum housing for lightweight structural durability
• Polycarbonate lens resists impact and UV degradation
• Bronze finish for a neutral, low-profile exterior appearance
• Wall-mount design suited for exterior perimeter and entryway lighting

Compatibility

Designed as an OEM-style replacement or new-installation LED wall pack for exterior commercial and residential wall-mount applications requiring a 120-277V input and medium-base lamp configuration.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and applicable local codes. Disconnect and lock out all power at the circuit breaker before mounting or wiring the fixture. The wall-mount housing should be secured to a weather-resistant electrical box rated for exterior wet or damp locations. Verify that the supply voltage falls within the 120-277V operating range before energizing the circuit.
