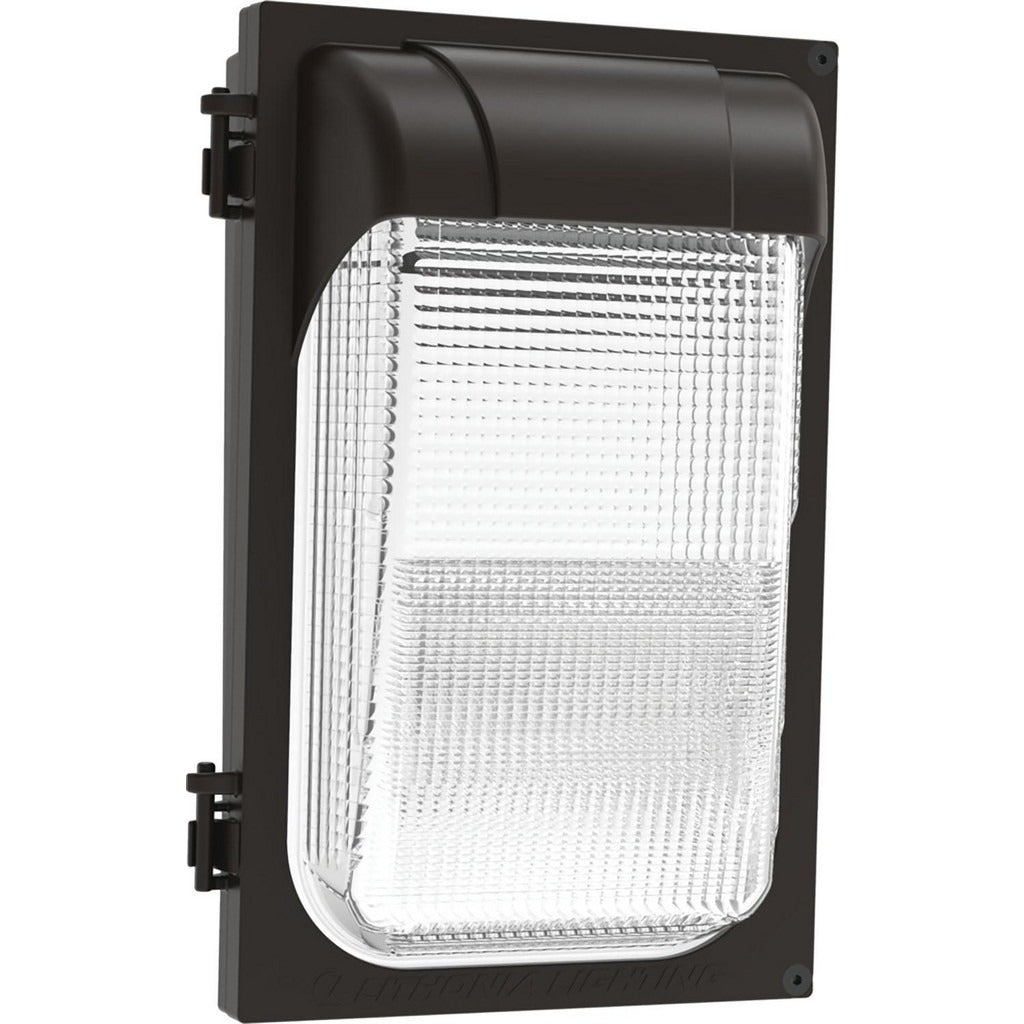

Lithonia Lighting 268TUF Led Wall Pack 18W 2100lm 5000K

Product Description

The LITHONIA LIGHTING 268TUF is an LED wall pack light fixture built for commercial and industrial exterior lighting applications. Rated at 18 watts with an output of 2,100 lumens and a color temperature of 5,000K, this fixture delivers bright, daylight-quality illumination at low wattage. The housing is constructed from aluminum for durability in outdoor environments, and the polycarbonate lens provides impact resistance against weather and debris. It accepts a wide input voltage range of 120 to 277 volts, making it compatible with most commercial electrical supply configurations. The bronze finish integrates cleanly into standard exterior building aesthetics. Licensed electricians and electrical contractors are the typical installers for this fixture type.

The 268TUF is suited for wall-mounted exterior lighting on commercial buildings, warehouses, retail facilities, and similar structures where reliable, energy-efficient security or area lighting is required. Its wide voltage range — 120 to 277 volts — supports use across single-phase and multi-phase commercial electrical systems without the need for additional step-down transformers. The medium base socket type and standard wall-mount configuration make it a practical replacement or upgrade option for traditional HID or fluorescent wall pack fixtures in low-rise commercial settings.

Key Features

• 18-watt LED source delivers 2,100 lumens, offering significant energy savings over comparable HID wall packs
• 5,000K color temperature provides daylight-quality light output for improved visibility in security and area lighting
• Wide voltage range of 120 to 277 volts supports compatibility with common commercial electrical systems
• Aluminum housing offers structural durability for outdoor and semi-exposed mounting locations
• Polycarbonate lens resists impact and weathering for long service life in exterior environments
• Bronze finish provides a neutral, professional appearance on standard building exteriors

Compatibility

Designed as an OEM-style wall-mount replacement and upgrade fixture for commercial exterior lighting applications requiring a medium base LED wall pack in the 18-watt class.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements for exterior luminaires. Disconnect and lock out all power at the breaker before mounting or wiring the fixture. The wall-mount configuration requires secure attachment to a listed weatherproof electrical box rated for the fixture weight. Verify supply voltage matches the fixture input range before energizing.
