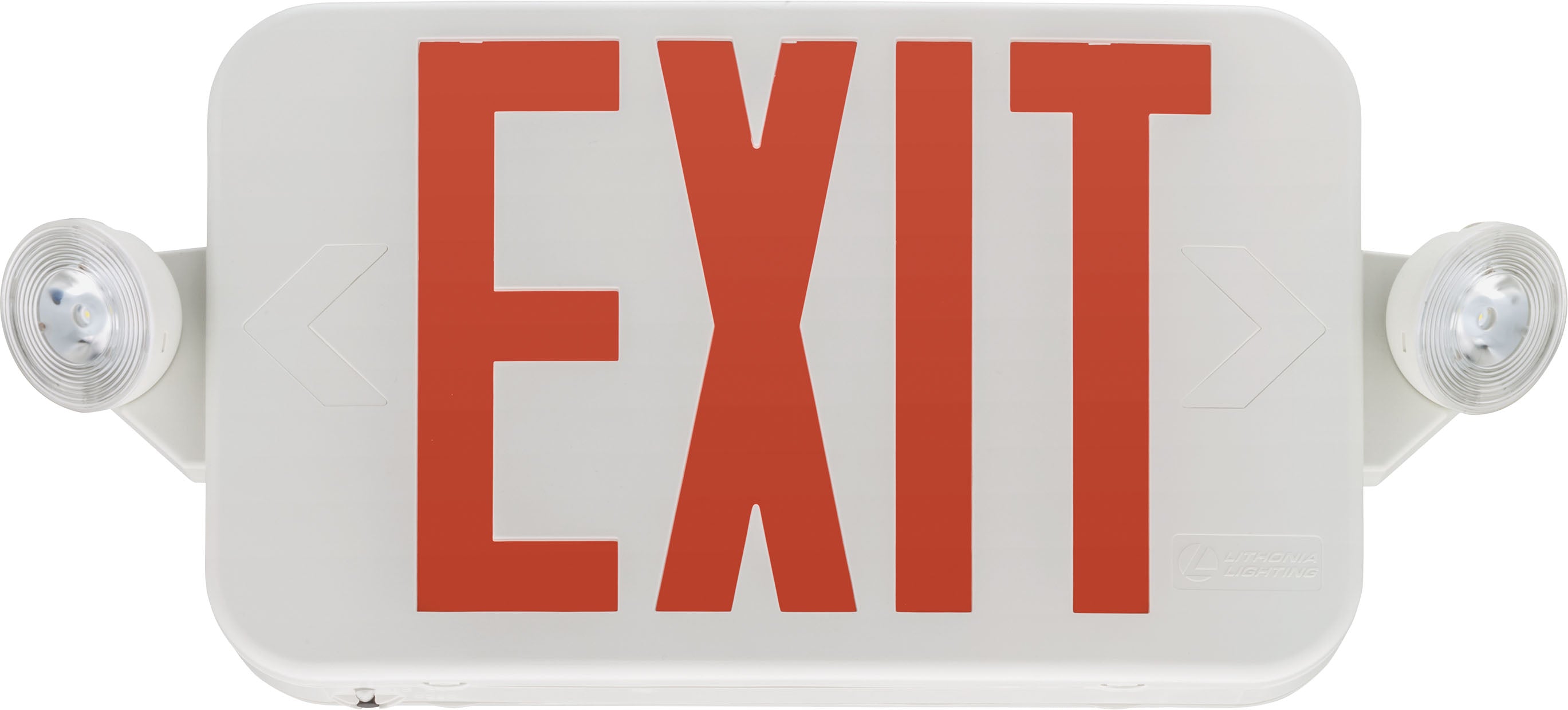

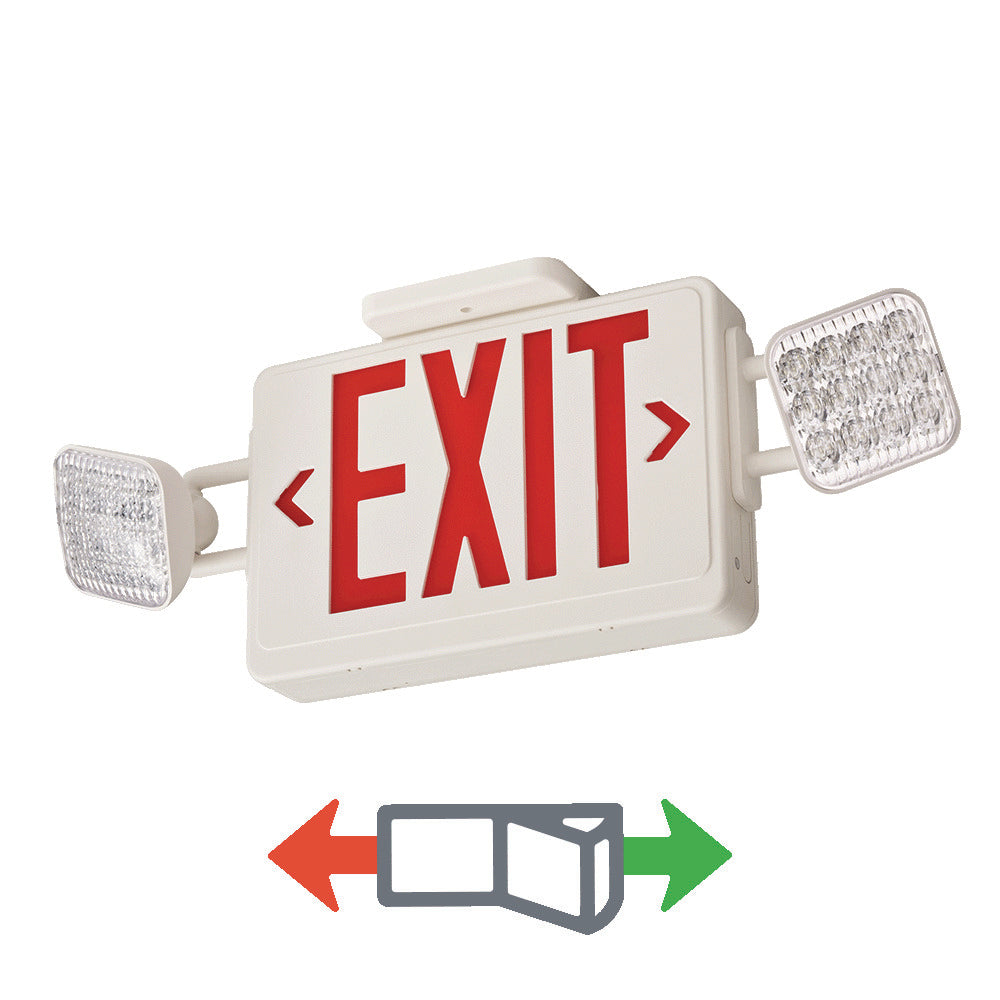

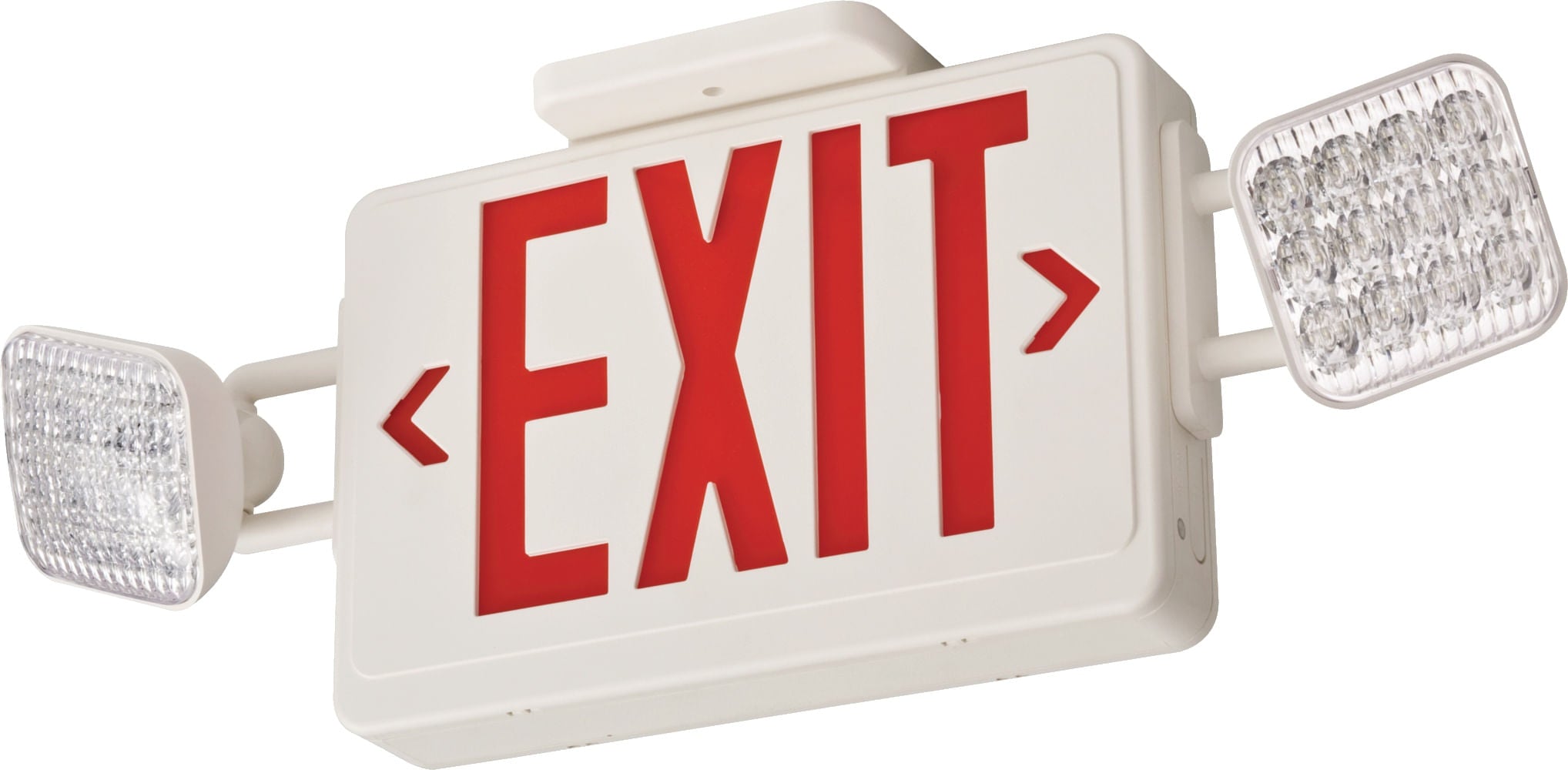

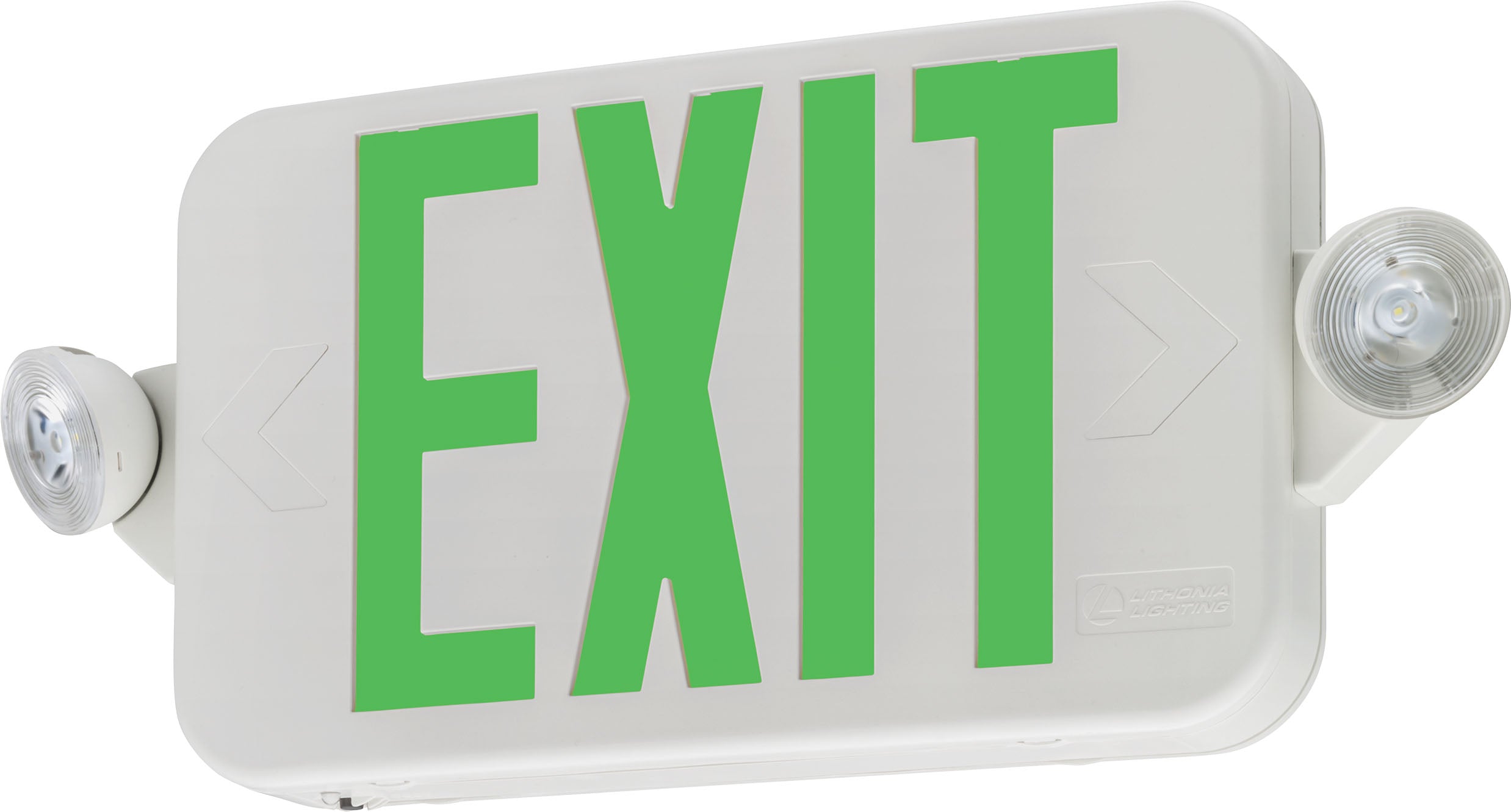

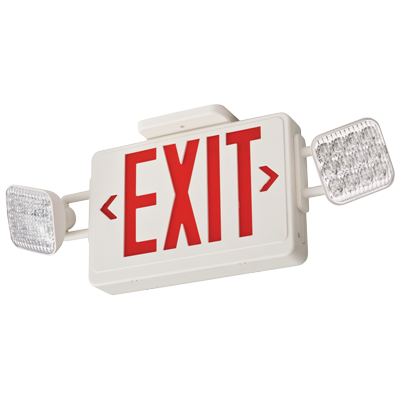

Lithonia ECRGSQM6 ECRG exit combo 90 minute (square heads) ECRGSQM6

Product Description

The Lithonia ECRGSQM6 is an ECRG series thermoplastic exit and emergency combo unit with selectable red/green lettering and two square LED lamp heads. The unit provides 90 minutes of emergency runtime, dual/multi-voltage operation (120/277 or 120-277 V), LED static light source options (85 or 113 lumens), and is UL listed for damp locations. It includes a test switch and status indicator for maintenance and verification.

• Thermoplastic housing with two square LED static lamp heads and selectable red/green lettering
• Dual/multi-voltage input (120/277 or 120-277 V) with 90 minutes emergency runtime and test switch/status indicator
• UL damp location listing and compliance with NFPA 101, NFPA 70, and UL standards; provides up to 18' spacing between units

Product Highlights

Combination exit sign and emergency lighting with selectable letter color and dual-voltage operation

Product Information

Standard Information

• Brand: LITHONIA
• Manufacturer Part Number: ECRGSQM6

Technical Specifications

• Brand: Lithonia
• Manufacturer Part Number: ECRGSQM6
• Series: ECRG
• Product Type: Emergency exit combo (exit sign with emergency lighting)
• Light Source: LED - Static
• Lamp Heads: Two square LED heads
• Lumens: 85 lm (low) / 113 lm (high)
• Color Temperature: 6200 K
• CRI: 75 - 80
• Input Voltage: 120-277 V (dual/multi-voltage)
• Emergency Runtime: 90 minutes
• Controls: Test switch; status indicator
• Housing Material: Thermoplastic
• Finish: Textured
• Mounting: Surface (top, end or back mount)
• Environmental Listing: Damp location
• Regulatory Listing: NFPA 101; NFPA 70; UL; UL924; California Title 20
• Spacing: Provides up to 18' spacing between units
• Average Life: 100,000 hours (LED)
• Shape: Square heads (unit also available with round heads)
• Dimensions: 19.09 x 4.33 x 7.95 inches
• Weight: 3.81 lb
• Application: Education; Government; Healthcare; Hospitality; House of Worship; Offices & Banks; Retail
