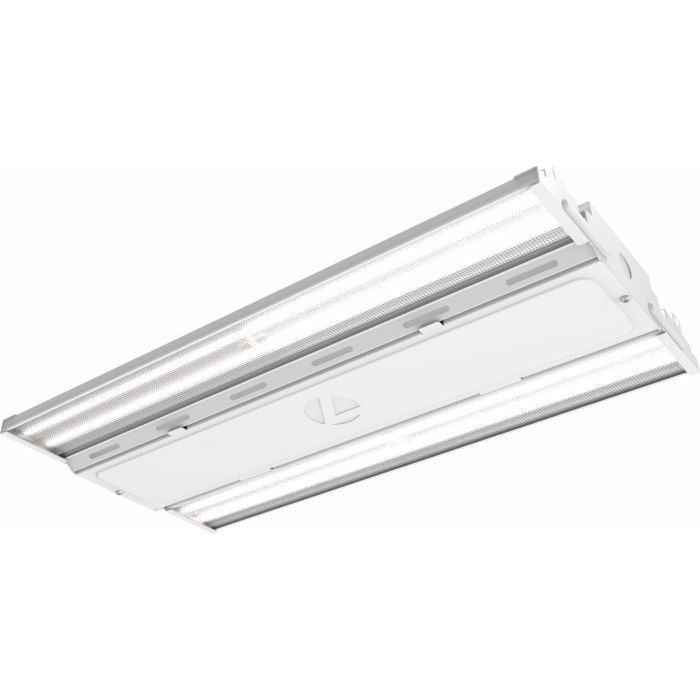

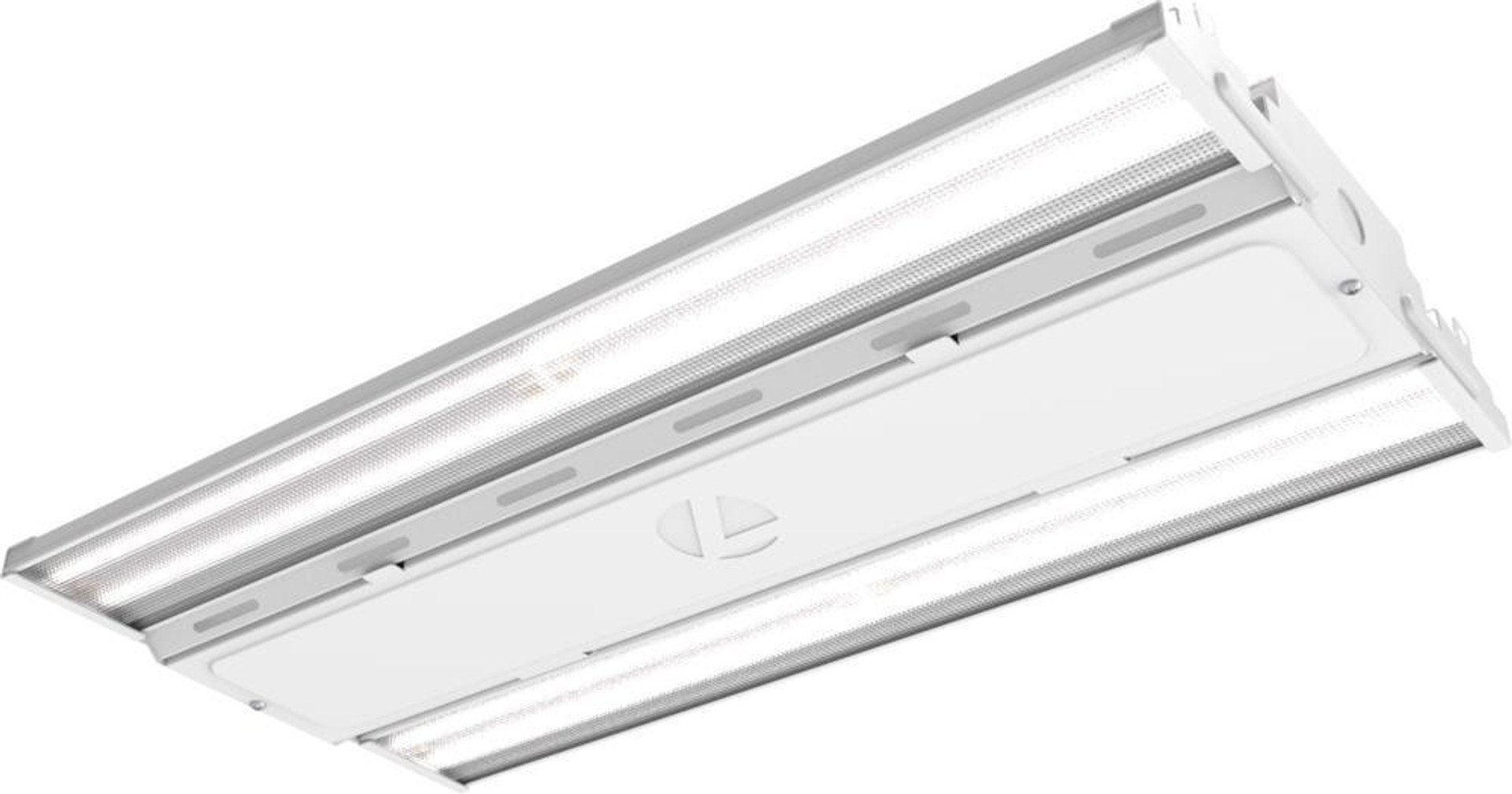

Lithonia CPHB-ALO16-MVOLT-SWW9-80CRI Compact Pro LED High Bay Light

Product Description

The Lithonia CPHB-ALO16-MVOLT-SWW9-80CRI Compact Pro LED High Bay Light is designed for industrial and warehouse settings. This high bay light fixture is hardwired and provides adjustable lumen output along with switchable white color temperatures. It is suitable for various applications and comes with 0-10V dimming capability.

• Offers illumination with multiple lumen options: 24000LM, 27000LM, and 30000LM.
• Includes switchable color temperatures: 4000K and 5000K.
• Constructed from durable die-cast aluminum, reliable in damp environments.

Product Highlights

This LED high bay light is compatible with motion sensors and is installed using various methods, such as V-hanger, chain, cable, or surface-mount brackets. It operates effectively between temperatures of -40 degrees Celsius to 55 degrees Celsius.

Product Information

Standard Information

• Brand: Lithonia
• MPN: CPHB-ALO16-MVOLT-SWW9-80CRI

Technical Specifications

• Lumens: 24000LM, 27000LM, 30000LM
• Voltage: 120V-277V
• CCT: 4000K, 5000K
• CRI: 80
• HID Equivalent: 250W, 500W, 600W HID
• Dimensions: 22.5 x 11.5 x 2.4 inches
• Weight: 8.1 lbs
• Color Rating: Damp Rated (Covered Outdoor)
• Installation: Multiple options available
• Warranty: 5 year limited warranty
