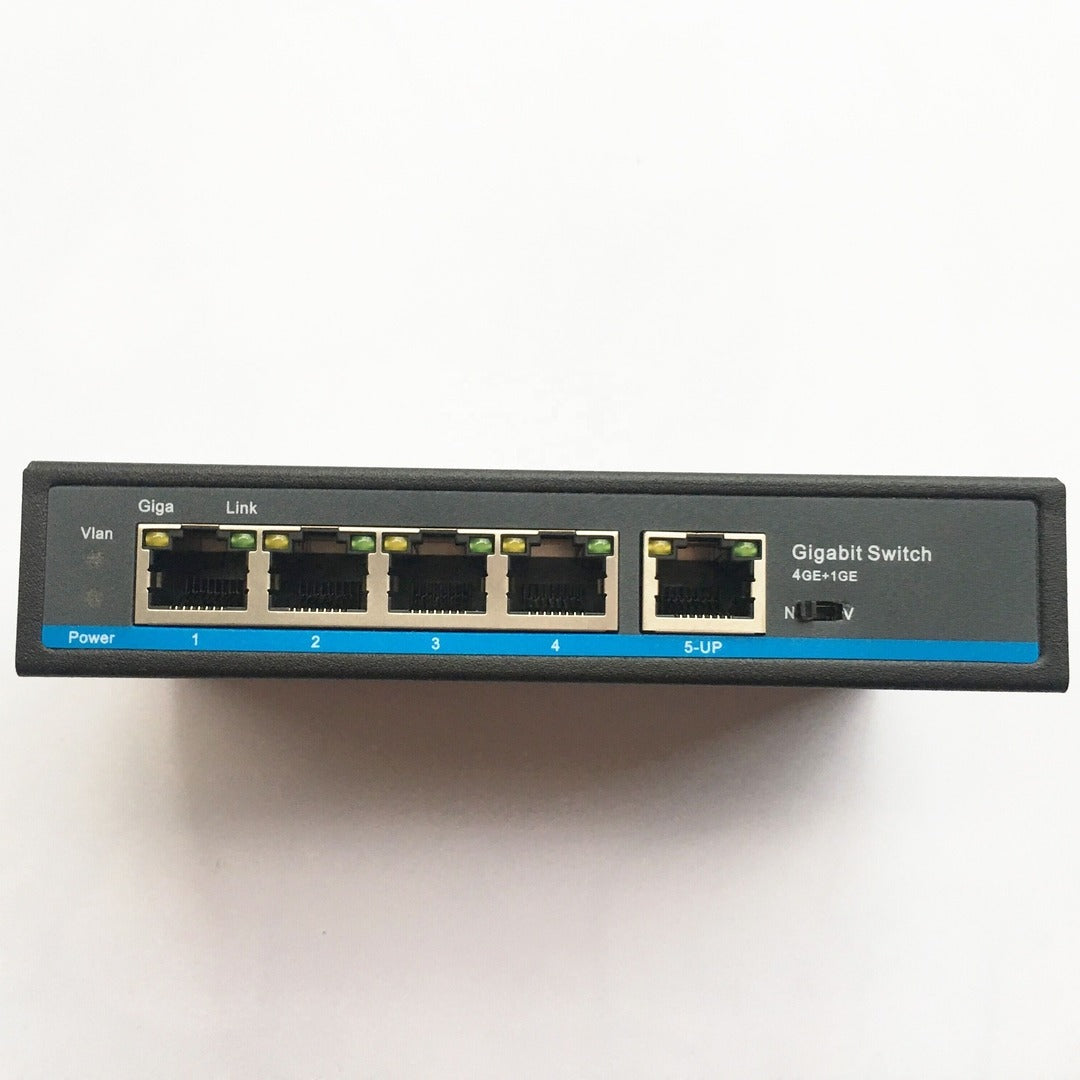

Lionbeam s600p-4g-1g-ex(65w) Poe Extender Switch 65W

Product Description

The LIONBEAM s600p-4g-1g-ex(65w) is a 4-port gigabit Power over Ethernet extender switch rated at 65 watts. It accepts a PoE++ upstream input on one 10/100/1000 Mbps RJ45 port and distributes standard PoE output across four downstream gigabit RJ45 ports. With a switching bandwidth of 10 Gbps and a MAC address table of 4K entries, it is built for expanding PoE network segments in environments where a powered switch or injector cannot reach. Network technicians and low-voltage installers deploy this unit to extend PoE coverage without running new power drops.

This extender is suited for commercial and residential installations where IP cameras, access control readers, VoIP phones, and wireless access points need both data and power beyond the reach of the primary switch. The device operates across a wide temperature range of -40 degrees F to 158 degrees F, making it usable in unconditioned spaces such as equipment closets, attic runs, and outdoor enclosures with appropriate housing. No external power supply is included; the unit draws all operating power from the upstream PoE++ source.

Key Features

• 1 upstream PoE++ input port (10/100/1000 Mbps RJ45) for pass-through power and data
• 4 downstream standard PoE output ports (10/100/1000 Mbps RJ45)
• 65-watt total PoE budget distributed across downstream ports
• 10 Gbps switching bandwidth with 4K MAC address table
• Wide operating range: -40 degrees F to 158 degrees F
• Supports IEEE 802.3af and IEEE 802.3at PoE standards on downstream ports

Compatibility

Designed as an extender for PoE++ upstream sources compliant with IEEE 802.3bt; downstream ports supply IEEE 802.3af and IEEE 802.3at power to connected devices. Compatible with Cat5 or better UTP/STP cabling up to 150 meters per segment.

Installation Notes

Installation is typically performed by a licensed low-voltage or network technician. Power down upstream switching equipment before connecting or disconnecting the extender. Use Cat5 or higher-rated UTP or STP cable and verify that cable runs do not exceed 150 meters to maintain gigabit link integrity. No external power supply is required, but the upstream switch or injector must support PoE++ output sufficient to power both the extender and all connected downstream devices.
