Lionbeam poe-ex2001w Gigabit Poe Extender 802.3af/at IP65

Product Description

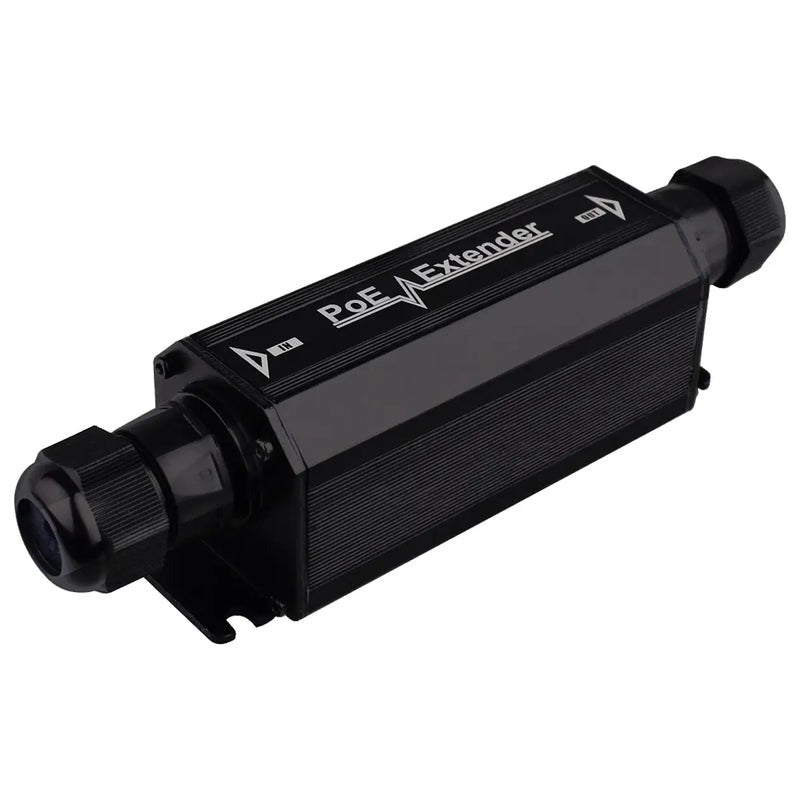

The LIONBEAM poe-ex2001w is a single-port, waterproof Power over Ethernet extender rated IP65 for outdoor installation. It regenerates both the power signal and data signal carried over Cat5 or Cat6 cabling, allowing IP camera runs to reach distances of 200 to 300 feet per unit before another extender is required. The unit supports full Gigabit speeds at 10/100/1000 Mbps and complies with IEEE 802.3af and 802.3at PoE standards. No separate power supply is needed — the extender draws power directly from the PoE signal on the line. Network technicians and security system installers use this device to push IP camera infrastructure beyond standard PoE distance limits without adding power drops.

The poe-ex2001w is suited for outdoor IP camera installations in residential and commercial applications where cable runs exceed standard PoE reach. It is compatible with both Mode A and Mode B PoE configurations. Up to three units can be chained on a single camera run, extending total system reach well beyond a single 100-meter segment. The extender works with Cat5 or Cat6 cabling, which is sold separately. Its IP65 enclosure rating makes it appropriate for exposed or semi-exposed outdoor mounting locations subject to dust and water exposure.

Key Features

• IP65-rated waterproof enclosure suitable for outdoor deployment
• Extends PoE signal and data 200 to 300 feet per unit
• Supports 10/100/1000 Mbps Gigabit throughput on a single port
• Compatible with IEEE 802.3af and 802.3at PoE standards
• Compatible with Mode A and Mode B PoE wiring configurations
• Passively powered — requires no external power source
• Up to 3 units can be cascaded on a single camera run

Compatibility

Compatible with IEEE 802.3af and 802.3at PoE switches and injectors using Mode A or Mode B configurations over Cat5 or Cat6 cabling.

Installation Notes

Installation is typically performed by low-voltage technicians or security system installers. Ensure the upstream PoE switch or injector is powered down before making cable connections. Cat5 or Cat6 patch cables are required and sold separately. When mounting outdoors, verify the enclosure seal is intact and position the unit to minimize direct water pooling on cable entry points.

Technical Specifications

• Port Count: 1
• Data Rate: 10/100/1000 Mbps (Gigabit)
• PoE Standard: IEEE 802.3af / 802.3at
• PoE Mode Compatibility: Mode A and Mode B
• Signal Extension per Unit: 200 to 300 feet
• Max Units per Camera Run: 3
• Enclosure Rating: IP65
• External Power Required: None
• Compatible Cable Types: Cat5, Cat6

Standard Information

• Brand: LIONBEAM
• Manufacturer Part Number: poe-ex2001w
