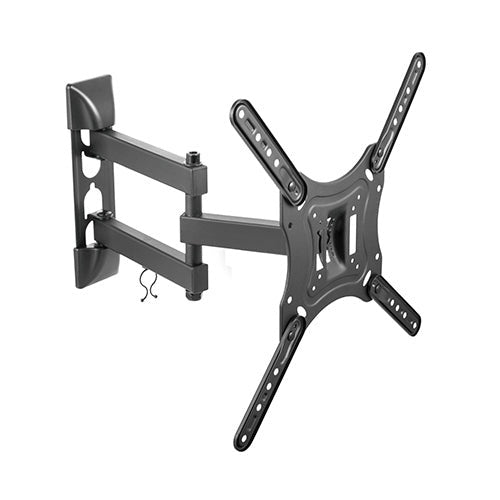

Lionbeam lbpa51-443 Full-motion Tv Wall Mount 23-55 Inches

Product Description

The LIONBEAM lbpa51-443 is a full-motion TV wall mount designed for flat-panel displays ranging from 23 inches to 55 inches. It supports a maximum load of 66 pounds and delivers a full range of articulation: tilt from +3 to -10 degrees and swivel from +90 to -90 degrees. The adjustable arm extends from 2.4 inches to 15 inches off the wall, allowing installers to position the display for optimal sightlines. An integrated cable management channel routes connected cables cleanly behind the arm. This mount is appropriate for residential and light commercial AV installations performed by AV integrators, electricians, or experienced general contractors.

The lbpa51-443 is suited for living rooms, conference rooms, classrooms, and other spaces requiring multi-angle monitor viewing. The free-tilting design lets the installer fine-tune the vertical angle after the initial mount without tools. VESA hole-pattern compatibility spans a wide range of common display back-plate configurations, making this mount usable across many flat-panel brands and series without adapters.

Key Features

• Full-motion articulating arm with +90 to -90 degree swivel range
• Tilt range of +3 to -10 degrees for vertical viewing angle adjustment
• Extension depth adjustable from 2.4 inches to 15 inches off the wall surface
• Supports displays from 23 inches to 55 inches with a 66-pound weight capacity
• Integrated cable management channel conceals attached display cables
• VESA compatible with multiple hole patterns from 100x100 to 400x400

Compatibility

Compatible with flat-panel displays from 23 inches to 55 inches featuring VESA mounting patterns of 100x100, 100x200, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, or 400x400 millimeters, provided the display does not exceed 66 pounds.

Installation Notes

Installation should be performed by a qualified installer with access to appropriate wall-anchoring hardware for the specific wall construction, whether wood stud, concrete, or masonry. Locate and fasten to structural members or use rated anchors rated for the combined load of the mount and display. Power down and disconnect all cables from the display before mounting. Verify that all articulating arm lock knobs and bolts are fully tightened before releasing the display.

Technical Specifications

• Compatible Display Size: 23 inches to 55 inches
• Weight Capacity: 66 pounds
• Wall Standoff Range: 2.4 inches to 15 inches
• Tilt Range: +3 to -10 degrees
• Swivel Range: +90 to -90 degrees
• VESA Compatibility: 100x100, 100x200, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400 mm

Standard Information

• Brand: LIONBEAM
• Manufacturer Part Number: lbpa51-443
