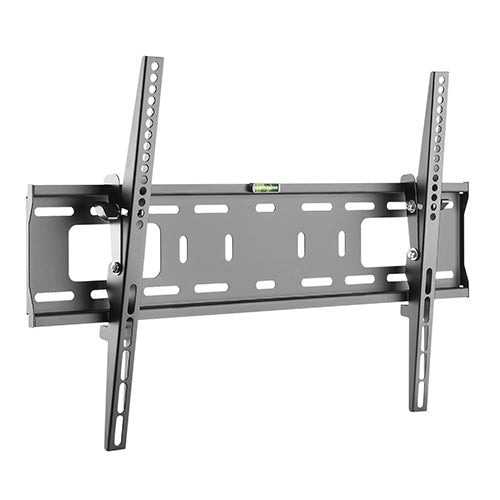

Lionbeam lbp42-46st Tilt Tv Wall Mount 37-70 Inch Vesa 600x400

Product Description

The LIONBEAM lbp42-46st is a fixed-position tilt TV wall mount built for flat-panel and curved screens ranging from 37 to 70 inches. Constructed from cold-rolled steel with a powder-coated matte black finish, it provides a rated weight capacity of 110 pounds while keeping a low wall profile of just 1.6 inches. The bracket arm and wall plate each use 1.5mm cold-rolled sheet steel. A built-in tilt range of 0 to -10 degrees allows the installer to angle the display downward for glare reduction or elevated mounting positions. Installation requires attachment to a solid wall or double-stud configuration at standard stud spacings of 406mm, 450mm, or 600mm. A hook-on bubble level is included to aid alignment during mounting.

This mount is suited for residential home theater and living room installations where a low-profile, fixed wall mount with tilt adjustment is needed. It is compatible with both flat-panel and curved TVs from 37 to 70 inches. The detachable panel design allows the screen to be hung onto the wall plate after the plate is secured to the wall, simplifying single-person installation. Licensed general contractors, AV installers, and experienced DIYers familiar with wall framing and fastener selection are the typical installers for this product type.

Key Features

• Supports screens 37 to 70 inches including curved panels
• 110-pound weight capacity, strength tested to three times rated load
• 0 to -10 degree tilt range for downward viewing angle adjustment
• 1.6-inch wall profile keeps the display close to the wall surface
• VESA compatible up to 600x400mm including 200x200, 400x200, 300x300, and 400x400 patterns
• Detachable panel wall plate simplifies hanging the TV after wall plate installation
• Hook-on bubble level included for accurate alignment

Compatibility

Compatible with flat-panel and curved TVs from 37 to 70 inches using VESA hole patterns of 200x200, 400x200, 300x300, 400x400, or 600x400mm. Requires installation into a solid wall or double-stud framing at stud spacings of 406mm, 450mm, or 600mm.

Installation Notes

Installation should be performed by someone familiar with wall framing, fastener load ratings, and stud-finding procedures. Confirm stud location and fastener pull-out capacity before mounting, as incorrect fastener selection is the primary cause of mount failure. Power down and disconnect all cables from the TV before lifting it onto the mount. Do not exceed the 110-pound rated weight capacity.

Technical Specifications

• Weight Capacity: 110 pounds
• Compatible Screen Size: 37 to 70 inches
• Tilt Range: 0 to -10 degrees
• Wall Profile Depth: 1.6 inches
• Mount Dimensions: 25.7 x 16.7 x 1.6 inches
• Max VESA Pattern: 600x400mm
• Supported VESA Patterns: 200x200, 400x200, 300x300, 400x400, 600x400
• Material: Steel, Plastic
• Metal Sheet Thickness: 1.5mm cold-rolled sheet (bracket arm and wall plate)
• Surface Finish: Powder Coating
• Color: Matte Black
• Curved TV Compatible: Yes
• Wall Type: Solid Wall or Double Stud at 406mm, 450mm, or 600mm spacing
• Panel Type: Detachable Panel
• Bubble Level: Hook-on bubble level included

Standard Information

• Brand: LIONBEAM
• Manufacturer Part Number: lbp42-46st
