Lionbeam lb-w5eylcmp Cat 5e Cmp Plenum Cable 1000 Ft

Product Description

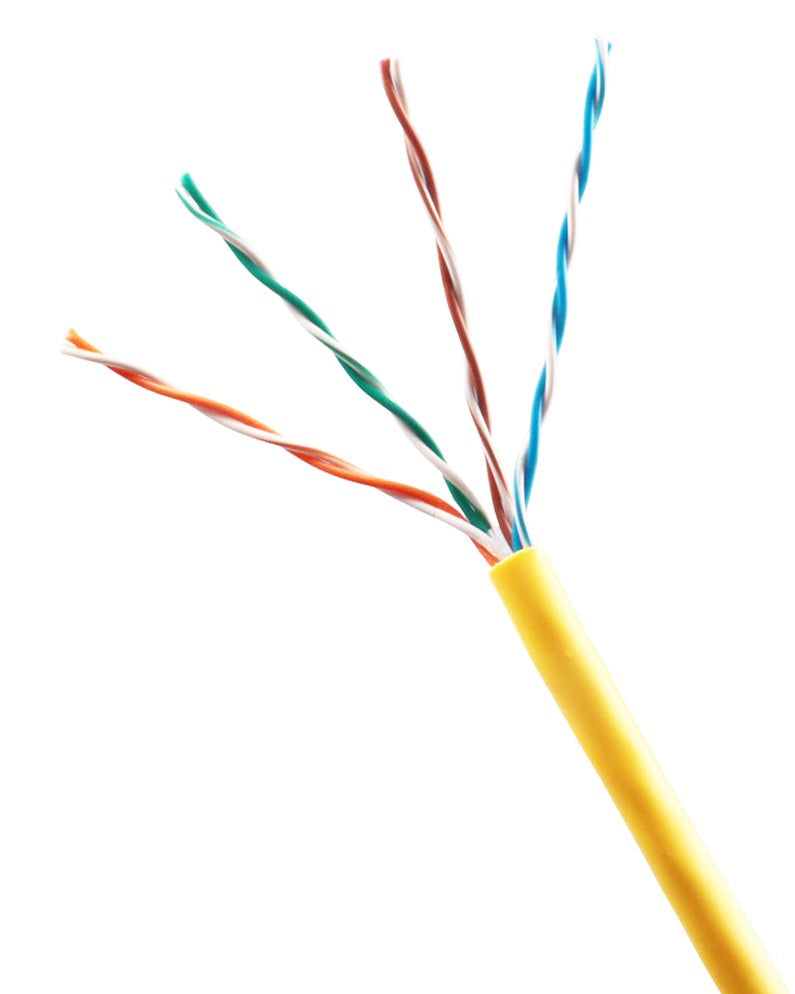

The LIONBEAM lb-w5eylcmp is a Category 5e CMP-rated plenum cable supplied in a 1000-foot pull box with a yellow jacket. CMP (Communications Multipurpose Plenum) rating means the cable meets fire-resistance and low-smoke requirements for installation in air-handling spaces such as dropped ceilings and raised floors. Cat 5e supports network speeds up to 1 Gbps and frequencies up to 100 MHz, making it a proven choice for structured wiring projects. The pull box format keeps cable organized and tangle-free during installation, reducing waste and labor time on the job.

This cable is suited for commercial and residential structured cabling installations where plenum-rated material is required by code. Typical applications include horizontal runs from telecom rooms to workstations, patch panel terminations, VoIP phone systems, and IP security camera infrastructure. The yellow jacket aids in visual identification during cable management and future troubleshooting.

Key Features

• CMP plenum rating meets fire and smoke requirements for air-handling plenum spaces
• Cat 5e specification supports up to 1 Gbps Ethernet and 100 MHz bandwidth
• 1000-foot pull box allows controlled, kink-free cable deployment
• Yellow jacket provides easy visual identification in multi-cable installations
• Suitable for both commercial and residential structured wiring applications

Compatibility

Designed as a standard Cat 5e plenum-rated structured cabling solution compatible with RJ-45 keystone jacks, patch panels, and modular plugs that accept 24 AWG solid conductors typical of Cat 5e horizontal cable.

Installation Notes

Installation of plenum-rated network cable should be performed by a licensed low-voltage or communications cabling technician in accordance with ANSI/TIA-568 structured cabling standards and local building codes. Always verify that the plenum designation is required by the authority having jurisdiction before substituting CMP cable for CMR or CM-rated alternatives. De-energize any adjacent power circuits before pulling cable through shared pathways, and maintain minimum bend radius to avoid degrading cable performance. Terminate conductors with the appropriate 110-style punch-down tool or RJ-45 crimp tool rated for Cat 5e.
