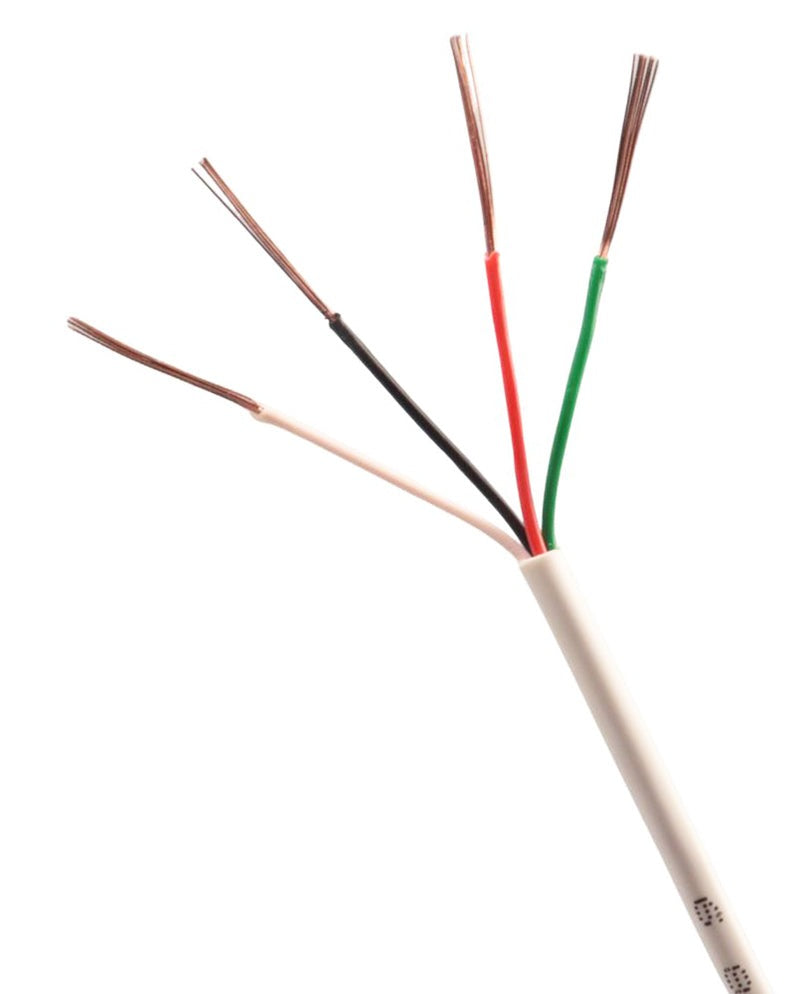

Lionbeam lb-w224sw 22/4 Str Cmr Cable White 1000 Ft

Product Description

The LIONBEAM lb-w224sw is a 22 AWG, 4-conductor stranded CMR-rated cable supplied on a 1000-foot pull box in white jacket. CMR (Communications Multipurpose Riser) rating qualifies this cable for in-wall and riser installations where flame-spread performance is required by code. The stranded conductor construction provides flexibility during routing, reducing the risk of breakage in tight bends or long runs. This cable is intended for installation by alarm technicians, security integrators, and low-voltage contractors working on structured wiring, fire alarm signaling, or access control projects.

This cable is well-suited for residential and light commercial low-voltage wiring applications including security alarm panels, door and window contact loops, motion detector wiring, intercom systems, and similar 4-conductor signal circuits. The pull box format allows clean, controlled feeding of cable during installation, minimizing tangling and reducing material waste on the job site. The white jacket blends with standard interior surfaces, reducing the need for additional cosmetic cover work in finished spaces.

Key Features

• 22 AWG, 4-conductor stranded configuration for flexibility in routing
• CMR riser rating meets NEC Article 800 requirements for in-wall and riser use
• 1000-foot pull box enables controlled, tangle-free cable feeding
• White PVC jacket suitable for finished interior environments
• Stranded conductors reduce fatigue cracking in installations with repeated movement or tight bends

Compatibility

Designed as a general-purpose 22/4 stranded CMR riser cable for low-voltage signal wiring applications including security systems, access control, and intercom circuits in residential and light commercial construction.

Installation Notes

Installation should be performed by a licensed low-voltage or alarm contractor in accordance with NEC Article 800 and applicable local codes. De-energize all connected panels and equipment before terminating conductors. CMR-rated cable must not be substituted for CMP (plenum) cable in air-handling spaces. Use appropriate low-voltage staples or cable supports at intervals required by the authority having jurisdiction to avoid damage to the cable jacket.

Technical Specifications

• Conductor Gauge: 22 AWG
• Number of Conductors: 4
• Conductor Type: Stranded
• Cable Rating: CMR (Riser)
• Jacket Color: White
• Cable Length: 1000 feet
• Packaging: Pull Box

Standard Information

• Brand: LIONBEAM
• Manufacturer Part Number: lb-w224sw
