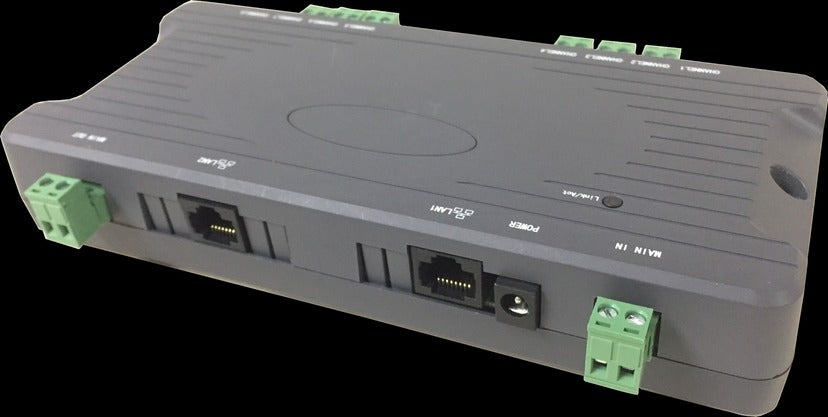

Lionbeam lb-n2w-tr8m Ethernet Poe 2-wire Transmitter 8 Port

Product Description

The LIONBEAM lb-n2w-tr8m is an 8-port master transmitter that extends Ethernet and Power over Ethernet (PoE) across existing two-conductor wiring. It converts a standard Ethernet and PoE input into a signal format capable of traveling long distances over legacy two-wire infrastructure, then restores full Ethernet and PoE output at each endpoint when paired with compatible receivers. The unit supports up to 8 remote receivers simultaneously, making it a practical solution for retrofit deployments where pulling new Cat cable is not feasible. Low-voltage and data installation technicians are the primary installers.

This transmitter is designed for retrofit and upgrade projects in residential and commercial buildings where existing two-conductor wiring is already in place. Typical applications include extending network reach to IP cameras, access control readers, intercoms, and other PoE-powered devices without new cable runs. The lb-n2w-tr8m mounts inside equipment rooms, network cabinets, or structured wiring enclosures, centralizing distribution for up to 8 remote endpoints across a facility.

Key Features

• Supports up to 8 remote receiver endpoints from a single master unit
• Transmits Ethernet data and PoE power over existing two-conductor wiring
• Eliminates the need for new Cat cable in retrofit and building upgrade projects
• Restores full Ethernet and PoE output at each endpoint when paired with matching receivers
• Mounts inside standard equipment rooms, cabinets, or structured wiring enclosures

Compatibility

Designed for use with matching LIONBEAM lb-n2w-series receivers in retrofit Ethernet and PoE extension systems. Compatible endpoint devices include IP cameras, access control readers, and other standard PoE-powered equipment.

Installation Notes

Installation should be performed by a licensed low-voltage or data network technician familiar with PoE systems and structured wiring practices. Power down all connected PoE source equipment and de-energize the existing two-wire circuit before making connections. Follow NEC Article 725 guidelines for low-voltage wiring where applicable. Do not exceed the rated number of connected receivers, and verify that existing two-conductor wiring meets the minimum gauge and distance requirements specified by the manufacturer.

Technical Specifications

• Number of Ports: 8
• Signal Type: Ethernet and PoE over 2-wire
• Unit Type: Master Transmitter

Standard Information

• Brand: LIONBEAM
• Manufacturer Part Number: lb-n2w-tr8m
