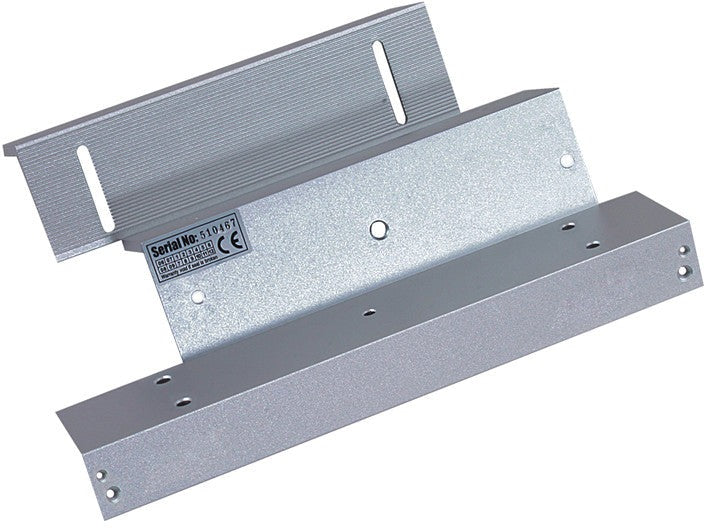

Lionbeam lb-mlbzl1200 Z L Bracket 1200 Lb Magnetic Lock

Product Description

The LIONBEAM lb-mlbzl1200 is a Z and L type mounting bracket designed to install a 1200 lb (500 kg) electromagnetic lock on frameless glass door applications. Machined from high-strength aluminum with a sandblast and anodized finish, this bracket provides a rigid, corrosion-resistant mounting interface between the lock body and the door frame. It is engineered for 90-degree door swing configurations and is compatible with the LIONBEAM LB-MLD1200D magnetic lock. Licensed security technicians and access control installers handle this type of hardware in commercial and light-commercial entry applications.

This bracket is suited for frameless glass door installations where a standard flat mounting surface is not available. The Z and L geometry offsets the lock body from the frame and door edge, allowing the magnetic lock to achieve full face-to-face contact with the armature plate on a 90-degree swinging door. It is a common hardware component in office lobbies, server rooms, and secured entry corridors where frameless glass is the architectural standard.

Key Features

• Z and L bracket geometry designed for frameless glass door installations
• Rated for use with 1200 lb electromagnetic locks
• High-strength aluminum construction with sandblast and anodized finish
• Supports 90-degree door swing configurations
• Designed for use with LIONBEAM VIANS Electromagnetic Lock Series

Compatibility

Designed for use with the LIONBEAM LB-MLD1200D 1200 lb electromagnetic lock and the LIONBEAM VIANS Electromagnetic Lock Series on frameless glass door applications with a 90-degree opening mode.

Installation Notes

Installation should be performed by a licensed access control or security systems technician. Disconnect power to the electromagnetic lock and the access control panel before mounting or wiring any hardware. Verify that all fasteners are tightened securely and that the armature plate achieves full face-to-face contact with the lock face before restoring power. Local building and fire codes may govern fail-safe versus fail-secure lock configurations — confirm compliance before commissioning.

Technical Specifications

• Material: High-strength aluminum
• Finish: Sandblast and anodized aluminum
• Door Type: Frameless glass door
• Opening Mode: 90-degree door swing
• Lock Holding Force Compatibility: 1200 lb (500 kg)
• Compatible Lock Series: LIONBEAM VIANS Electromagnetic Lock Series

Standard Information

• Brand: LIONBEAM
• Manufacturer Part Number: lb-mlbzl1200
