Lionbeam lb-ml600t L Bracket Magnetic Lock 600 Lbs

Product Description

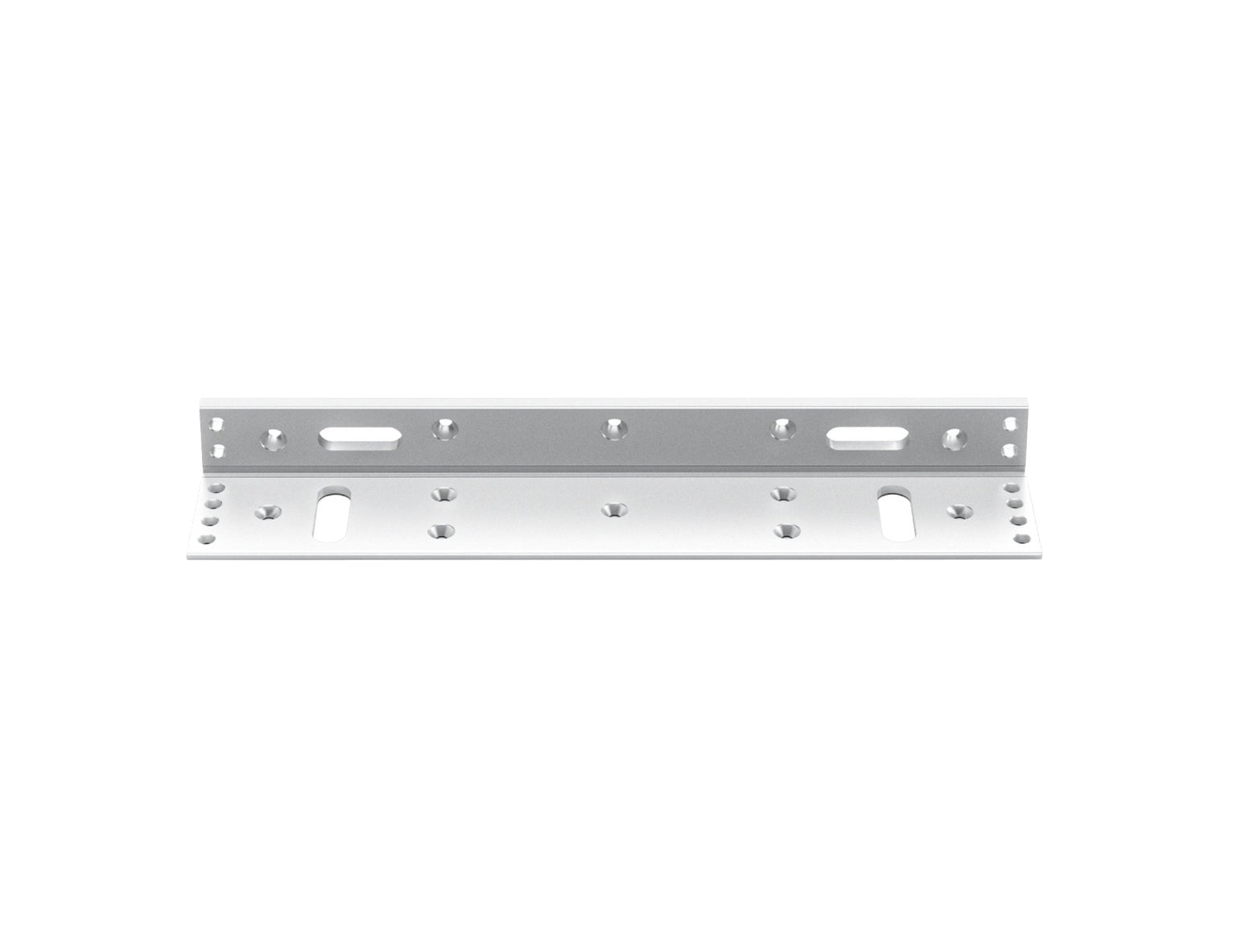

The LIONBEAM lb-ml600t is an aluminum alloy L-type mounting bracket designed to pair with 600-pound-rated electromagnetic locks. It positions the lock armature at a 90-degree angle relative to the door frame, making it the correct hardware for doors that swing outward or where the frame geometry does not allow for standard surface mounting. Installation is handled by licensed access control technicians and low-voltage security system installers. The bracket is rated to support a lock holding force of 280 kg (600 lbs) and meets CE, FCC, and ROHS certification standards, making it suitable for commercial and light industrial access control deployments.

The lb-ml600t is built for applications where a direct-mount configuration is not possible due to frame depth, door swing direction, or structural constraints. It is suited for wooden doors, metal doors, and narrow-frame doors that open toward the outside. This bracket is commonly specified in new access control installations and as a replacement component when existing hardware is damaged or incompatible with a 600-lb electromagnetic lock upgrade.

Key Features

• L-type bracket geometry accommodates 90-degree outswing door installations
• Supports electromagnetic lock holding force up to 280 kg (600 lbs)
• Aluminum alloy construction for corrosion resistance and low profile weight
• Compatible with wooden, metal, and narrow-frame door types
• CE, FCC, and ROHS certified

Compatibility

Designed for use with 600-lb-rated electromagnetic locks requiring an L-type mounting bracket. Suitable for wooden doors, metal doors, and narrow-frame doors that open toward the outside.

Installation Notes

Installation should be performed by a qualified low-voltage technician or licensed access control installer in accordance with applicable local codes. Power down the electromagnetic lock and de-energize the access control circuit before mounting or adjusting the bracket. Verify door frame material and depth before drilling to ensure adequate fastener engagement. Do not overtighten fasteners into aluminum to avoid stripping the bracket mounting holes.

Technical Specifications

• Holding Force: 280 kg (600 lbs)
• Open Mode: 90 degrees door
• Material: Aluminum Alloy
• Bracket Type: L type
• Suitable Door Types: Wooden door, metal door, narrow frame door opening outward
• Certifications: CE, FCC, ROHS

Standard Information

• Brand: LIONBEAM
• Manufacturer Part Number: lb-ml600t
