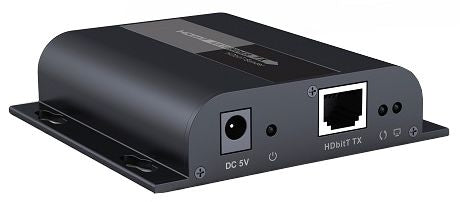

Lionbeam LB-HDMI-REC100 Hdmi Over Ip Receiver 1080p 393ft Ir

Product Description

The LIONBEAM LB-HDMI-REC100 is an HDMI-over-IP receiver designed to extend full HD 1080p video signals up to 393 feet (120 meters) over a standard IP network. The unit receives a compressed HDMI signal transmitted across a CAT5e or CAT6 network infrastructure and outputs it to a connected display. It includes an IR signal path that allows technicians or installers to send remote control commands back to the source device from the display location. Automatic cable-length adjustment helps maintain signal integrity without manual configuration. AV integrators and low-voltage technicians install this unit as part of a point-to-point or distributed video system.

The LB-HDMI-REC100 is suited for commercial AV distribution applications where HDMI signals need to travel beyond the 50-foot limit of standard HDMI cables. It works within an existing IP network infrastructure, supporting both signal extension to a single display and signal splitting to multiple displays via a compatible network switch. Typical install scenarios include conference rooms, digital signage, classrooms, and multi-display retail environments where the source and display are in separate locations.

Key Features

• Extends full HD 1080p HDMI signal up to 393 feet over an IP network
• Compatible with existing network infrastructure using standard network switches
• Supports both signal extension and signal splitting to multiple displays
• IR signal transmission enables remote control of the source device from the display end
• Intelligent auto-adjustment compensates for cable length variations to maintain signal quality

Compatibility

Designed as an OEM-style receiver for HDbitT-based HDMI-over-IP distribution systems. Intended for use with a compatible HDMI-over-IP transmitter unit operating on the same network segment.

Installation Notes

Installation should be performed by a qualified low-voltage technician familiar with IP networking and AV distribution systems. Power down all connected source devices and displays before making HDMI and network connections. Use CAT5e or CAT6 Ethernet cabling between the transmitter, network switch, and this receiver unit to achieve rated transmission distances. Follow NEC Class 2 low-voltage wiring guidelines where applicable for in-wall cable runs.

Technical Specifications

• Video Resolution: Full HD 1080p
• Maximum Transmission Distance: 393 feet (120 meters)
• Signal Transmission Medium: IP network (CAT5e or CAT6)
• IR Support: Yes

Standard Information

• Brand: LIONBEAM
• Manufacturer Part Number: LB-HDMI-REC100
