Lionbeam LB-HDMI-EXT501 hdmi over cat 6 4k 230ft ir poc looping output edid

Product Description

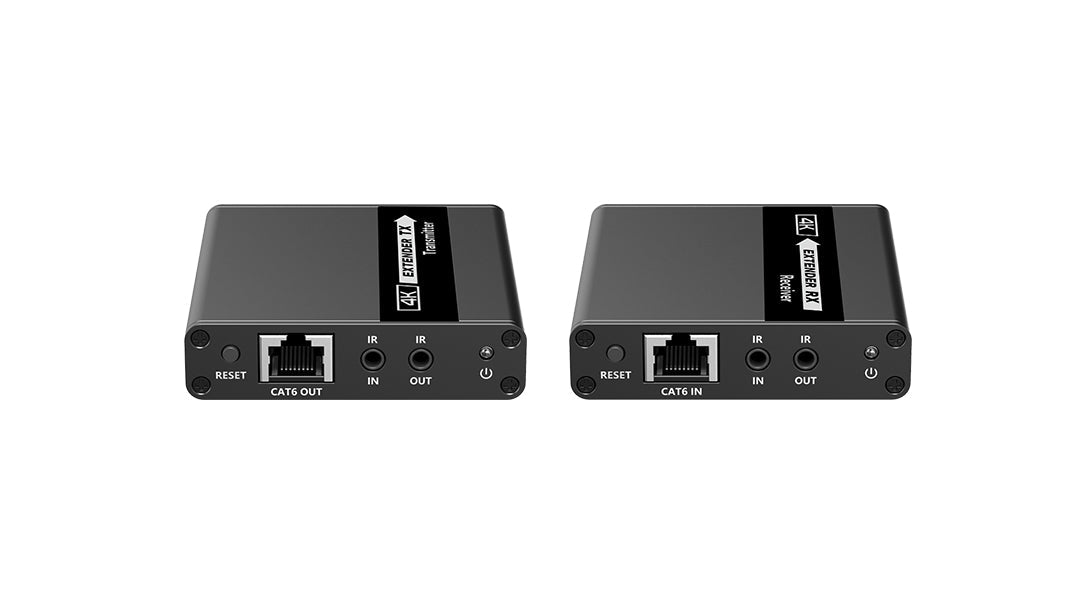

The LIONBEAM LB-HDMI-EXT501 HDMI Extender includes a transmitter and receiver, transmitting HDMI signals up to 70 meters at 1920x1080p@60Hz via Cat6/6A/7 cable. It features point-to-point configuration, bi-directional IR pass-back, and 3.5mm stereo audio output. Ideal for advertising, monitoring, entertainment, and conferences.

• Zero latency transmission.
• Supports up to 4K@30Hz resolution.
• Supports bi-directional IR pass-back function (20~60KHz).

Product Highlights

Supports HDR10 and EDID pass-through. Features surge, lightning, and ESD protection. Supports PoC, requiring only Tx power.

Product Information

Standard Information

• Brand: LIONBEAM
• Manufacturer Part Number: LB-HDMI-EXT501

Technical Specifications

• Resolution Support: Up to 4K@30Hz
• Cable Support: Cat6/6A/7 network cables
• 1080P@60Hz Transmission Distance: Up to 70 meters
• 4k@30Hz Transmission Distance: Up to 40 meters
• IR Pass-back: Bi-directional (20~60KHz)
• HDMI Loop Out: Transmitter supports
• HDR: HDR10
• EDID: Pass-through
• Audio Output: 3.5mm stereo audio port
• Protection: Surge Protection, Lightning Protection, ESD Protection
• Power: PoC(power over network), only Tx power is needed
