Lionbeam LB-HDMI-EXT500 Hdmi Extender Cat6 1080p 130ft

Product Description

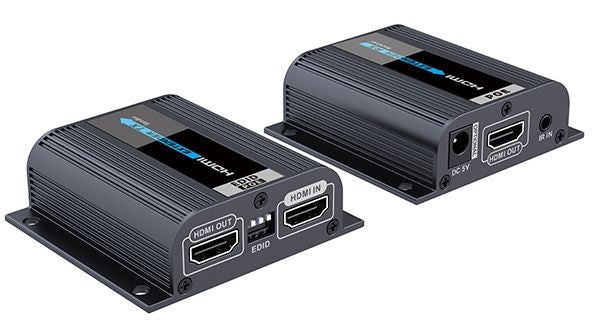

The LIONBEAM LB-HDMI-EXT500 is an HDMI extender kit that transmits uncompressed full HD video signals over standard network cable. The kit includes one transmitter unit (TX) and one receiver unit (RX) that operate as a paired set. It extends an HDMI signal up to 130 feet (40 meters) using CAT6, CAT6A, or CAT7 cable with zero latency. The system supports Power over Cable (PoC), meaning only the transmitter requires a power supply connection — the transmitter powers the receiver through the network cable. An onboard EDID switch allows the installer to set the required HDMI signal format for the connected display.

The LB-HDMI-EXT500 is suited for professional AV installations where a source device and display are separated by long cable runs. Typical applications include HD conference room systems, digital signage, multimedia classrooms, and HD video production environments. The built-in IR passback channel allows a user at the display end to send remote control signals back to the source device at the transmitter location, eliminating the need for a separate IR distribution system.

Key Features

• Extends HDMI up to 130 feet over CAT6, CAT6A, or CAT7 cable
• Transmits uncompressed 1080p at 60Hz with zero latency
• Power over Cable (PoC): transmitter powers the receiver through the network cable
• EDID switch for selecting required HDMI signal format
• IR passback channel for remote control of source device from the display location
• Looping HDMI output on transmitter for local monitor connection

Compatibility

Designed for use with HDMI source devices and displays supporting 1080p resolution. Compatible with CAT6, CAT6A, and CAT7 network cable installations.

Installation Notes

Installation is typically performed by a licensed AV technician or low-voltage installer. Power down all connected source and display equipment before connecting the TX and RX units. Connect the power supply to the transmitter unit only — do not apply a separate power supply to the receiver unit. Verify cable termination and cable category before powering up the system to ensure signal integrity at full extension distance.

Technical Specifications

• Maximum Transmission Distance: 130 feet (40 meters)
• Video Resolution: 1080p at 60Hz
• Cable Type: CAT6, CAT6A, or CAT7
• Signal Compression: Uncompressed
• Latency: Zero latency
• Power Method: Power over Cable (PoC) — transmitter-powered
• IR Passback: Yes
• EDID Support: Yes, with onboard EDID switch

Standard Information

• Brand: LIONBEAM
• Manufacturer Part Number: LB-HDMI-EXT500
