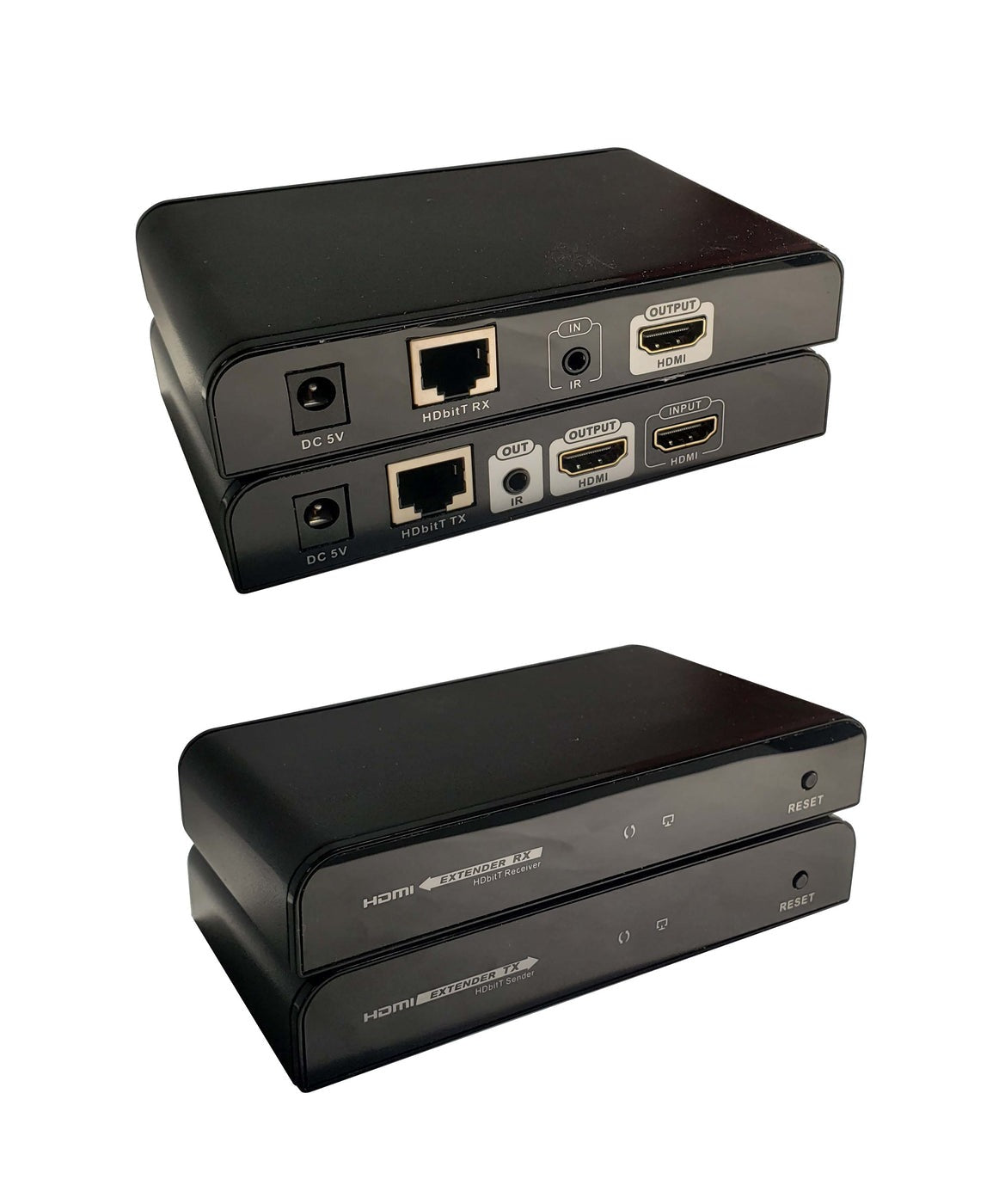

Lionbeam lb-hdmi-ext200 Hdmi Extender Over Ip 393 Ft

Product Description

The LIONBEAM lb-hdmi-ext200 is an HDMI-over-IP extender that converts a full HD 1080p HDMI signal into a standard network signal for transmission over CAT5, CAT5e, or CAT6 cable. The unit supports transmission distances up to approximately 393 feet (120 meters), making it practical for distributed AV installations where a direct HDMI cable run is not feasible. A local HDMI loop-out port allows the source signal to be monitored or fed to a second display at the transmitter end without additional splitting equipment. IR pass-through support enables remote control of source devices from the receiver location.

This extender is suited for commercial and residential AV installations where a display must be driven from a long distance using existing or new structured CAT6 cabling infrastructure. Typical applications include conference rooms, digital signage, classrooms, and multi-zone display setups. The transmitter accepts a standard HDMI source such as a media player, set-top box, or computer, and the receiver outputs to any HDMI-compatible display. Installation and configuration are handled by AV integrators or low-voltage technicians.

Key Features

• Extends HDMI up to 393 feet over a single CAT5, CAT5e, or CAT6 cable
• Supports full HD 1080p video resolution
• HDMI loop-out port at the transmitter for local display monitoring
• IR pass-through for remote control of source devices from the display end
• Uses standard network infrastructure cabling to reduce installation cost

Compatibility

Designed as an OEM-style extender solution compatible with any HDMI 1080p source device and HDMI-equipped display when connected via CAT5, CAT5e, or CAT6 structured cabling.

Installation Notes

Installation is typically performed by a licensed low-voltage or AV technician. Power down all source devices and displays before connecting or disconnecting HDMI or IR cables. Ensure the CAT6 cable run does not exceed the rated 393-foot transmission limit, and avoid running low-voltage signal cables parallel to high-voltage AC wiring for extended distances to reduce interference. Follow local low-voltage wiring codes when routing cables through walls or plenum spaces.

Technical Specifications

• Maximum Transmission Distance: 393 feet (120 meters)
• Video Resolution: 1080p full HD
• Cable Type: CAT5, CAT5e, or CAT6
• Loop-Out: HDMI local output at transmitter
• IR Pass-Through: Yes

Standard Information

• Brand: LIONBEAM
• Manufacturer Part Number: lb-hdmi-ext200
