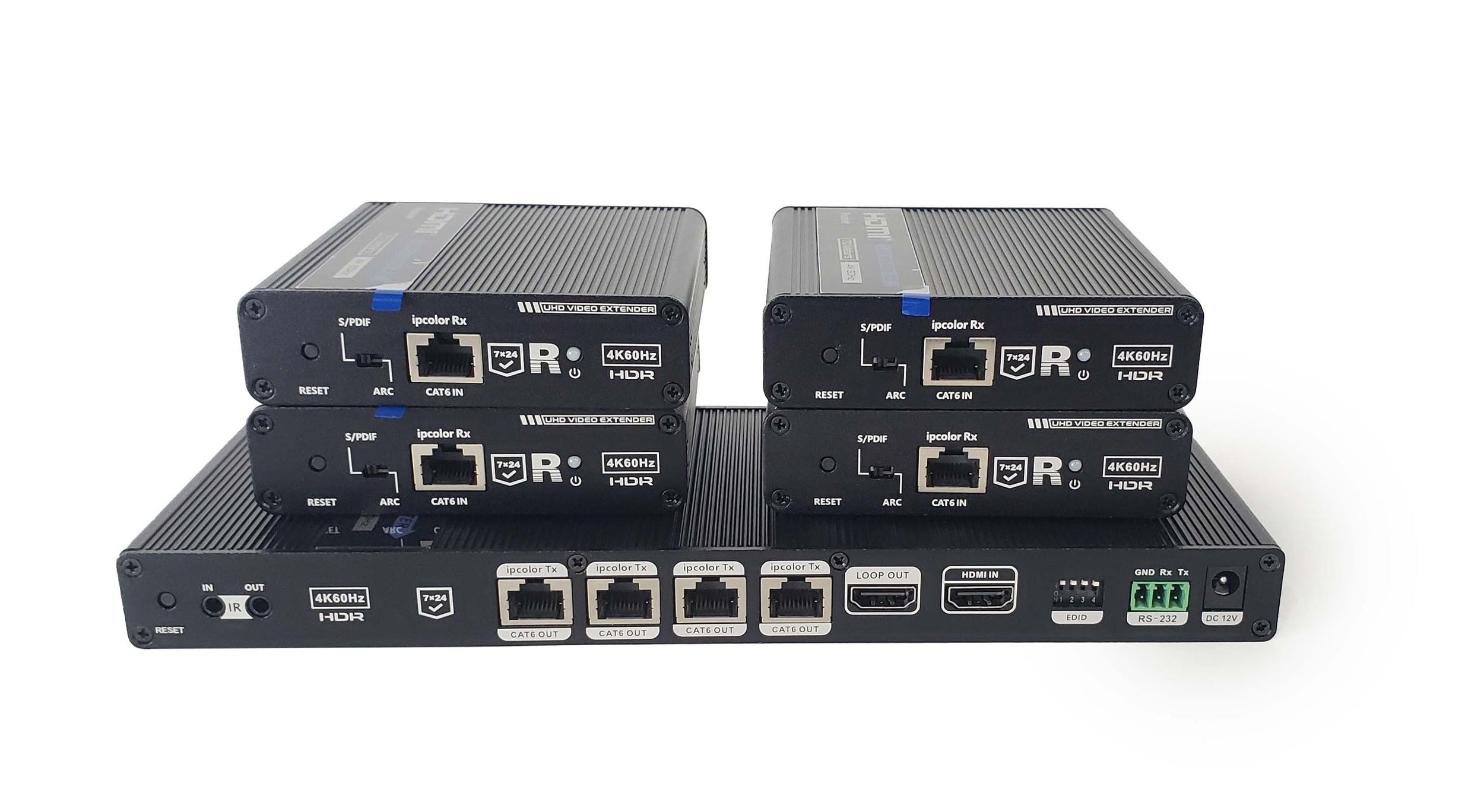

Lionbeam lb-hdmi-1x4pro2 Hdmi 1x4 Extender 4K Cat6 229ft

Product Description

The LIONBEAM lb-hdmi-1x4pro2 is a 1-input, 4-output HDMI extender and splitter kit designed for professional AV distribution installations. It accepts one HDMI source signal and transmits four identical outputs over Cat6 cable runs up to 229 feet. The unit supports 4K resolution at 60Hz, making it suitable for high-resolution display environments. Bi-directional IR passback allows remote control signals to travel from the display end back to the source location, and RS-232 control support enables integration with third-party control systems. EDID management is included for reliable source-to-display handshaking across all outputs.

This extender kit is intended for commercial and institutional AV installations where a single source must feed multiple displays across longer cable runs. Typical applications include broadcast studios, multimedia classrooms, conference rooms, digital signage arrays, and transit control environments. The Cat6 infrastructure requirement makes it straightforward to deploy in buildings already wired with structured cabling. AV integrators and low-voltage technicians are the primary installers for this type of equipment.

Key Features

• 1 HDMI input distributed to 4 identical HDMI outputs over Cat6 cabling
• Extends signal up to 229 feet per output run
• Supports 4K resolution at 60Hz for high-resolution display environments
• Bi-directional IR passback for remote control of source equipment from display locations
• RS-232 control port for integration with third-party control systems
• EDID management for reliable display handshaking across all output channels

Compatibility

Designed as an OEM-style replacement and integration component for commercial AV distribution systems requiring HDMI signal extension and splitting over structured Cat6 cabling infrastructure.

Installation Notes

Installation should be performed by a licensed low-voltage technician or qualified AV integrator familiar with HDMI signal distribution and structured cabling standards. Power down all source and display equipment before making signal connections. Use quality Cat6 or Cat6a cable with proper terminations to ensure signal integrity at maximum run lengths. Verify EDID settings on the unit match the capabilities of the connected displays before commissioning the system.

Technical Specifications

• Input: 1x HDMI
• Outputs: 4x HDMI over Cat6
• Maximum Extension Distance: 229 feet
• Maximum Resolution: 4K at 60Hz
• IR Support: Bi-directional IR passback
• Control: RS-232
• Cable Type Required: Cat6
• EDID Management: Yes

Standard Information

• Brand: LIONBEAM
• Manufacturer Part Number: lb-hdmi-1x4pro2
