Lionbeam lb-hdmi-1x2pro2 Hdmi 1x2 Extender 4K Cat6 229ft

Product Description

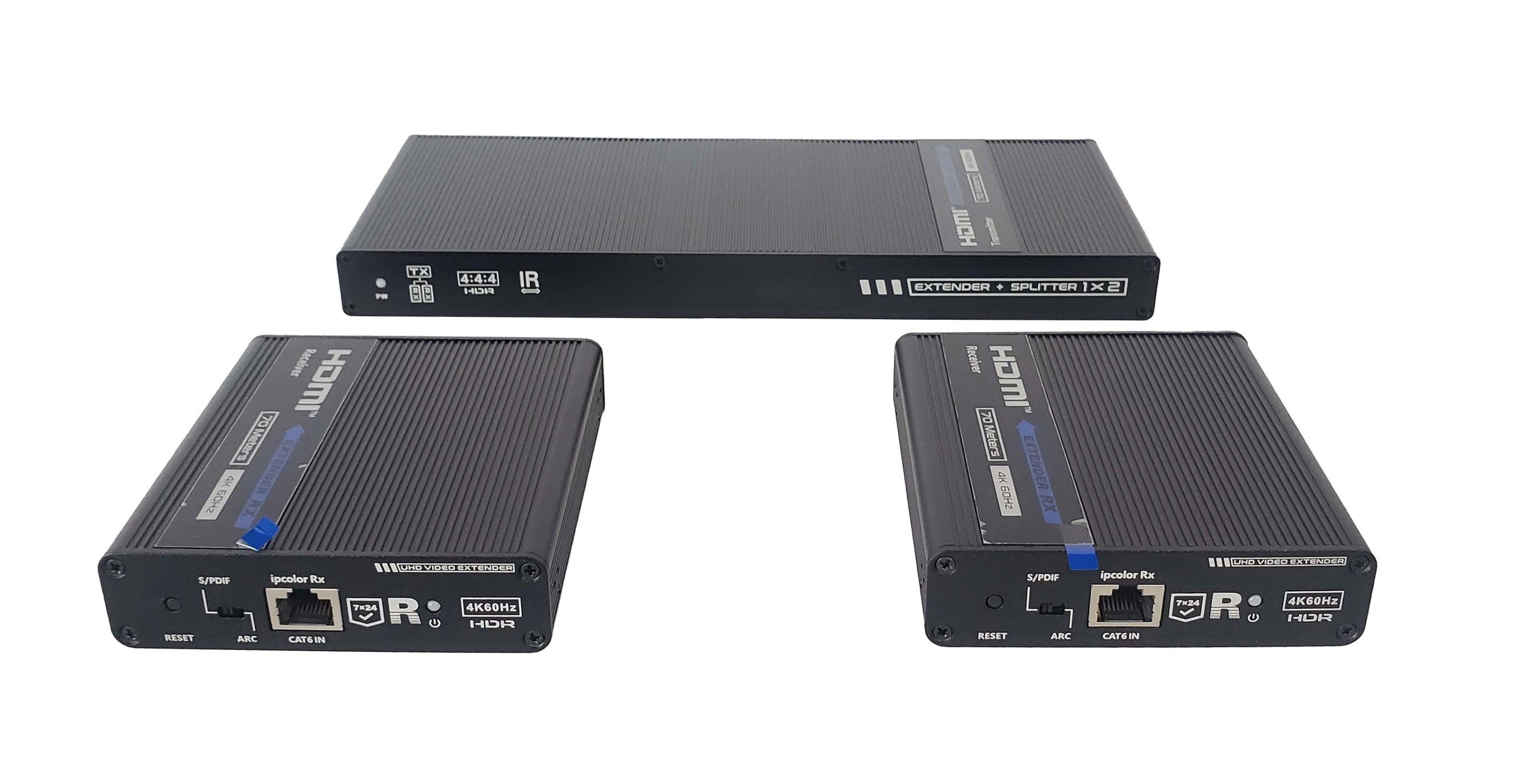

The LIONBEAM lb-hdmi-1x2pro2 is a 1-input, 2-output HDMI extender and splitter kit designed for professional AV distribution over Cat6 cabling. It accepts a single HDMI source and distributes identical signals to two remote displays, extending that signal up to 229 feet from the transmitter. The unit supports 4K resolution at 60Hz, making it suitable for high-resolution display installations in commercial and institutional environments. Bi-directional IR passback and RS-232 control are built in, allowing system integrators to manage source devices remotely from the display end without running additional control cabling.

This extender kit is designed for applications where a single source must feed two displays simultaneously over structured Cat6 cabling runs. Typical deployments include studios, multimedia classrooms, rail transit control rooms, digital signage installations, and conference room AV systems. The integrated EDID management ensures the source device receives consistent handshake data regardless of connected display characteristics, reducing compatibility issues during commissioning.

Key Features

• Distributes 1 HDMI input to 2 identical HDMI outputs over Cat6 cabling
• Extends signal up to 229 feet from transmitter to receiver
• Supports 4K resolution at 60Hz
• Bi-directional IR passback for remote source control from the display location
• RS-232 control port for integration into larger AV control systems
• Integrated EDID management for consistent source handshaking

Compatibility

Designed as an OEM-style replacement and general-use extender kit compatible with HDMI sources and displays over Cat6 structured cabling infrastructure in commercial and institutional AV installations.

Installation Notes

Installation is typically performed by a licensed AV integrator or low-voltage technician. Power down all connected source and display equipment before connecting or disconnecting the transmitter and receiver units. Use terminated Cat6 or Cat6a cabling within the rated distance to ensure signal integrity at 4K60Hz. RS-232 and IR connections should be verified against the control system wiring diagram before powering the kit on.

Technical Specifications

• Input Count: 1
• Output Count: 2
• Maximum Extension Distance: 229 feet over Cat6
• Maximum Resolution: 4K at 60Hz
• Control: Bi-directional IR passback, RS-232
• EDID Management: Yes
• Cable Type Required: Cat6

Standard Information

• Brand: LIONBEAM
• Manufacturer Part Number: lb-hdmi-1x2pro2
