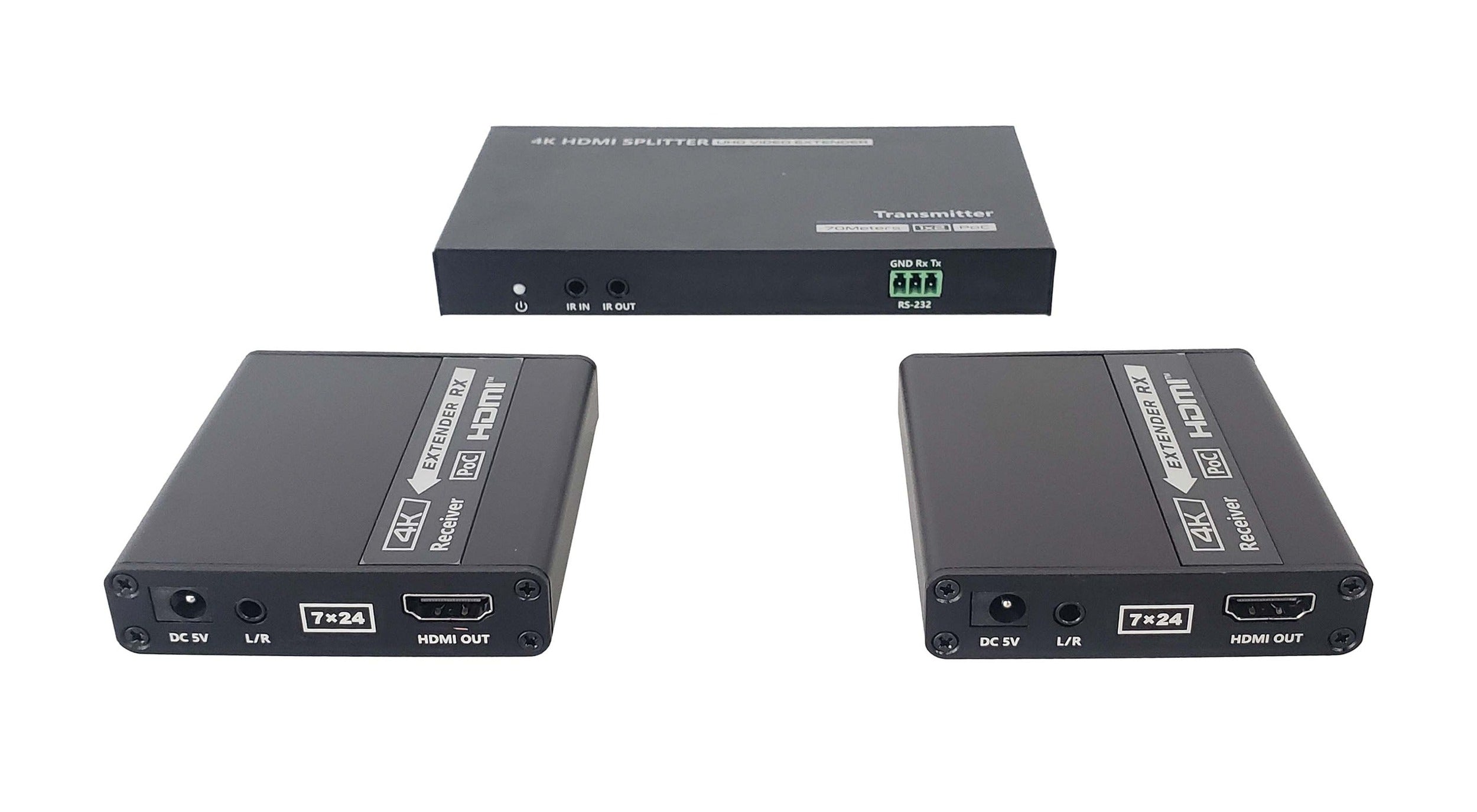

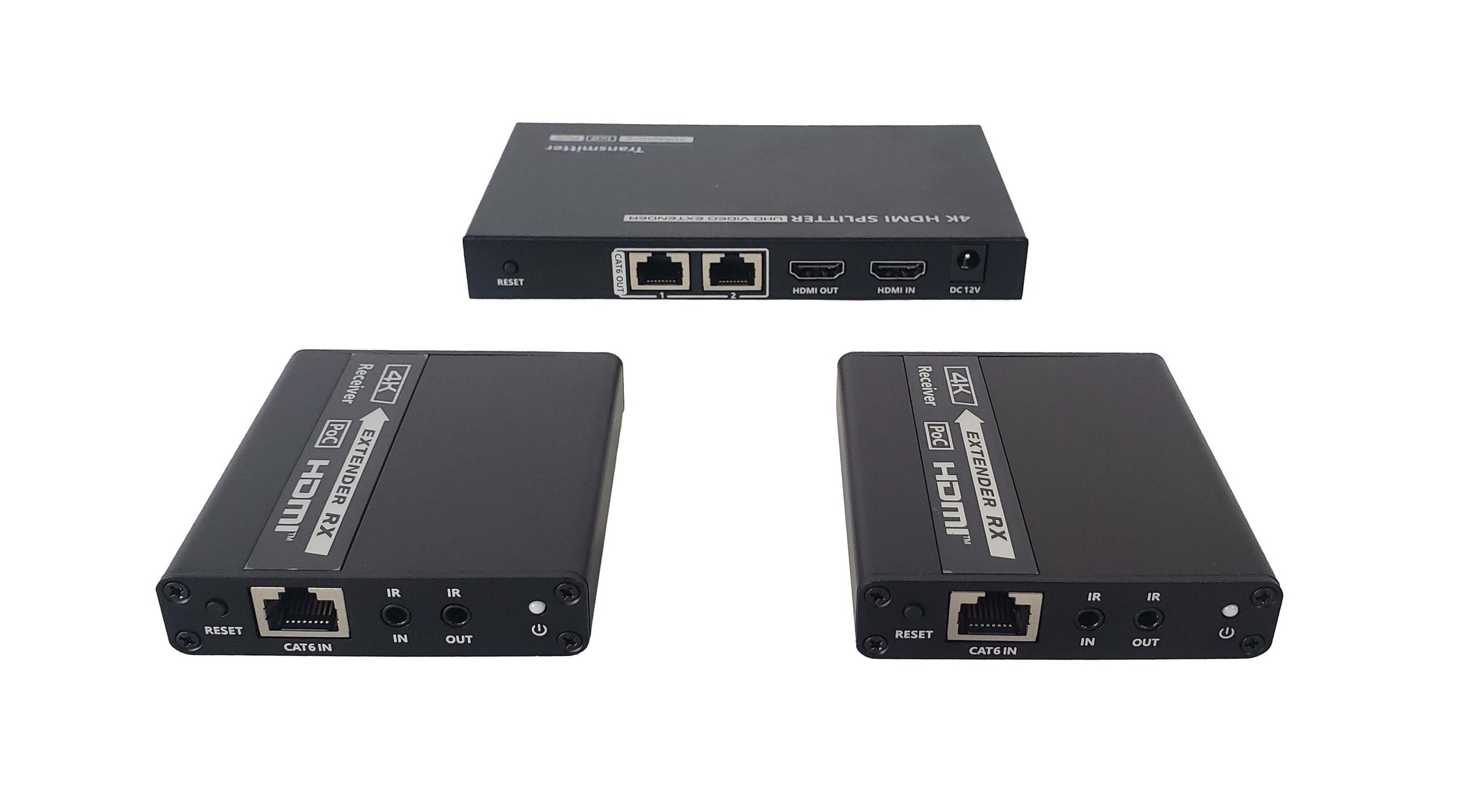

Lionbeam lb-hdmi-1x2h Hdmi Extender Kit 1x2 4K Poc

Product Description

The LIONBEAM lb-hdmi-1x2h is a 1x2 HDMI extender kit designed to distribute a single HDMI source signal to two displays over standard Cat cable using Power over Cable (PoC) technology. At 4K resolution, the kit extends signal up to 131 feet. At 1080P, it reaches up to 230 feet. Built-in EDID management ensures the source device correctly identifies the connected displays, maintaining stable handshake and consistent signal output. AV integrators and low-voltage technicians install this kit in commercial AV distribution, digital signage, conference rooms, and similar multi-display environments where long cable runs are required.

The lb-hdmi-1x2h is suited for installations where one HDMI source must feed two separate screens simultaneously. Typical applications include boardrooms, classrooms, retail display walls, and control rooms. The PoC feature simplifies deployment by allowing the transmitter and receiver units to draw power through the Cat cable itself, reducing the number of discrete power supplies needed at remote receiver locations. EDID support prevents common handshake failures that occur over extended runs.

Key Features

• 1x2 distribution: one HDMI source to two displays over Cat cable
• 4K resolution support with up to 131-foot range
• 1080P resolution support with up to 230-foot range
• Power over Cable (PoC) technology reduces external power supply requirements at receiver end
• EDID management maintains stable source-to-display handshake over long runs

Compatibility

Designed as an OEM-style extender kit for use with standard HDMI source devices and Cat5e or Cat6 cabling infrastructure in residential and commercial AV installations.

Installation Notes

Installation is typically performed by a low-voltage AV technician or systems integrator. Power down all source and display devices before connecting transmitter and receiver units. Use quality Cat5e or Cat6 cable with proper terminations to achieve rated distance performance. Verify EDID settings at the source device after installation to confirm proper resolution handshake.

Technical Specifications

• Configuration: 1x2 (one input, two outputs)
• Maximum Range at 4K: 131 feet
• Maximum Range at 1080P: 230 feet
• Power Method: Power over Cable (PoC)
• EDID Support: Yes

Standard Information

• Brand: LIONBEAM
• Manufacturer Part Number: lb-hdmi-1x2h
