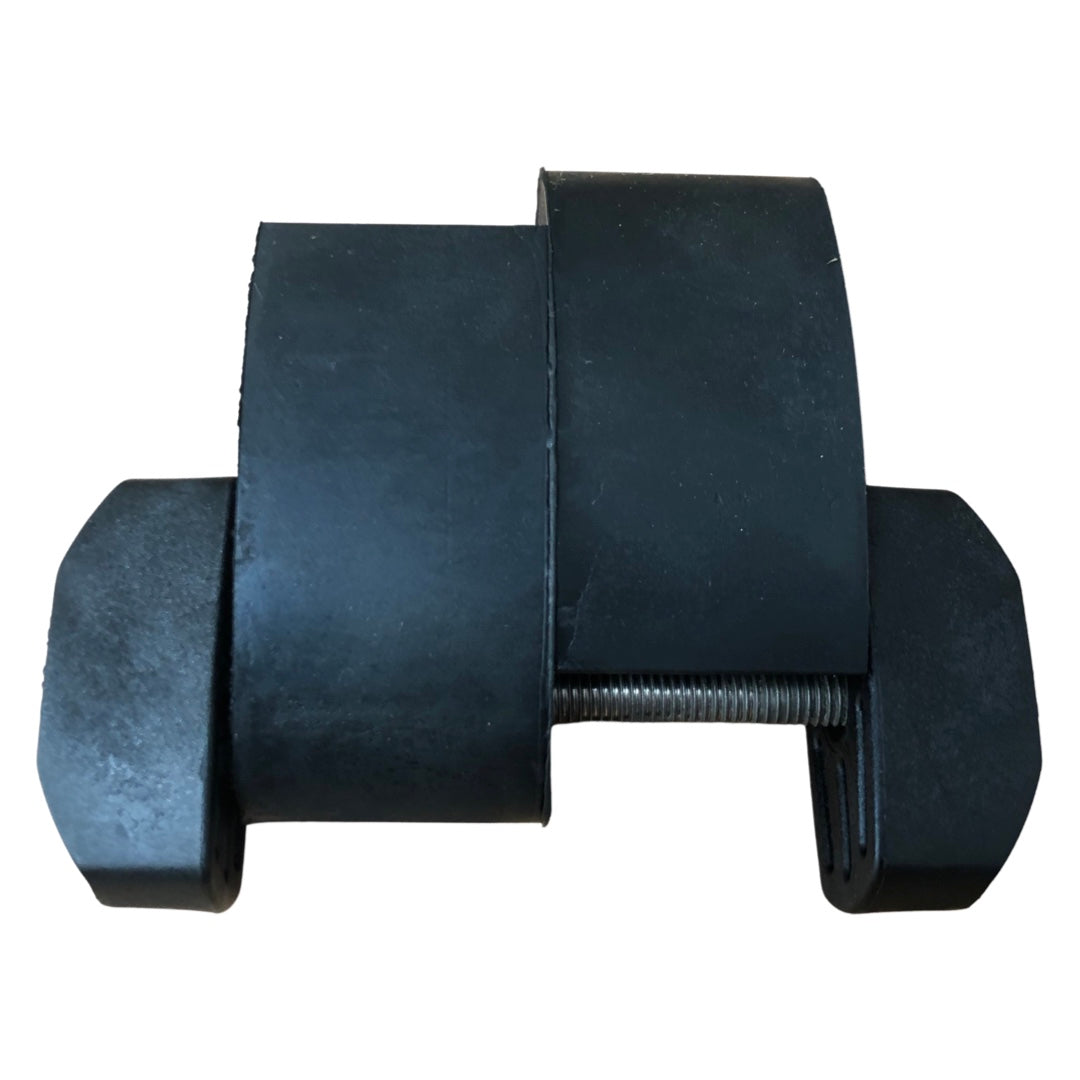

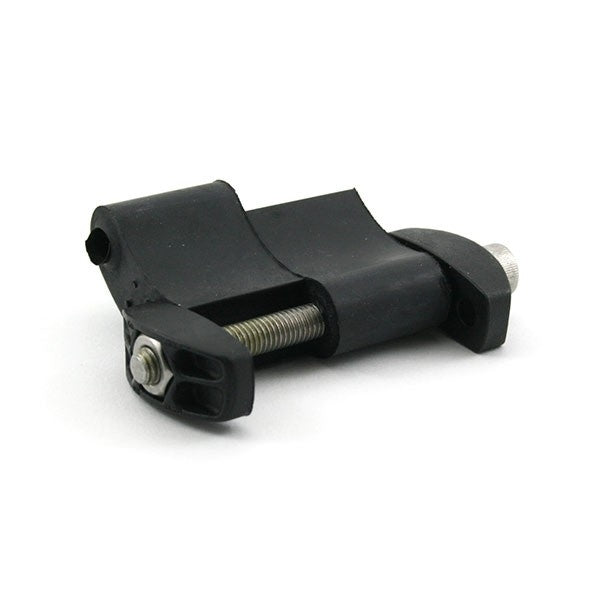

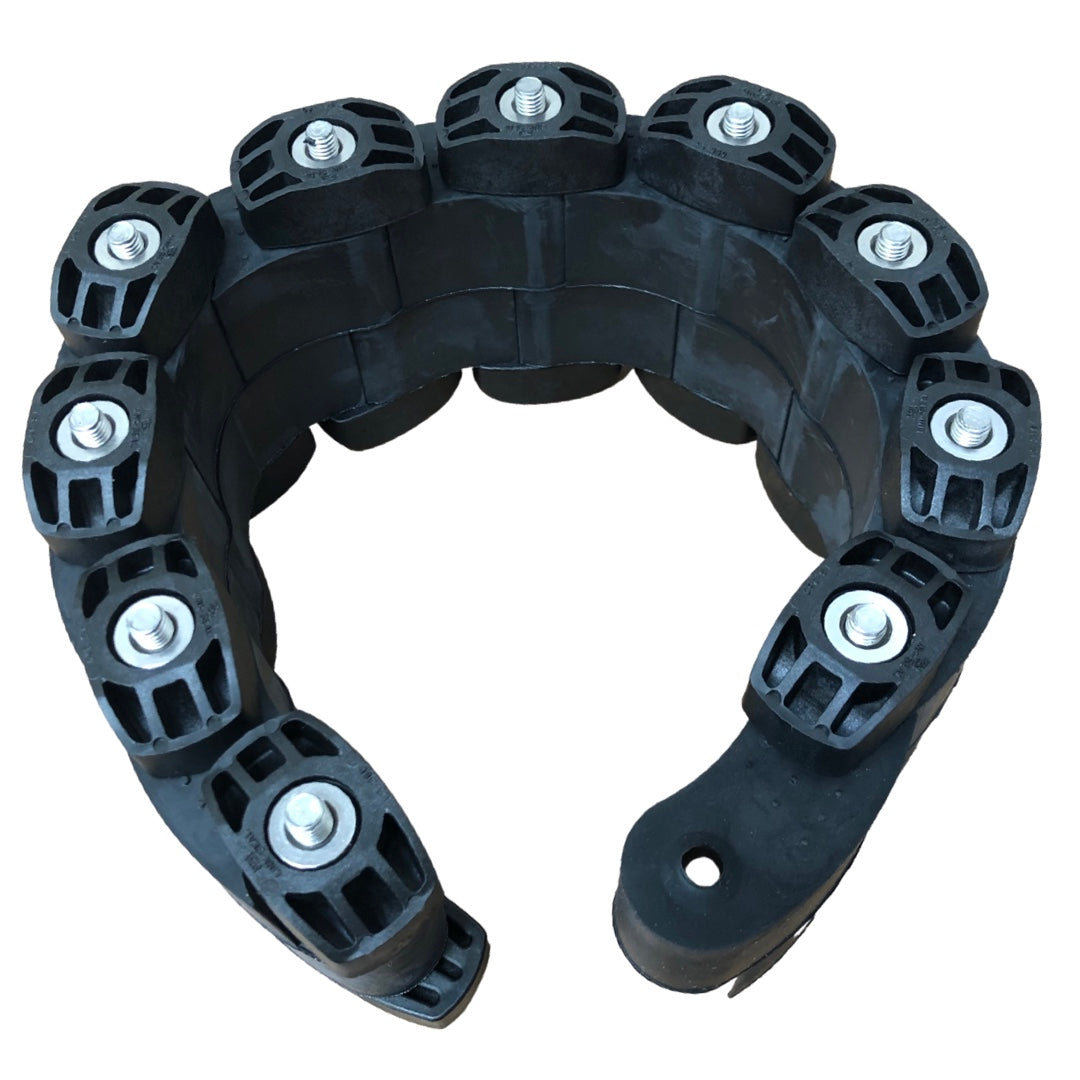

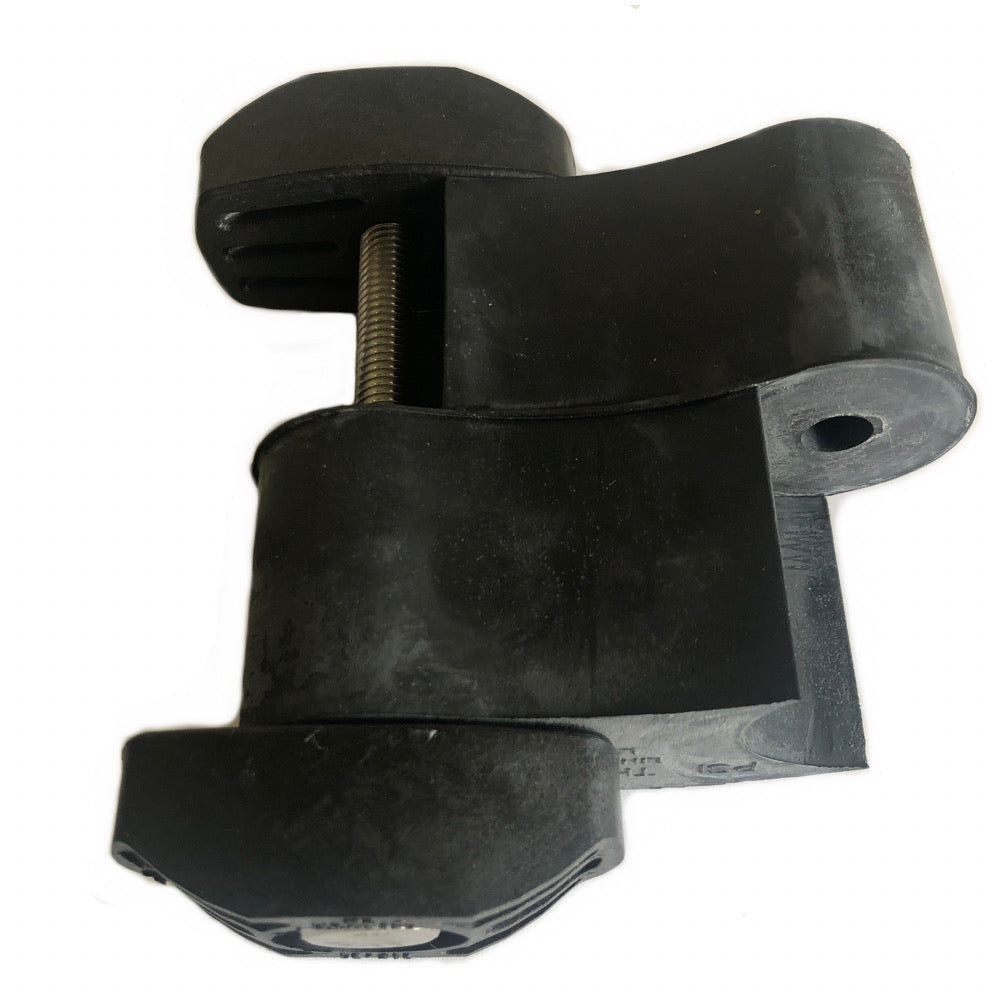

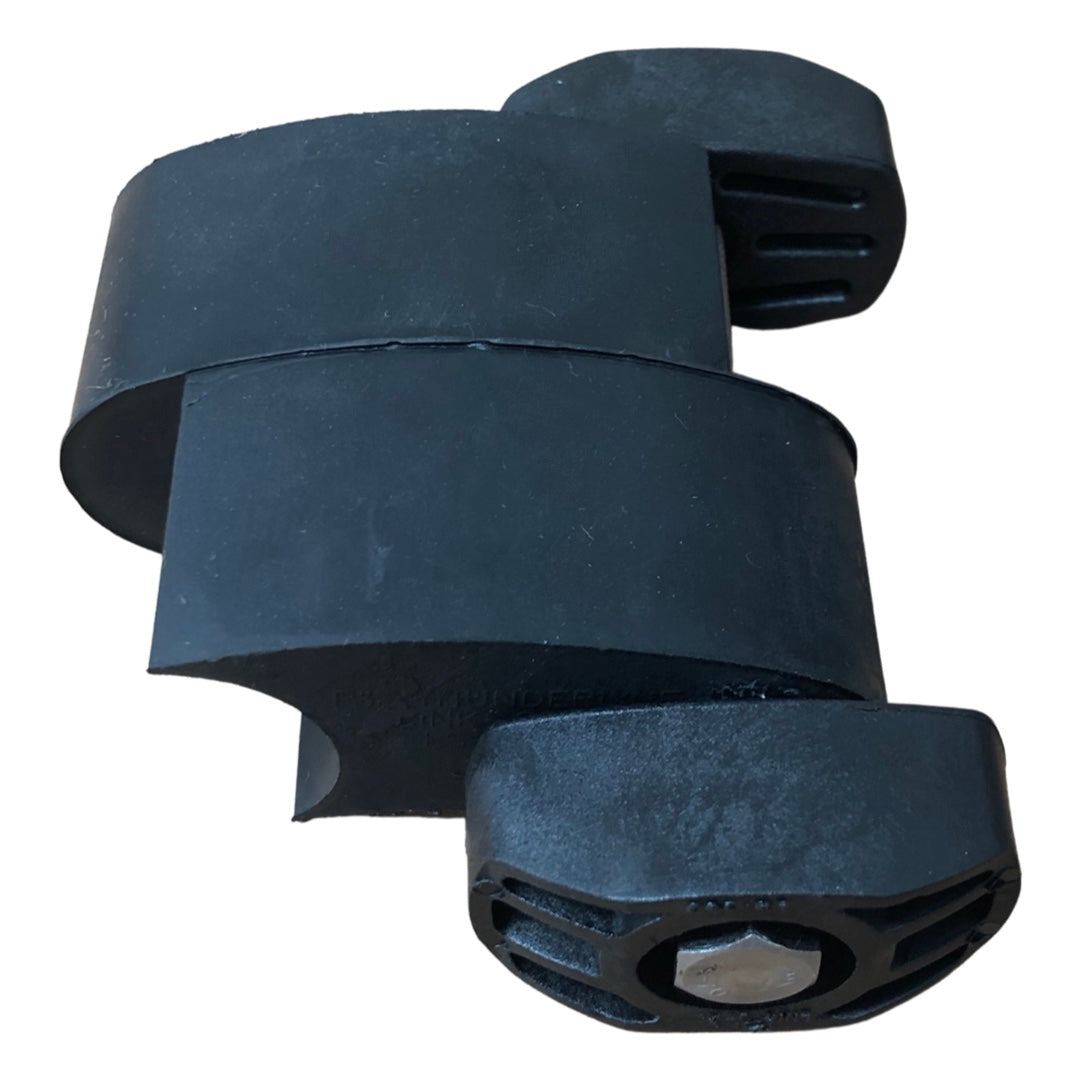

Link-Seal LS-575-S Link Seal, Stainless Steel

Product Description

LINK-SEAL LS-575-S Link Seals provide a fast and affordable way to seal pipes passing through walls, floors, and ceilings. The S series comes standard with stainless steel nuts and bolts. These seals are made with durable EPDM black rubber and handle temperatures up to 175 degrees F. They provide a hydrostatic seal, extend seal life, and protect against corrosion.

• Install in up to 75% less time compared to lead-oakum joints, hand-fitted flashings, mastics, or casing boots.
• Rated at 20 psig (40ft of head), which exceeds the performance requirements of most applications.
• Designed for use as a permanent seal. Seal elements are specially compounded to resist aging and attack from ozone, sunlight, water, and a wide range of chemicals.

Product Highlights

Modular seals for sealing cylindrical objects through concrete walls with stainless steel hardware. Designed to permanently seal pipes of any size.

Product Information

Standard Information

• Brand: LINK-SEAL
• Manufacturer Part Number: LS-575-S

Technical Specifications

• MPN: LS-575-S
• Manufacturer: Link Seal
• Material: Stainless Steel
• Seal Material: EPDM
• Hardware Material: S316 Stainless Steel and Zinc Dichromate Coated Steel
• Pressure resistant: 20psig (40 ft of head)
