Product Description

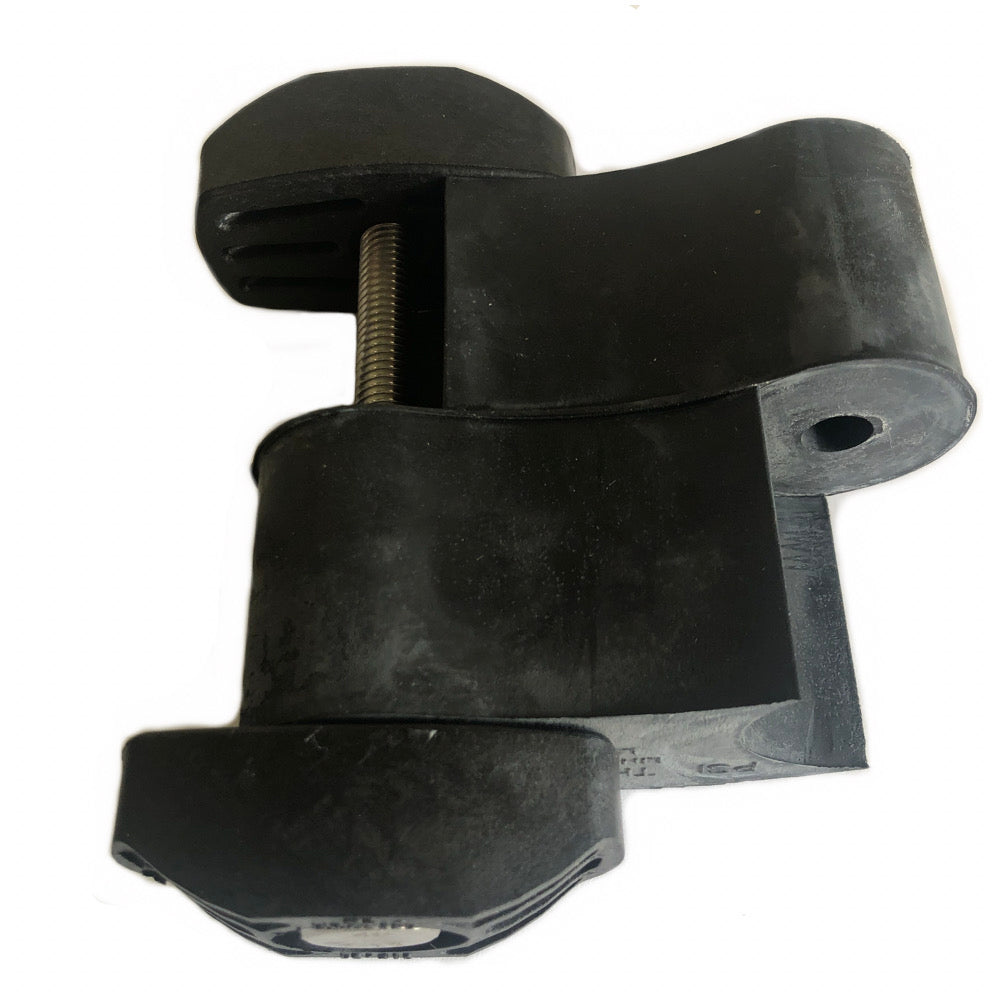

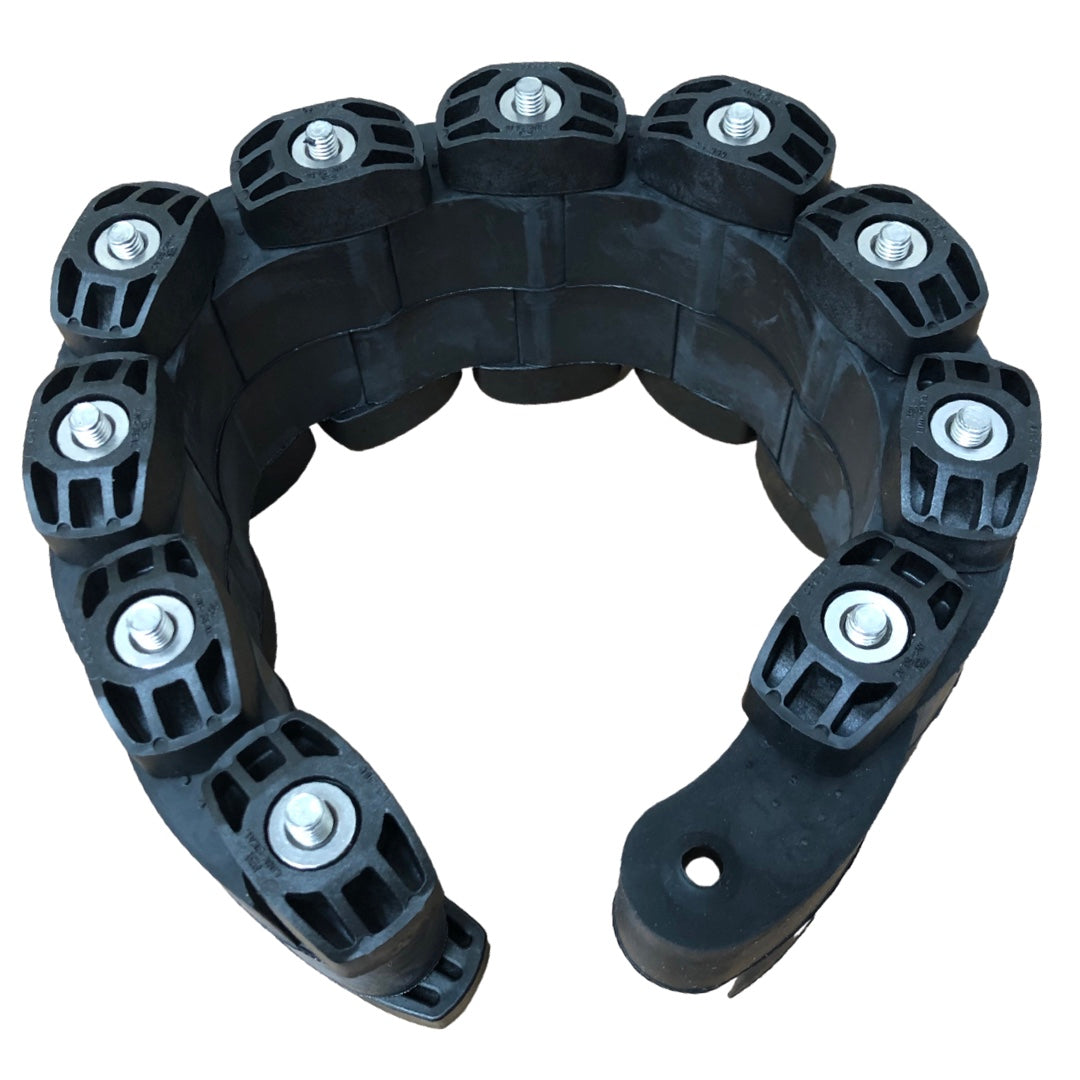

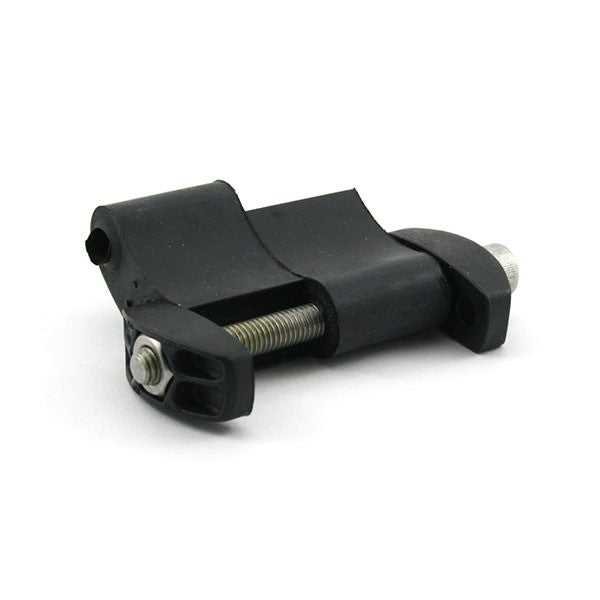

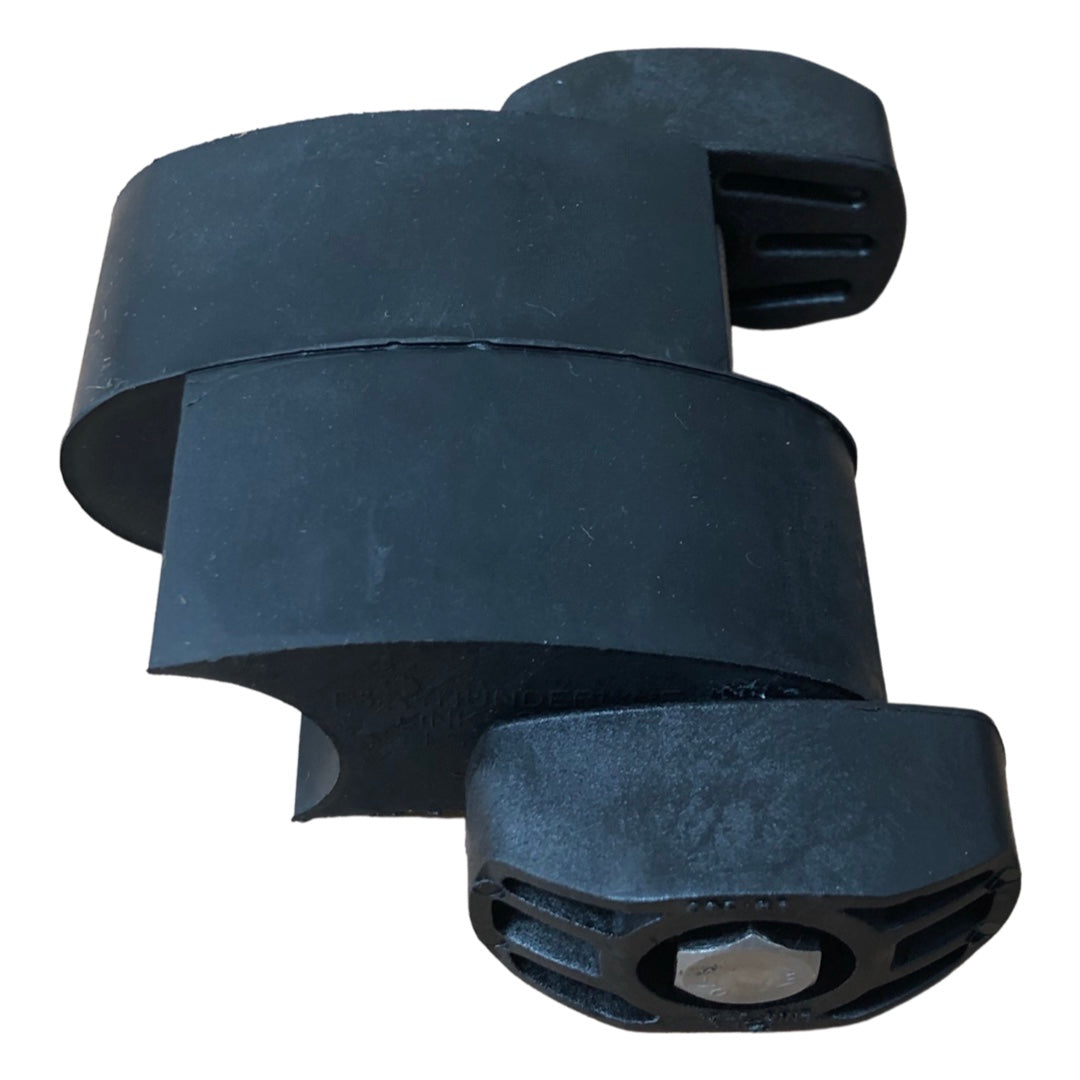

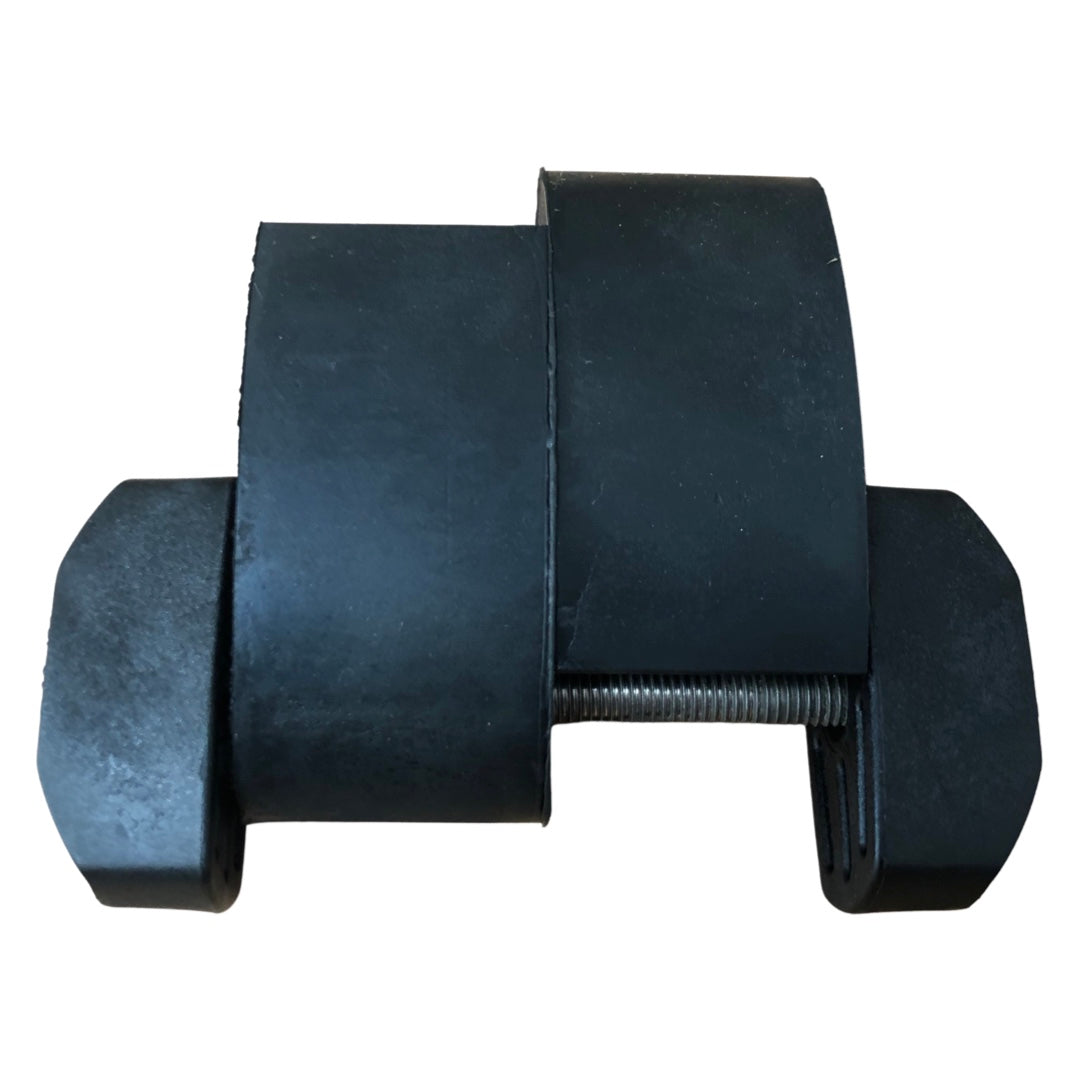

The LINK-SEAL LS-525-S Link Seals provide a fast and affordable way to seal pipes of any size passing through walls, floors, and ceilings. The S series comes standard with stainless steel nuts and bolts. These seals are made with durable EPDM black rubber material and can handle temperatures up to 175 degrees F.
- Install in up to 75% less time compared to lead-oakum joints, hand-fitted flashings, mastics, or casing boots.
- Rated at 20 psig (40ft of head), which exceeds the performance requirements of most applications.
- Designed for use as a permanent seal. Seal elements are specially compounded to resist aging and attack from ozone, sunlight, water, and a wide range of chemicals.
Product Highlights
These seals provide a positive hydrostatic seal, extend the life of the seal, save time and money, protect against corrosion, and are ISO approved.
Product Information
Standard Information
-
Brand: LINK-SEAL
-
Manufacturer Part Number: LS-525-S
Technical Specifications
-
Pressure resistant: 20psig (40 ft of head)
-
Standard Rubber: EPDM rubber (black)
-
Oil Resistant Rubber: Nitrile rubber (green)
-
Temperature resistant Rubber: Silicone rubber (gray)
-
Low Durometer for fragile pipe: EPDM rubber (blue) Shore 40 ± 5
-
Hardware Options: S316 Stainless Steel and Zinc Dichromate Coated Steel (1470 hr salt spray tested) hardware
