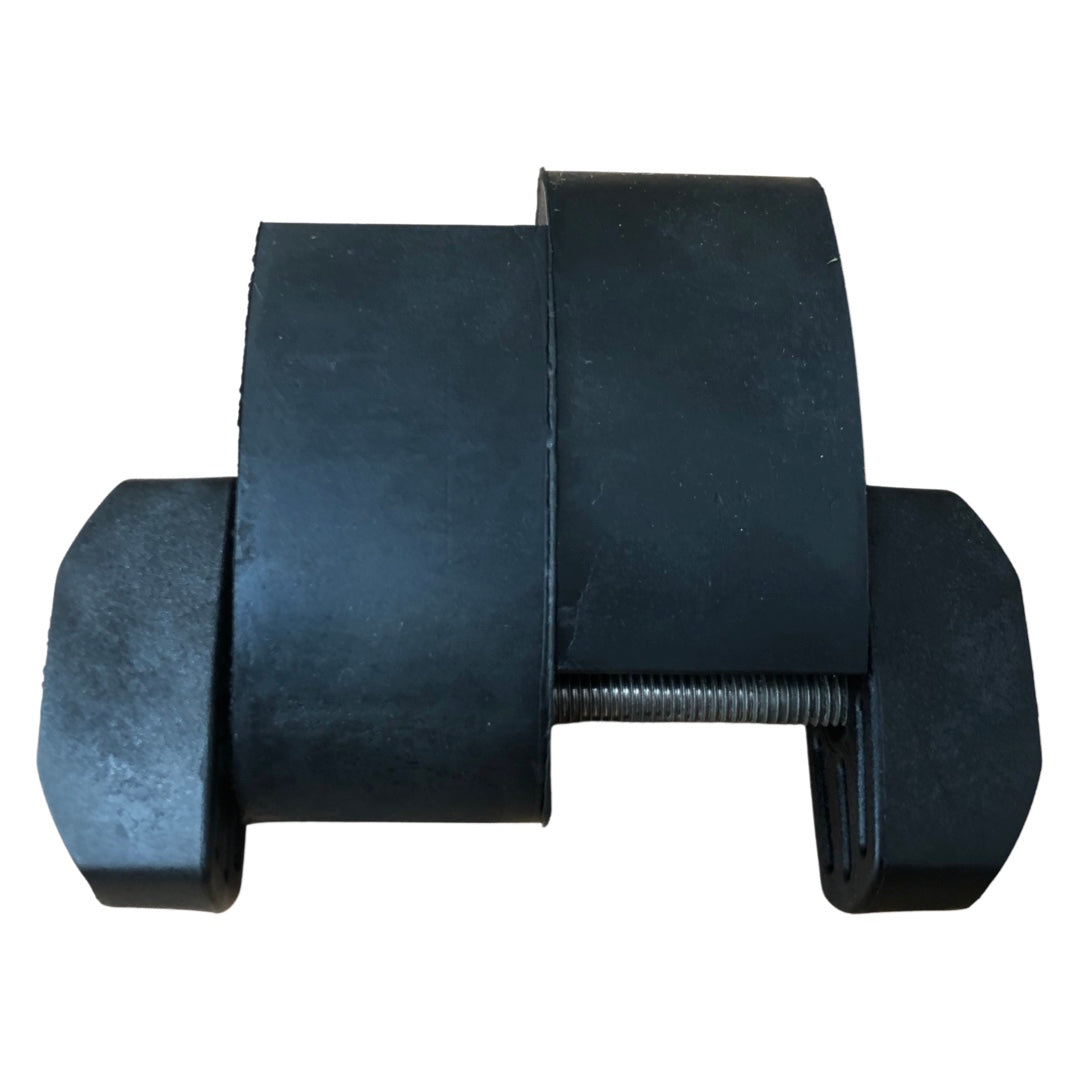

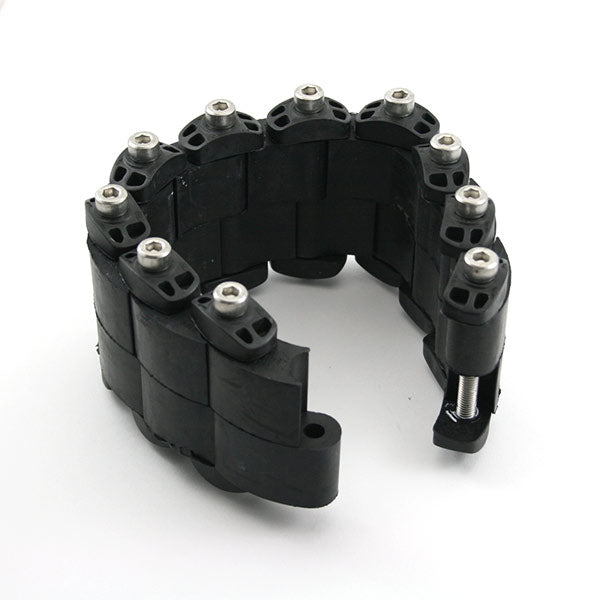

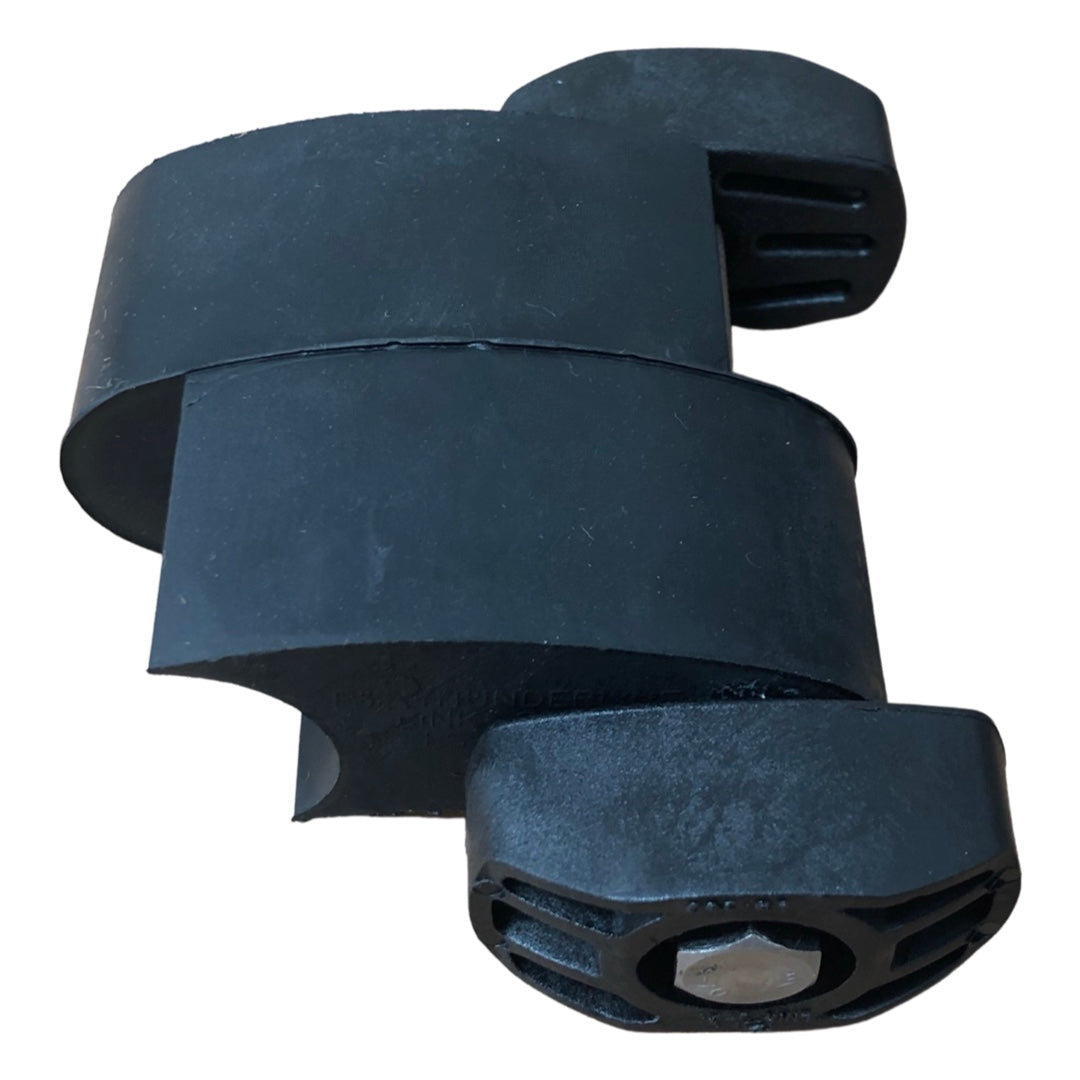

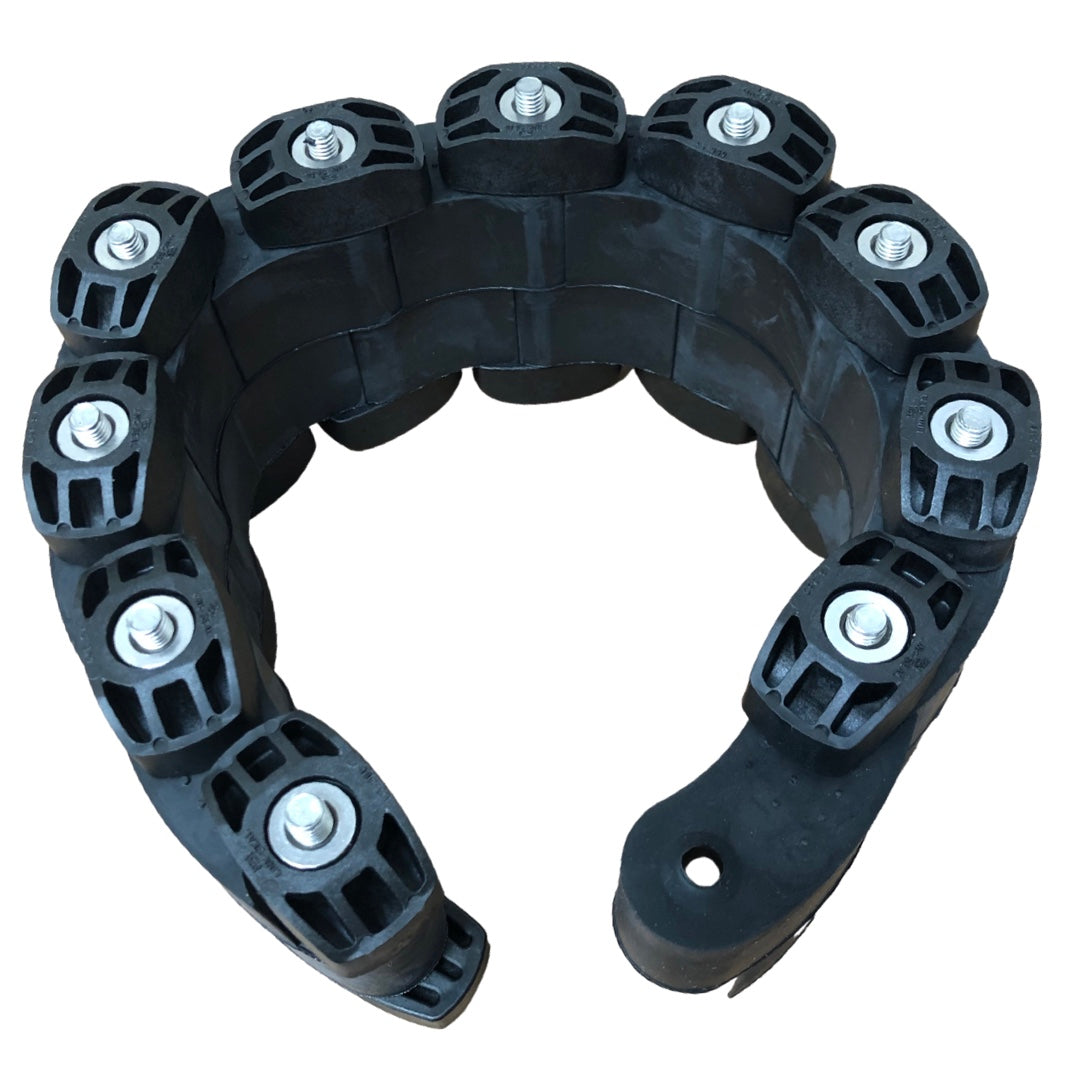

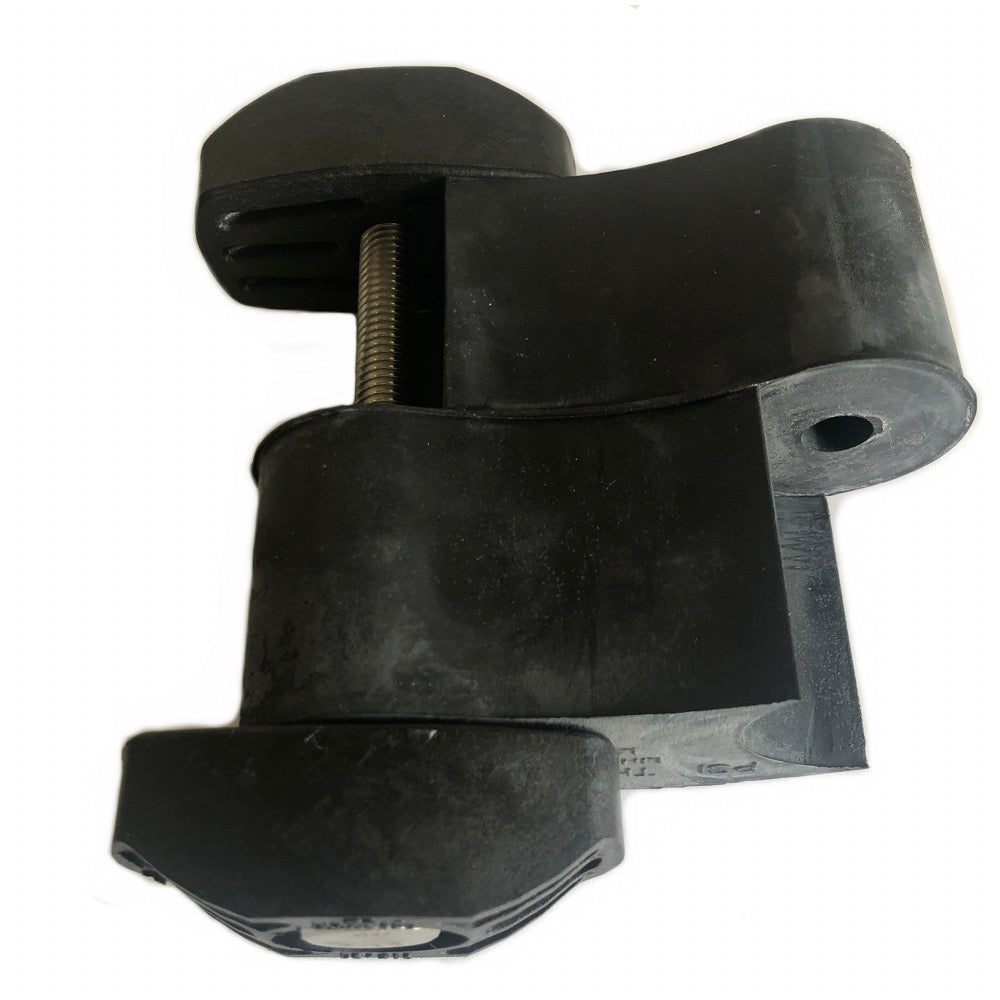

Link-Seal LS-500-S Link Seal, Stainless Steel

Product Description

The LINK-SEAL LS-500-S Link Seals provide a fast and affordable method to seal pipes of any size that pass through walls, floors, and ceilings. The S series comes standard with stainless steel nuts and bolts. These seals are made with durable EPDM black rubber and can handle temperatures up to 175 degrees F. The seals provide a positive hydrostatic seal and protect against corrosion.

• Install in up to 75% less time compared to lead-oakum joints, hand-fitted flashings, mastics, or casing boots.
• Rated at 20 psig (40ft of head), which exceeds the performance requirements of most applications.
• Designed for use as a permanent seal. Seal elements are specially compounded to resist aging and attack from ozone, sunlight, water, and a wide range of chemicals.

Product Highlights

The LS-500-S Link Seals are modular seals for sealing cylindrical objects through concrete walls, with stainless steel hardware.

Product Information

Standard Information

• Brand: LINK-SEAL
• Manufacturer Part Number: LS-500-S

Technical Specifications

• MPN: LS-500-S
• Manufacturer: Link Seal
• Material: Stainless Steel
• Seal Material: EPDM
• Hardware Material: S316 Stainless Steel and Zinc Dichromate Coated Steel
• Pressure resistant: 20psig (40 ft of head)
