Link-Seal LS-475-C Link Seal, Carbon Steel

Product Description

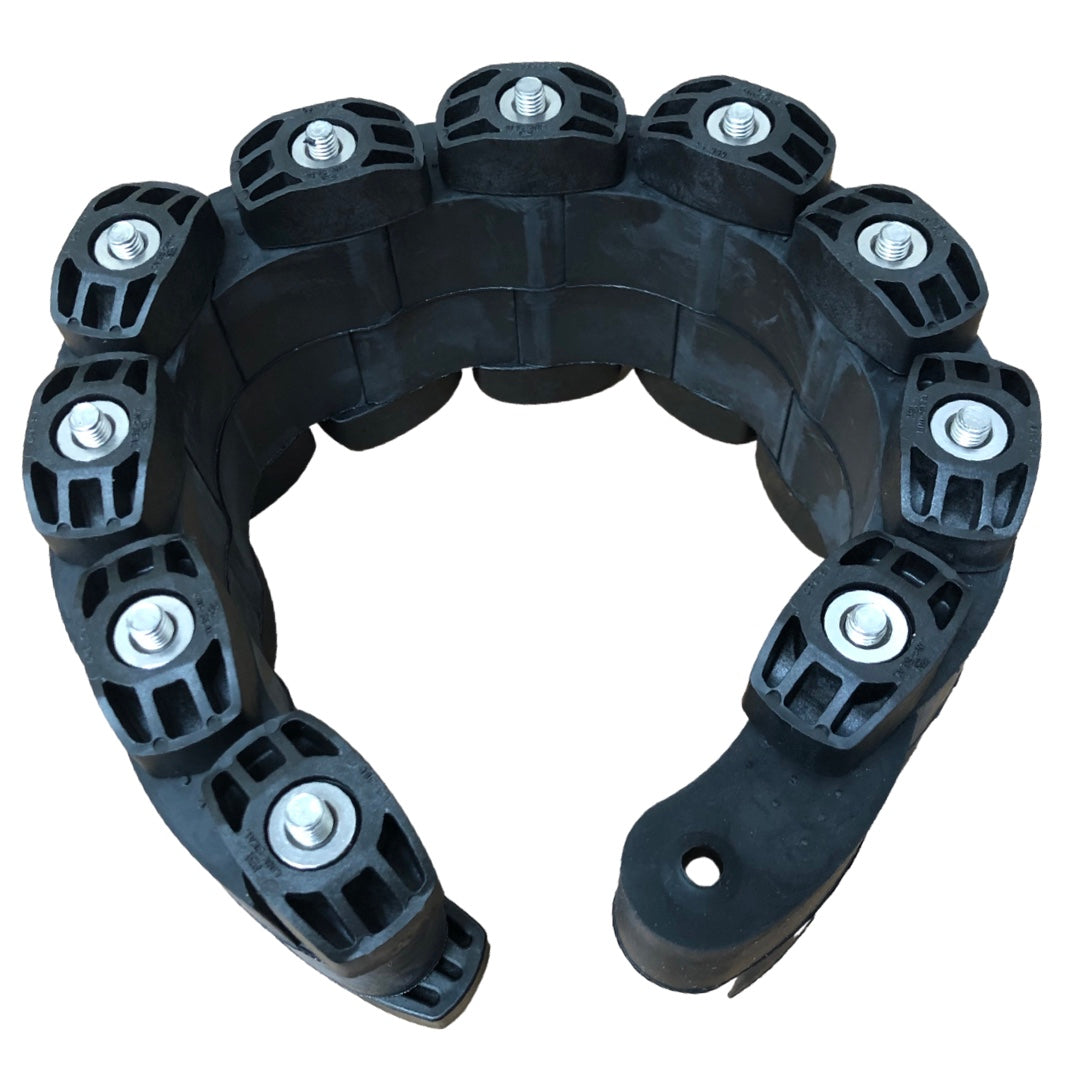

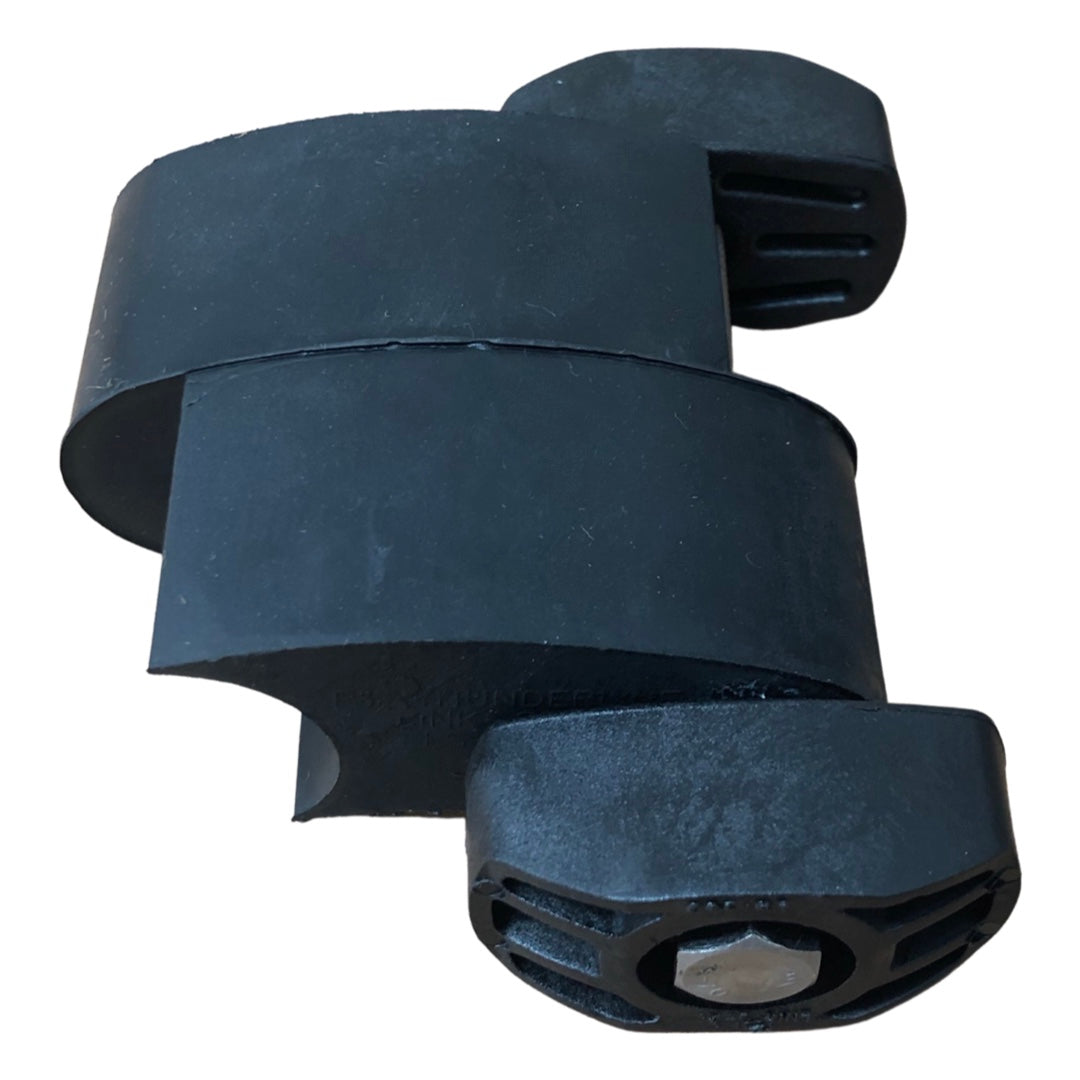

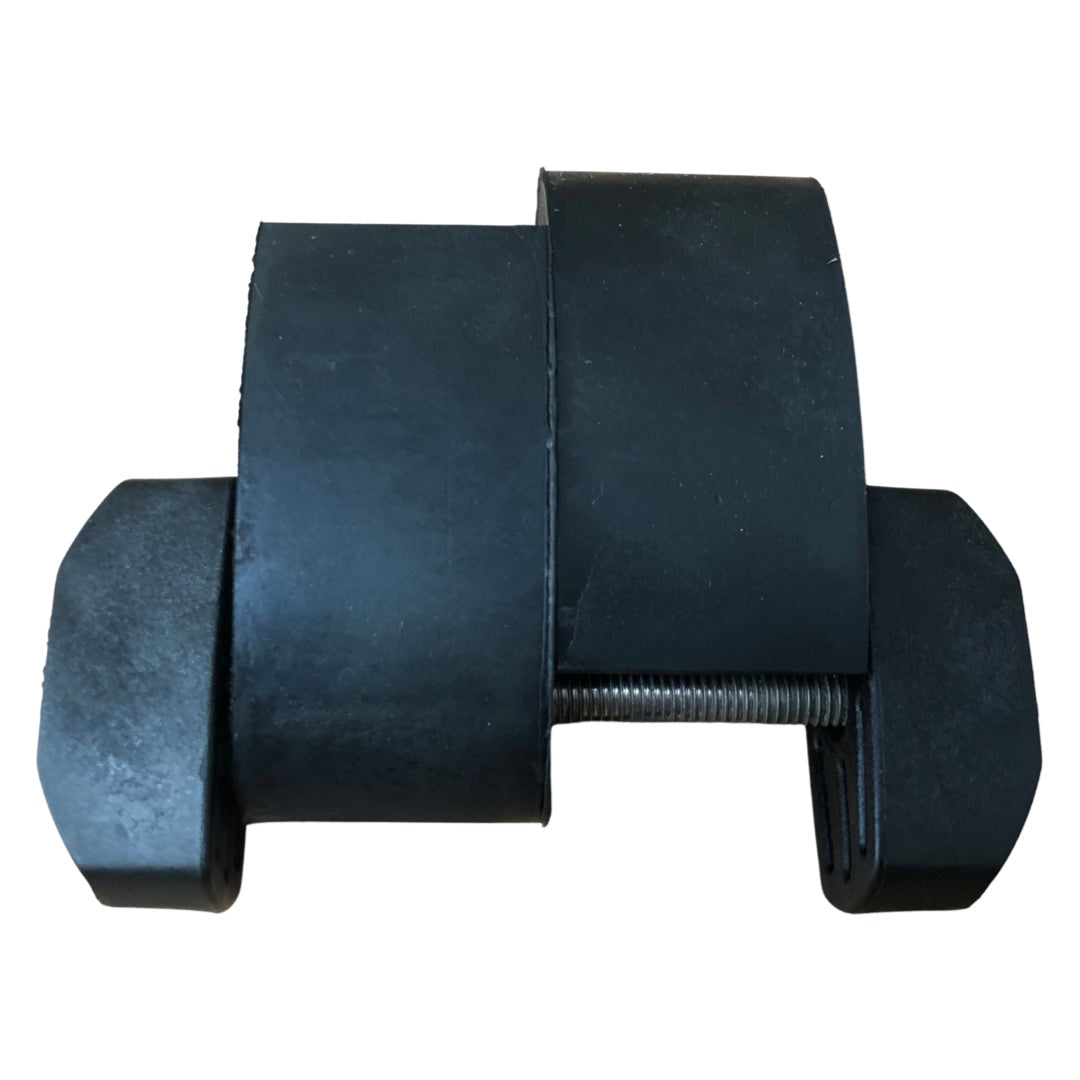

The LINK-SEAL LS-475-C Link Seals offer a swift and economical solution for sealing pipes of any dimension as they pass through walls, floors, and ceilings. The C series features carbon steel nuts and bolts. Constructed from durable EPDM black rubber, these seals withstand temperatures up to 175 degrees F. These seals provide a hydrostatic seal, extend seal life, and protect against corrosion.

• Install in up to 75% less time compared to lead-oakum joints, hand-fitted flashings, mastics, or casing boots.
• Rated at 20 psig (40ft of head), which exceeds the performance requirements of most applications.
• Designed for use as a permanent seal. Seal elements are specially compounded to resist aging and attack from ozone, sunlight, water, and a wide range of chemicals.

Product Highlights

Link Seals provide a positive hydrostatic seal, extend the life of the seal, saves time and money, protects against corrosion and is ISO approved.

Product Information

Standard Information

• Brand: LINK-SEAL
• Manufacturer Part Number: LS-475-C

Technical Specifications

• Pressure resistant: 20psig (40 ft of head)
• Standard: EPDM rubber (black)
• Oil Resistant: Nitrile rubber (green)
• Temperature resistant: Silicone rubber (gray)
• Low Durometer for fragile pipe: EPDM rubber (blue) Shore 40 ± 5
• Hardware Options: S316 Stainless Steel and Zinc Dichromate Coated Steel (1470 hr salt spray tested) hardware
