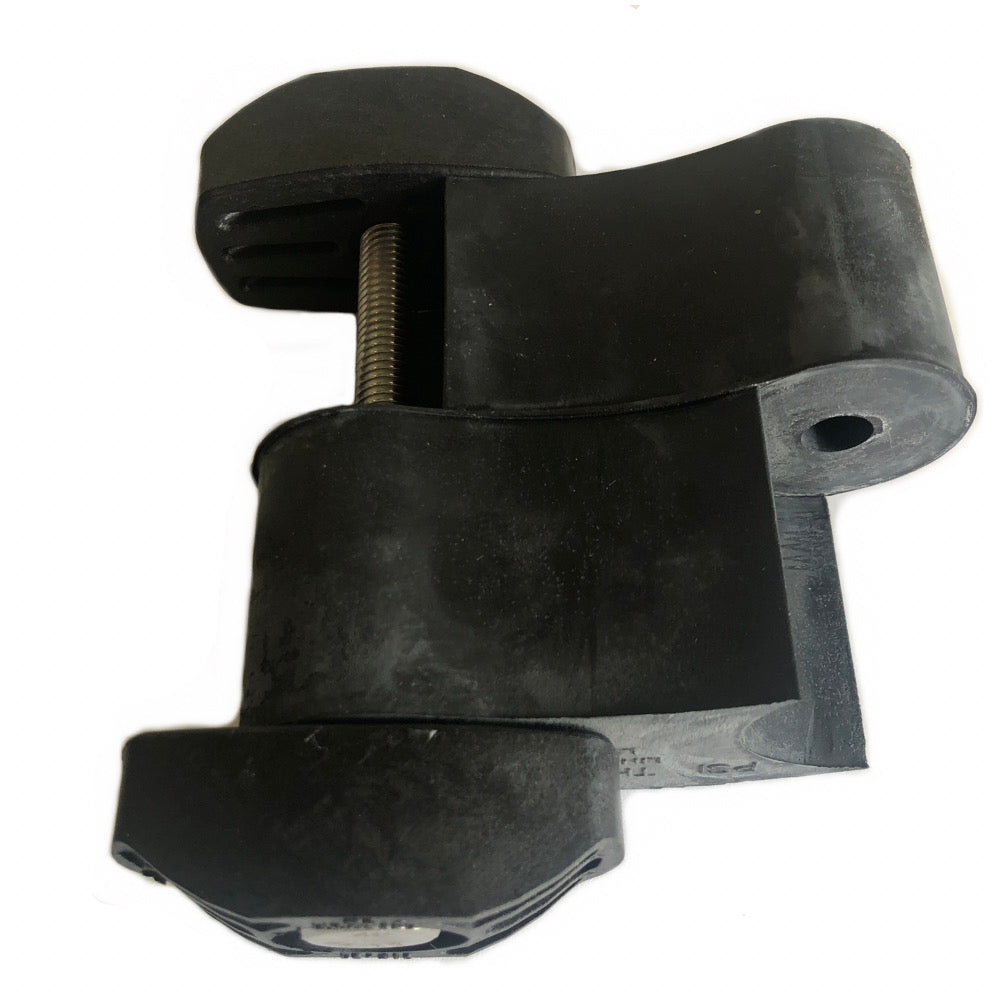

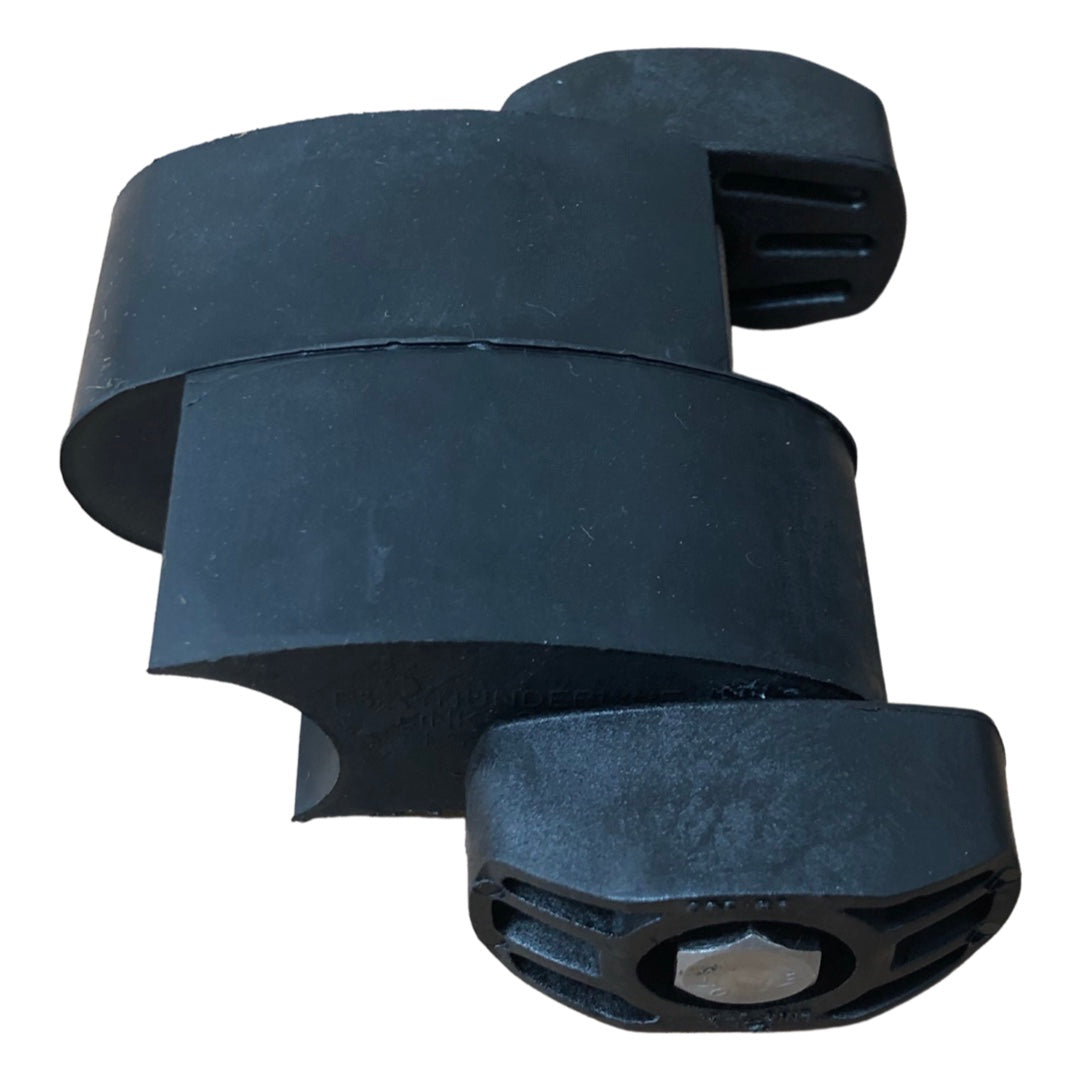

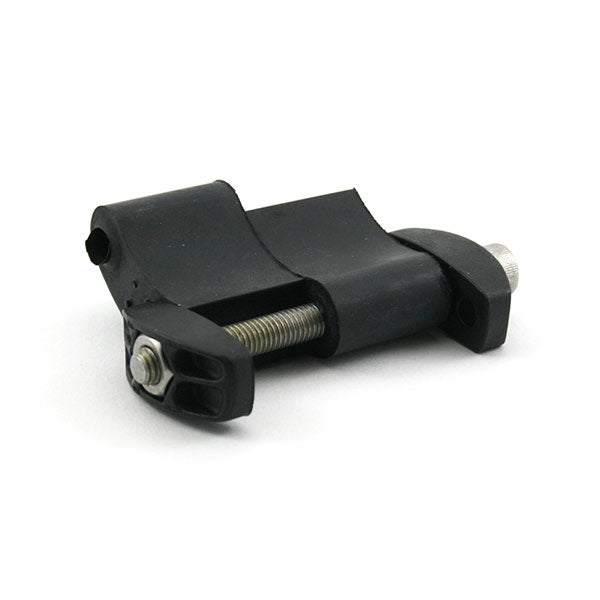

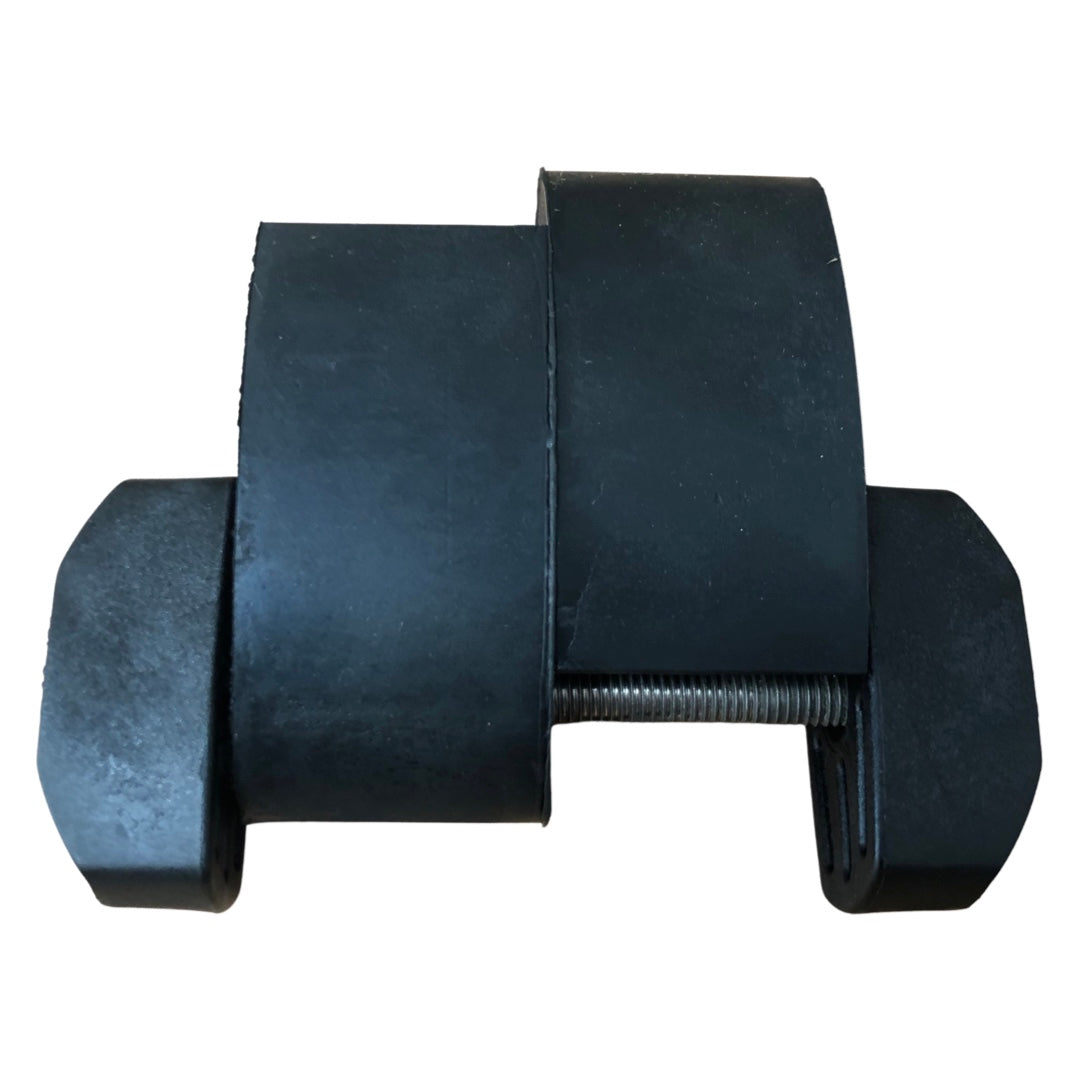

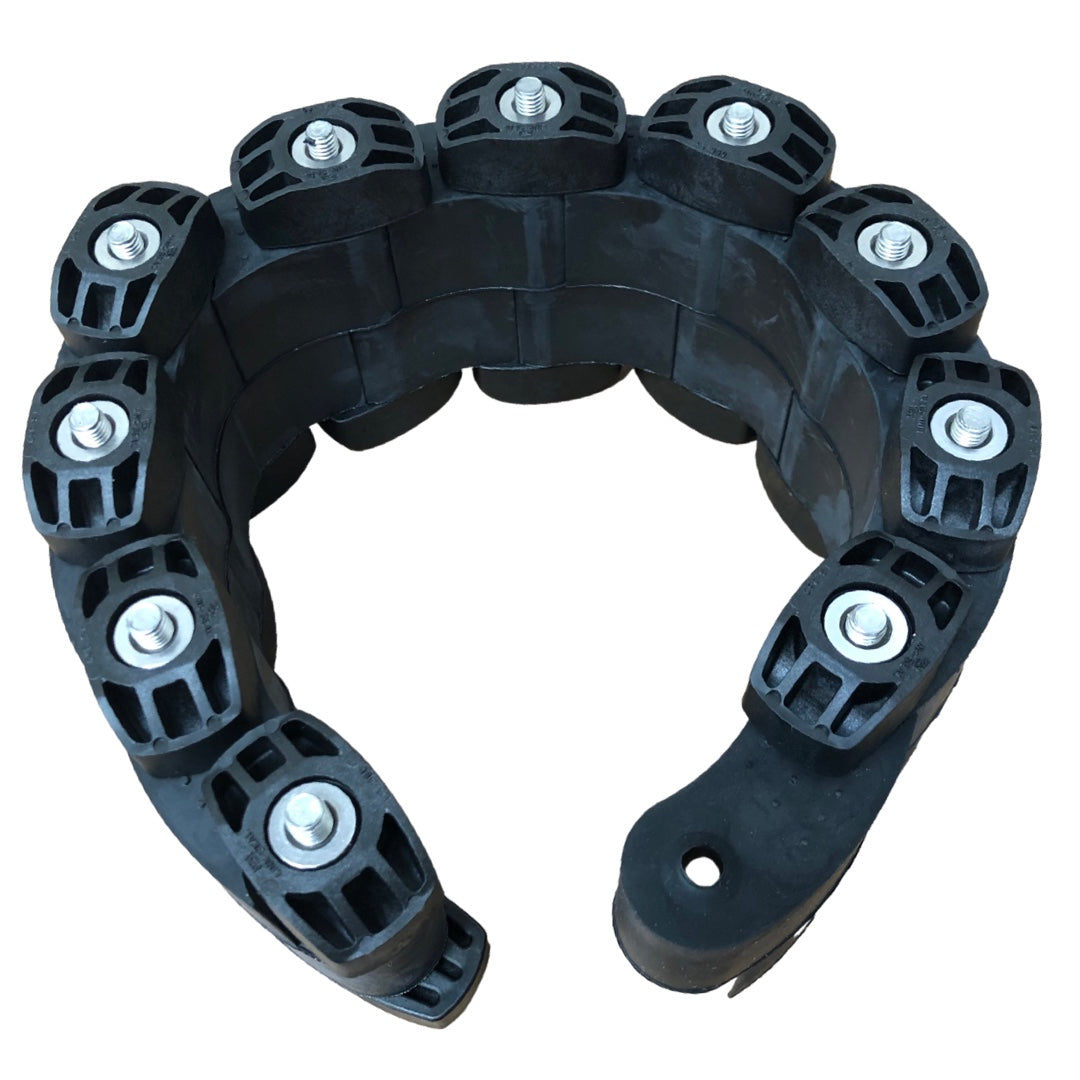

Link-Seal LS-400-S Link Seal, Stainless Steel

Product Description

LINK-SEAL LS-400-S Link Seals provide a fast and affordable way to seal pipes of any size passing through walls, floors, and ceilings. The S series comes standard with Stainless Steel nuts and bolts. These seals are made with a durable EPDM black rubber material and can handle temperatures up to 175 degrees F.

• Install in up to 75% less time compared to lead-oakum joints, hand-fitted flashings, mastics, or casing boots.
• Rated at 20 psig (40ft of head), which exceeds the performance requirements of most applications.
• Designed for use as a permanent seal. Seal elements are specially compounded to resist aging and attack from ozone, sunlight, water, and a wide range of chemicals.

Product Highlights

The LS-400-S provides a positive hydrostatic seal, extends the life of the seal, saves time and money, and protects against corrosion. Hardware is Stainless Steel.

Product Information

Standard Information

• Brand: LINK-SEAL
• Manufacturer Part Number: LS-400-S

Technical Specifications

• Pressure resistant: 20psig (40 ft of head)
• Standard EPDM rubber: (black)
• Oil Resistant Nitrile rubber: (green)
• Temperature resistant Silicone rubber: (gray)
• Low Durometer for fragile pipe EPDM rubber: (blue) Shore 40 ± 5
• Hardware Options: S316 Stainless Steel and Zinc Dichromate Coated Steel (1470 hr salt spray tested) hardware
• Sub-Category: Stainless Steel
